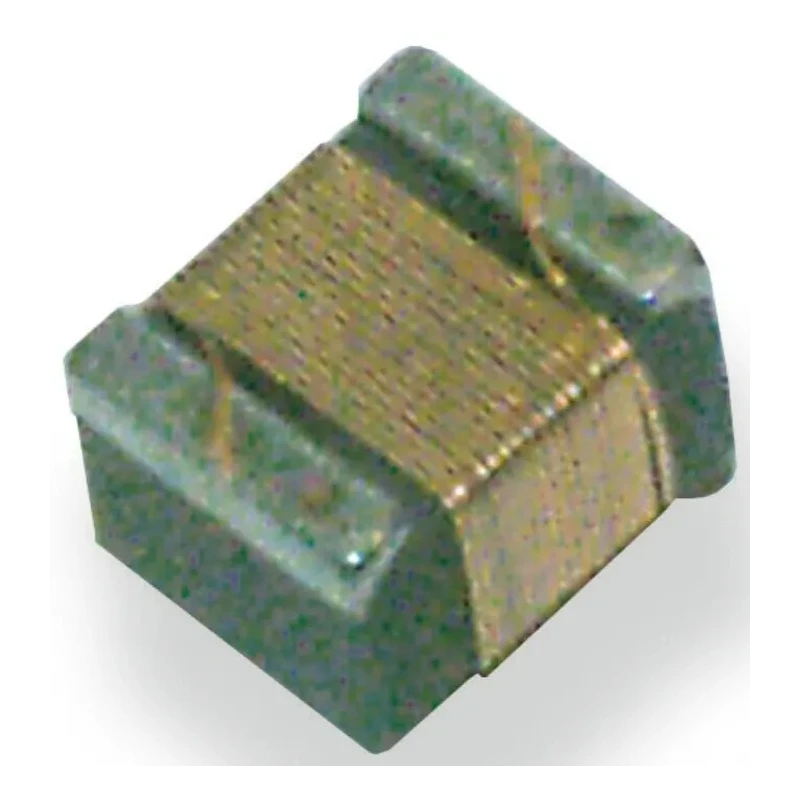

TE Connectivity 0603 Unshielded Wirewound Surface Mount Inductor 270nH ±5% 200mA Idc Q25 36501JR27JTDG
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TE Connectivity |
| Height | 1.02mm |
| Length | 1.8mm |
| Model | 36501JR27JTDG |
| Depth | 1.12mm |
| Packaging | Reel |
| Series | 3650 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 270nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 200mA |
| Pin Count | 2 |
| Maximum DC Resistance | 2.1Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 900MHz |
| Minimum Quality Factor | 25 |
| Inductor Construction | Wirewound |
Key Features
- Unshielded wirewound construction ensures reliable inductance performance.
- Inductance value of 270nH suitable for high frequency applications.
- Maximum DC current rating of 200mA for moderate current handling.
- Compact 0603 package size with 1.8mm length and 1.02mm height.
- Ferrite core material provides high magnetic permeability and stability.
- Q factor of 25 ensures low energy loss at resonant frequency.
- Maximum operating temperature of 125°C for durable operation.
- Maximum DC resistance of 2.1Ω minimizes power loss.
Product Description
TE Connectivity 36501JR27JTDG is a precise 0603 unshielded wirewound surface mount inductor designed for advanced electronic circuits requiring compact size and reliable performance. This inductor features a ferrite core offering magnetic stability and consistent inductance of 270nH with a tolerance of ±5%.
The device can safely handle a maximum DC current of 200mA, making it suitable for moderate current applications. Its wirewound construction ensures a high quality factor of 25, beneficial for filtering and tuning applications at high frequencies.
Physically, the inductor measures 1.8mm in length, 1.12mm in depth, and 1.02mm in height, conforming to the industry standard 0603 package size used in surface mount technology (SMT). It has a maximum DC resistance of 2.1Ω which helps to minimize power losses during operation.
The component is RoHS compliant, indicating its adherence to environmental safety standards. It is moulded for enhanced durability and mechanical protection. The operating temperature range extends from -40°C up to a maximum of 125°C, making it robust for harsh industrial and commercial environments.
Designed primarily for surface mount applications, the inductor is supplied on a reel to streamline automated PCB assembly and production efficiency. The ferrite core and solder termination style facilitate efficient electromagnetic compatibility and reliable solder connections.
This product is suitable for use in industrial electronics, power supply units, telecommunication devices, and various signal processing circuits requiring stable inductance characteristics in a small footprint packaging.
Unshielded wirewound construction for consistent inductance. 270nH ±5% inductance with ferrite core. 200mA maximum DC current rating. 0603 package size with precise dimensional specs. High quality factor of 25 for low loss performance.
RoHS compliant environmental standards. Operating temperature range from -40°C to 125°C. Supplied on reel package for automated assembly. Low DC resistance of 2.1Ω to limit power loss.
