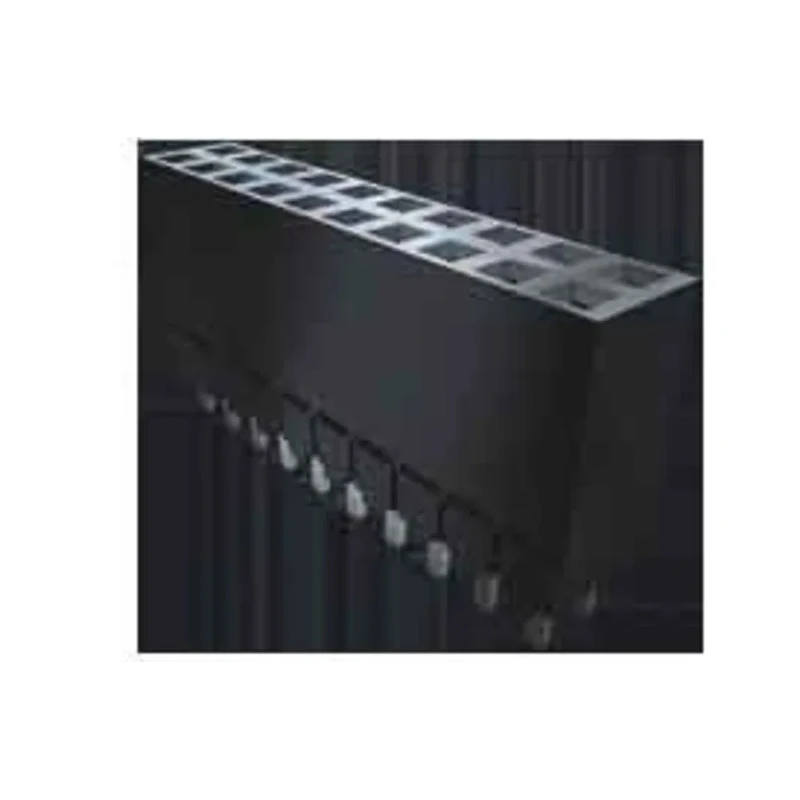

Samtec ESW Series Straight Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch Solder ESW-120-23-G-D

Samtec ESW-120-23-G-D is a premium elevated PCB socket engineered for robust board-to-board connections in industrial and electronic applications. This straight through-hole socket features 40 contacts arranged in 2 rows with a 2.54 mm (.100 inch) pitch, enabling compatibility with standard PCB layouts requiring elevated sockets.

The socket incorporates bronze contact material plated with gold, ensuring excellent electrical conductivity and longevity under repeated mating cycles. Its black glass filled polyester housing offers high mechanical strength and resistance to environmental factors.

Rated for a continuous current of 5.2A and voltage up to 550V, this socket supports reliable performance across a wide temperature range from -55°C to 125°C. The vertical orientation and solder termination method simplify integration into conventional PCB designs.

Samtec's Tiger Buy™ contact system provides both standard and low insertion force contacts with standard solder tails, delivering ease of assembly and dependable electrical connections. Applications include commercial electronics, industrial control boards, and communication equipment needing durable board-to-board connectivity.

Supports a maximum current of 5.2 amperes suitable for board-to-board connections. Constructed with black glass filled polyester housing for durability and insulation. Features bronze contacts plated with gold for excellent conductivity and corrosion resistance.

Designed for vertical orientation with straight connector system for ease of installation. Operates safely within a voltage rating of 550 volts and temperature range from -55°C to 125°C. Contains standard and low insertion force contacts ensuring reliable engagement and ease of use.

Termination type is through-hole solder, compatible with conventional PCB assembly processes. Part of the ESW series, standardized for elevated single and double row sockets up to 72 pins.

This elevated PCB socket suits diverse applications in industrial electronics, manufacturing, communication systems, and laboratory equipment requiring secure, high-performance board connectors. Samtec’s ESW series meets demanding requirements for quality and durability.
