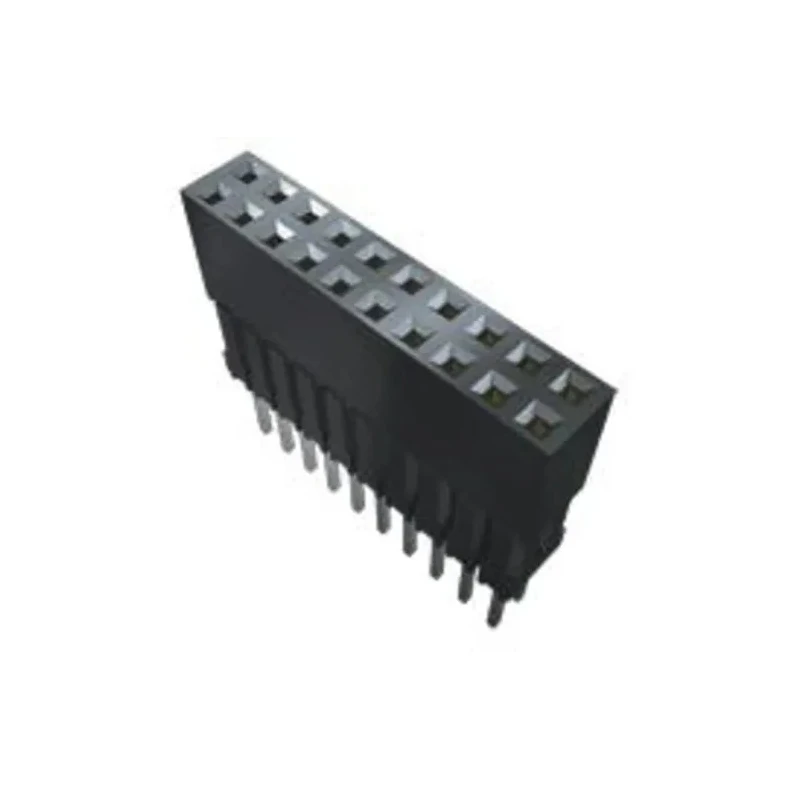

Samtec ESQ Series Straight Through Hole PCB Socket 20-Contact 2 Row 2.54 mm Pitch 225V 23A ESQ-110-14-T-D

Free Delivery in India | Lowest Global Shipping Charges

Samtec ESQ Series Straight Through Hole PCB Socket 20-Contact 2 Row 2.54 mm Pitch 225V 23A ESQ-110-14-T-D

Name: Samtec ESQ Series Straight Through Hole PCB Socket 20-Contact 2 Row 2.54 mm Pitch 225V 23A ESQ-110-14-T-D
Brand: Samtec
SKU: 99140
Price: 3.5 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	United States
Voltage	225V
Brand	Samtec
Orientation	Straight
Current	23A
Model	ESQ-110-14-T-D
Mount Type	Through Hole
Special Features	Standard and low insertion force contacts with .025" (0.635 mm) square tails for PC/104™ applications
Housing Material	Black Glass Filled Polyester
Contact Material	Bronze
Series	ESQ
Termination	Through-hole
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Elevated Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Matt Tin
Number of Contacts	20
Connector System	Board-to-Board
Contact System	Tiger Buy™

Key Features

Provides 20 contacts organized in 2 rows with 2.54 mm pitch.
Designed for through-hole mount with straight orientation.
Constructed with black glass filled polyester housing material.
Supports up to 225 volts and 23 amps of current.
Uses bronze contact material plated with matt tin for corrosion resistance.
Features Tiger Buy™ contact system for reliable connectivity.
Accommodates operating temperatures from -55°C to 105°C.
Includes standard and low insertion force contacts with 0.025 inch square tails for PC/104™ applications.

Product Description

Samtec ESQ-110-14-T-D is a high-quality straight through hole PCB socket designed for demanding electronic applications. It features 20 contacts arranged in 2 rows with a precise 2.54 mm pitch, making it suitable for single, double, and triple row configurations up to 108 pins. The socket supports a voltage rating of 225V and a current rating of 23A, ensuring reliable electrical performance in board-to-board connector systems.

The housing is made from black glass filled polyester, offering robust mechanical strength and thermal stability. Metal contacts are crafted from bronze and plated with matt tin to resist corrosion and wear over extended usage. The socket uses the Tiger Buy™ contact system for consistent and reliable connections.

Designed for through-hole mounting with a straight orientation, this ESQ series elevated socket strip also offers special features such as standard and low insertion force contacts with 0.025 inch (0.635 mm) square tails, ideally suited for PC/104™ applications where secure and maintainable connections are critical.

Operating temperature range from -55°C to 105°C makes it applicable for industrial, laboratory, manufacturing, and embedded computing environments requiring durable, high-performance PCB socket connectors.

20 contacts arranged in 2 rows with 2.54 mm pitch for precise connections. Black glass filled polyester housing ensures durability and heat resistance. Supports 225V voltage and 23A current for robust electrical performance.

Bronze contacts with matt tin plating provide corrosion resistance. Tiger Buy™ contact system guarantees reliable connectivity. Through-hole mount with straight orientation for ease of PCB assembly. Standard and low insertion force contacts with 0.025 inch square tails for PC/104™ applications.

Operating temperature range from -55°C to 105°C suits diverse industrial environments.

Samtec ESQ-110-14-T-D PCB socket is a vital component in electronic assemblies requiring dependable board-to-board connectivity. It is ideal for use in industrial equipment, communication devices, instrumentation, and embedded systems.
