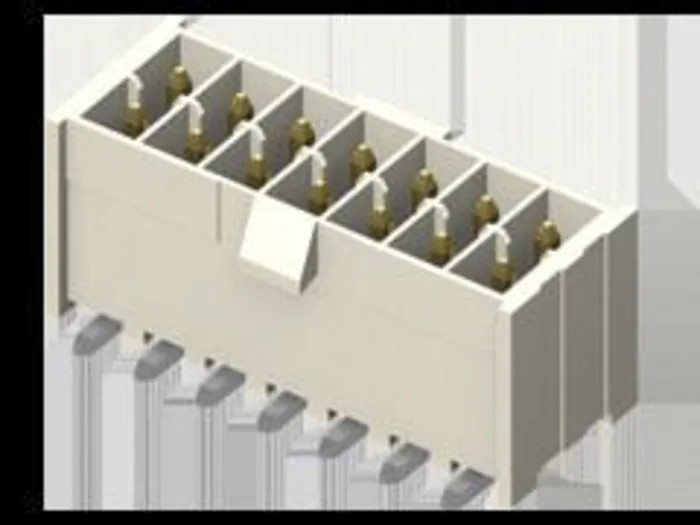

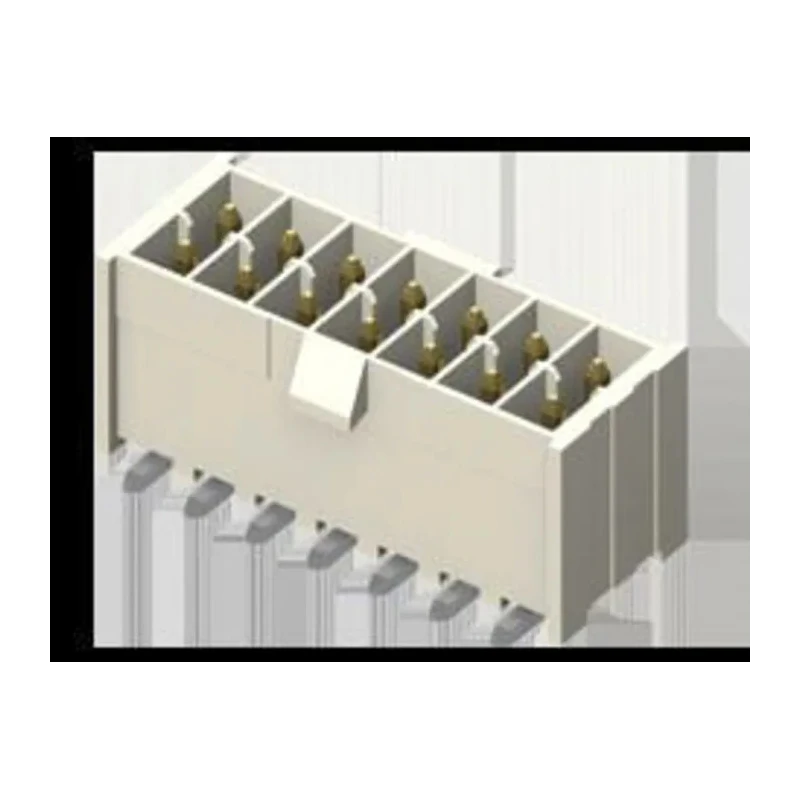

Samtec IPL1 Series Straight Through Hole PCB Header 16 Contacts 2.54 mm Pitch 2 Row Shrouded IPL1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 954V |
| Brand | Samtec |
| Orientation | Straight |
| Model | IPL1 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | IPL1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.05mm |
Key Features
- Features 16 gold-plated phosphor bronze contacts for reliable connectivity.
- Utilizes liquid crystal polymer housing for high durability and insulation.
- Supports a voltage rating of 954V suitable for demanding electronic applications.
- Designed for through hole mounting and straight orientation.
- Shrouded contact system providing additional protection and alignment.
- Operates reliably between -55°C to 125°C temperature range.
- Male contact gender with a solder termination type and 3.05 mm tail pin length.
- Compatible with wire-to-board connector systems, ideal for PCB assembly.
Product Description
Samtec IPL1 Series Straight Through Hole PCB Header, model IPL1, features 16 contacts in 2 rows with a 2.54 mm pitch, designed for reliable electrical connections in PCB assemblies. The shrouded connector design ensures proper alignment and protection, making it ideal for complex circuit applications in industrial, laboratory, and commercial electronics.
Constructed with a liquid crystal polymer housing, this PCB header provides excellent insulation and mechanical strength. The contacts are made of phosphor bronze with gold plating, offering superior electrical conductivity and corrosion resistance. The product supports a high voltage rating of 954V and a current rating up to 3.8A at 95°C, facilitating robust performance in demanding environments.
This through hole mounted, straight orientation connector uses male contact gender and has a tail pin length of 3.05 mm with solder termination, suitable for wire-to-board connector systems. Its operational temperature range from -55°C to 125°C enables versatility across various applications requiring stability under thermal stress.
The IPL1 series is widely used in electronics manufacturing, measurement equipment, automation, and control systems. Its design supports vertical PCB mounting and fits precisely within electronic modules demanding high-density connections and durability.
Features 16 gold-plated phosphor bronze contacts for reliable connectivity. Utilizes liquid crystal polymer housing for high durability and insulation. Supports a voltage rating of 954V suitable for demanding electronic applications.
Designed for through hole mounting and straight orientation. Shrouded contact system providing additional protection and alignment. Operates reliably between -55°C to 125°C temperature range. Male contact gender with a solder termination type and 3.05 mm tail pin length.
Compatible with wire-to-board connector systems, ideal for PCB assembly. Meets industrial standards without specific approvals but designed for high performance. Ideal for electronic manufacturing, laboratory equipment, and industrial PCB applications.
Explore more PCB Headers from Samtec and similar brands at EnvMart to support your electronics design and production needs.
