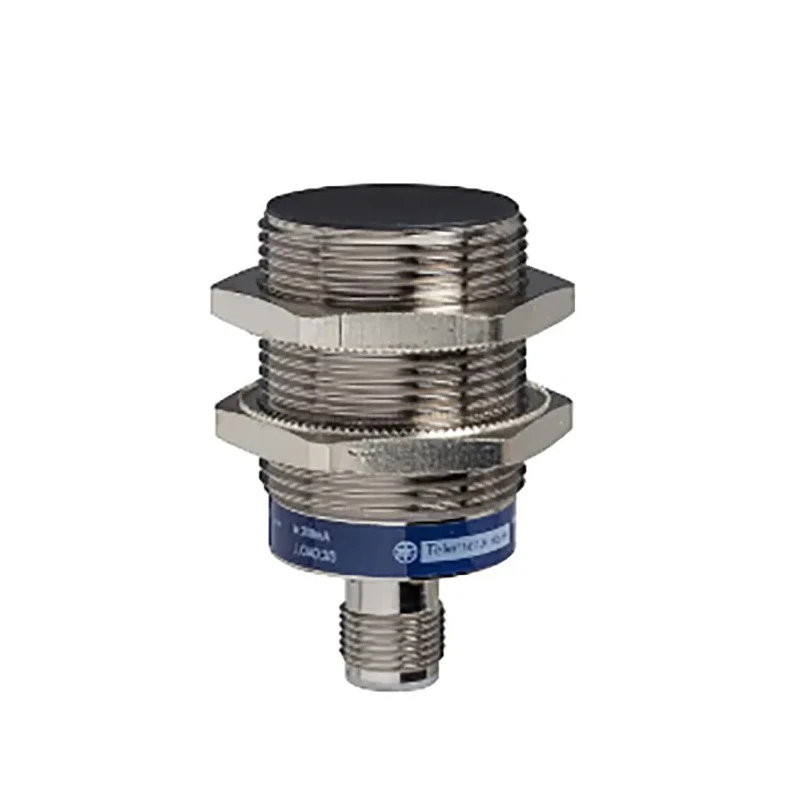

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M30 x 1.5 2-Wire 58 V 15 mm XS630B1DAM12
Specifications
| Country of Origin | France |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 61.9mm |
| Model | XS630B1DAM12 |
| IP Rating | IP67, IP69K |
| Width | 36mm |
| Mount Type | Flush |
| Housing Material | Brass |
| Output type | 2-Wire |
| Series | XS |
| Maximum Operating Temperature | 70°C |
| Thread Size | M30 x 1.5 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100mA dc |
| Terminal type | 4-Pin M12 Male Connector |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 48V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 500Hz |
| Standards/Approvals | IEC 60529, CSA, DIN 40050, UL, CE |
| Maximum Supply Voltage | 58V |
| Materials Detected | Metal |
| Maximum Detection | 15mm |
Key Features
- Threaded Barrel design suitable for flush mounting applications.
- Operates within 12 to 48 V DC supply voltage range with maximum 58 V supply withstand.
- Brass housing ensures durability and resistance to harsh environments.
- Wide operating temperature range from -25°C to 70°C for diverse industrial conditions.
- IP67 and IP69K rated for protection against dust and water ingress.
- 2-Wire output configuration with 4-Pin M12 Male Connector for easy installation.
- Maximum switching frequency of 500 Hz supports fast sensing applications.
- Switching current rated at 100 mA DC for reliable load control.
Product Description
Telemecanique Sensors XS630B1DAM12 is a Threaded Barrel Inductive Proximity Sensor designed for precise non-contact detection of metal objects within a 15 mm range. Featuring an M30 x 1.5 thread size and a compact length of 61.9 mm, this sensor fits seamlessly into flush mounting applications commonly found in automation, manufacturing, and control systems.
Powered by a 12 to 48 V DC voltage with a maximum supply voltage of 58 V, the sensor incorporates a robust brass housing that withstands mechanical and environmental stress. The IP67 and IP69K ratings provide excellent protection from dust ingress and high-pressure water jets, making it suitable for harsh industrial environments.
Operating reliably within a temperature range of -25°C to 70°C, the sensor includes a shielded detection mechanism with a 2-wire output type, connected via a standard 4-Pin M12 Male Connector. It supports a maximum switching frequency of 500 Hz and a switching current of 100 mA DC, ensuring fast and accurate detection in automated processes.
The XS series from Telemecanique Sensors is well known for its quality and immunity to interference, meeting international standards such as IEC 60529, CSA, DIN 40050, UL, and CE, ensuring compliance and safety in diverse industrial applications.
Threaded Barrel design suitable for flush mounting applications. Operating voltage range of 12 to 48 V DC with a maximum of 58 V supply. Brass housing for durability and resistance to harsh environments. IP67 and IP69K protection against dust and water.
Wide temperature range from -25°C to 70°C. 2-Wire output with 4-Pin M12 Male Connector interface. Maximum switching frequency of 500 Hz for fast operation. Switching current rated at 100 mA DC. Shielded sensing for reduced interference.
Compliant with IEC 60529, CSA, DIN 40050, UL, and CE standards.
This inductive proximity sensor is ideal for industrial automation, manufacturing, robotics, and process control systems requiring reliable metal object detection. Its rugged construction and extensive certifications make it suitable for demanding commercial and industrial environments.
Explore more about Telemecanique Sensors and Proximity Sensor options on EnvMart to find compatible products for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum detection range of 15 mm for metal objects.
It operates within a voltage range of 12 to 48 V DC, with a maximum supply voltage of 58 V.
This unit features a 2-wire output configuration, connected via a 4-Pin M12 Male Connector.
It is designed to detect metal objects.
The sensor has a length of 61.9 mm and a width of 36 mm.
The maximum switching frequency is 500 Hz, allowing for fast sensing applications.
It operates reliably within a temperature range of -25°C to 70°C.
The housing is made of brass, providing durability and resistance to harsh environments.
This model has IP67 and IP69K ratings for protection against dust and water ingress.
It complies with IEC 60529, CSA, DIN 40050, UL, and CE standards.
The switching current is rated at 100 mA DC, ensuring reliable load control.
This sensor features a threaded barrel design suitable for flush mounting applications.
