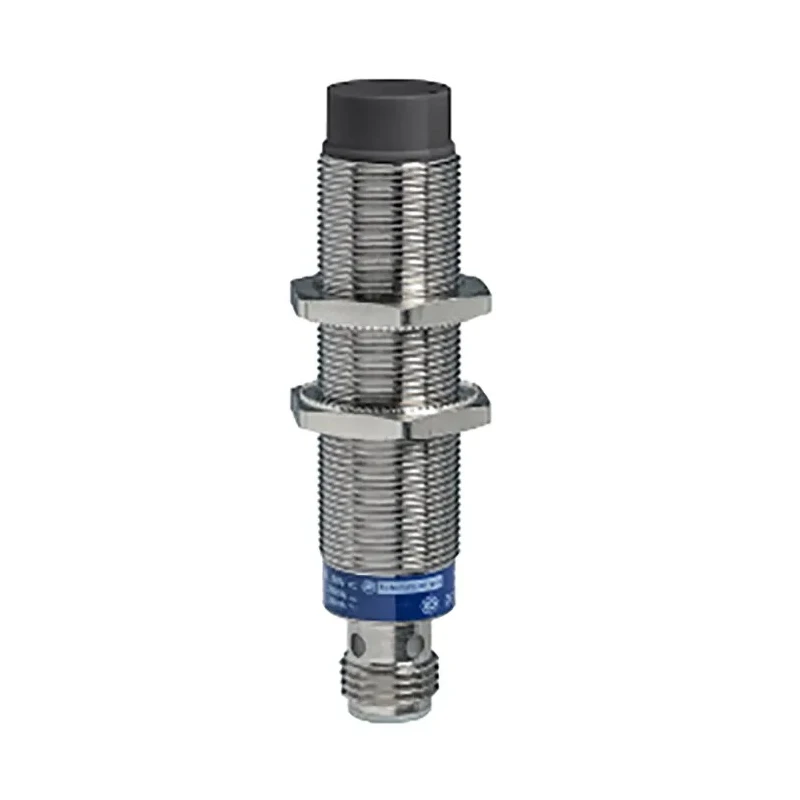

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M18 x 1, 15 mm Detection, 48 V dc, NPN Output XS618B4NAM12
Specifications
| Country of Origin | France |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 71.65mm |
| Model | XS618B4NAM12 |
| IP Rating | IP69K, IP67 |
| Width | 24mm |
| Mount Type | Non-Flush |
| Housing Material | Brass |
| Output type | NPN |
| Series | XS |
| Maximum Operating Temperature | 70°C |
| Thread Size | M18 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA dc |
| Terminal type | 4-Pin M12 Male Connector |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 48V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 1kHz |
| Standards/Approvals | UL, E2, CSA, CE |
| Maximum Supply Voltage | 58V |
| Materials Detected | Metal |
| Maximum Detection | 15mm |
Key Features
- Threaded barrel design with M18 x 1 thread size for secure mounting.
- Detects metallic objects up to a maximum distance of 15 mm.
- Brass housing ensures robust industrial durability.
- Operating temperature range from -25°C to 70°C suitable for harsh environments.
- Maximum supply voltage of 58 V and maximum DC voltage of 48 V dc.
- Equipped with a 4-pin M12 male connector terminal type for easy connectivity.
- Non-flush mounting type enables detection without physical obstruction.
- IP69K and IP67 rated for excellent ingress protection against dust and water.
Product Description
Telemecanique Sensors XS618B4NAM12 is a high-quality threaded barrel inductive Proximity Sensor designed for industrial automation applications. Featuring an M18 x 1 thread size and brass housing, this sensor reliably detects metal objects up to 15 mm without physical contact. It operates effectively within a broad temperature range of -25°C to 70°C and supports a maximum supply voltage of 58 V.
The sensor incorporates a 4-pin M12 male connector terminal facilitating secure wiring and a non-flush mount type for versatile installation options. Its IP69K and IP67 ingress protection ratings ensure durability against dust, water, and harsh environmental conditions typical in manufacturing, industrial control, and process automation.
The XS618B4NAM12 model from the XS series features an NPN output type, delivering up to 200 mA switching current and supports switching frequencies up to 1 kHz. The unshielded design provides optimal performance for detecting metallic objects with minimal interference. It complies with major standards including UL, E2, CSA, and CE, affirming its reliability and safety for global industrial use.
This sensor is ideal for applications in automated assembly lines, conveyor systems, robotics, and process monitoring in various industries such as manufacturing, automotive, packaging, and material handling.
Threaded barrel sensor with M18 x 1 thread size for easy mounting and alignment. Detection range up to 15 mm for precise metal object sensing. Brass construction ensures mechanical robustness for industrial environments.
Wide operating temperature range suitable for extreme climates. 4-pin M12 male connector allows secure and quick electrical connections. Non-flush mount type accommodates detection needs without physical contact. IP69K and IP67 rated for water and dust resistance, enhancing durability.
High switching frequency of 1 kHz supports rapid sensing tasks. NPN output type compatible with common industrial control systems. Maximum switching current of 200 mA suitable for a variety of loads. Compliant with UL, E2, CSA, and CE standards for safety and quality assurance.
Discover more industrial sensors and solutions at EnvMart for reliable and advanced automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can detect metallic objects up to a maximum distance of 15 mm.
The operating temperature range is from -25°C to 70°C.
This model features an NPN output type.
It supports a maximum switching current of 200 mA dc.
It has an IP69K and IP67 rating for excellent dust and water resistance.
The thread size is M18 x 1, which allows for secure mounting.
It is equipped with a 4-pin M12 male connector terminal for easy connectivity.
The maximum supply voltage is 58 V.
It is designed to detect metallic objects.
The non-flush mount type allows for detection without physical contact, accommodating various installation needs.
It supports a maximum switching frequency of 1 kHz, suitable for rapid sensing tasks.
It complies with UL, E2, CSA, and CE standards, ensuring safety and quality assurance.
