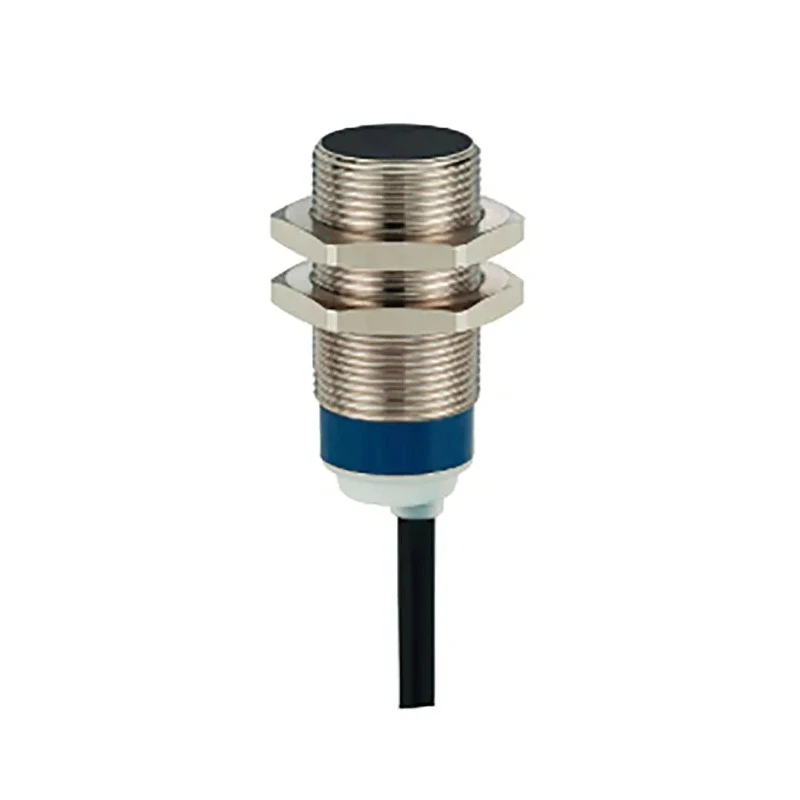

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M18 x 1 2-Wire 36V 100mA XS618B3DAL2
Specifications
| Country of Origin | France |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 40.15mm |
| Model | XS618B3DAL2 |
| IP Rating | IP68, IP69K |
| Width | 24mm |
| Mount Type | Flush |
| Housing Material | Brass |
| Output type | 2-Wire |
| Series | XS |
| Maximum Operating Temperature | 70°C |
| Thread Size | M18 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100mA dc |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 24V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 1kHz |
| Standards/Approvals | CE, CSA, UL |
| Maximum Supply Voltage | 36V |
| Materials Detected | Metal |
| Maximum Detection | 8mm |
Key Features
- Features a robust M18 x 1 threaded barrel design for easy mounting.
- Operates with a 2-wire cable connection suitable for industrial applications.
- Supports a supply voltage up to 36 V with a maximum switching current of 100mA dc.
- Constructed with brass housing to ensure durability in harsh environments.
- IP68 and IP69K rated for protection against dust and water ingress.
- Flush mount type offering versatile installation options.
- Operating temperature range from -25°C to 70°C suitable for varied industrial climates.
- Shielded design reduces interference for accurate sensing performance.
Product Description
Telemecanique Sensors XS618B3DAL2 is a high-quality Threaded Barrel Inductive Proximity Sensor specifically developed for industrial and automation applications. This sensor detects metal objects up to 8 mm without physical contact, making it ideal for harsh and demanding environments.
The sensor has a thread size of M18 x 1 with an overall body length of 40.15 mm and a width of 24 mm. Its brass housing provides ruggedness and resistance to mechanical damage. Designed with a 2-wire cable connection, it operates within a supply voltage range of 12 to 36V DC, supporting a maximum switching current of 100 mA DC.
Its IP68 and IP69K protection ratings ensure excellent resistance to dust, water, and high-pressure cleaning, allowing use in industrial, manufacturing, HVAC, and automation sectors. The flush mounting capability allows secure installation in metal detection and positioning tasks. The sensor maintains accurate and reliable switching operation at a frequency up to 1 kHz, suited for fast automation systems.
Operating temperature ranges from -25°C to 70°C to handle various industrial conditions. It features CE, CSA, and UL certification standards, ensuring adherence to international safety and quality requirements.
Robust M18 x 1 threaded barrel design with brass housing for durability. High resistance to dust and water ingress with IP68 and IP69K ratings. 2-wire cable connection simplifies installation and wiring. Detection range of 8 mm for metal objects ensures precise sensing.
Flush mount type for versatile industrial installation. Wide operating temperature range (-25°C to 70°C). Maximum supply voltage of 36 V and switching current of 100 mA dc. Supports switching frequency up to 1 kHz for fast response.
Complies with CE, CSA, and UL standards for safety and quality.
This sensor is well-suited for industrial automation, manufacturing lines, HVAC systems, and water treatment plants requiring reliable metal object detection. It contributes to improved efficiency and safety in harsh operating environments.
Explore more sensors and proximity sensing solutions at EnvMart to find compatible industrial components for your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range is 8 mm for metal objects.
It operates within a supply voltage range of 12 to 36V DC.
This model supports a maximum switching current of 100 mA DC.
It has IP68 and IP69K ratings, providing excellent resistance to dust and water ingress.
The operating temperature range is from -25°C to 70°C.
It supports flush mounting, allowing for versatile installation options.
It is designed to detect metal objects.
The thread size is M18 x 1.
The maximum switching frequency is up to 1 kHz.
The housing is constructed from brass, providing durability in harsh environments.
It complies with CE, CSA, and UL certification standards.
It features a 2-wire cable connection, simplifying installation and wiring.
