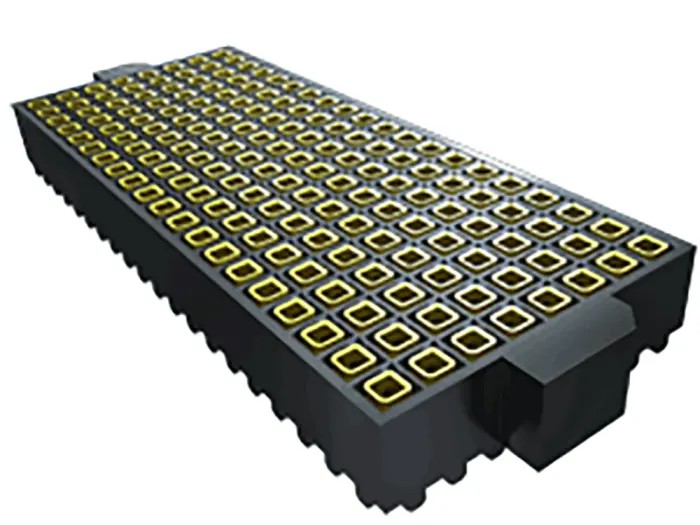

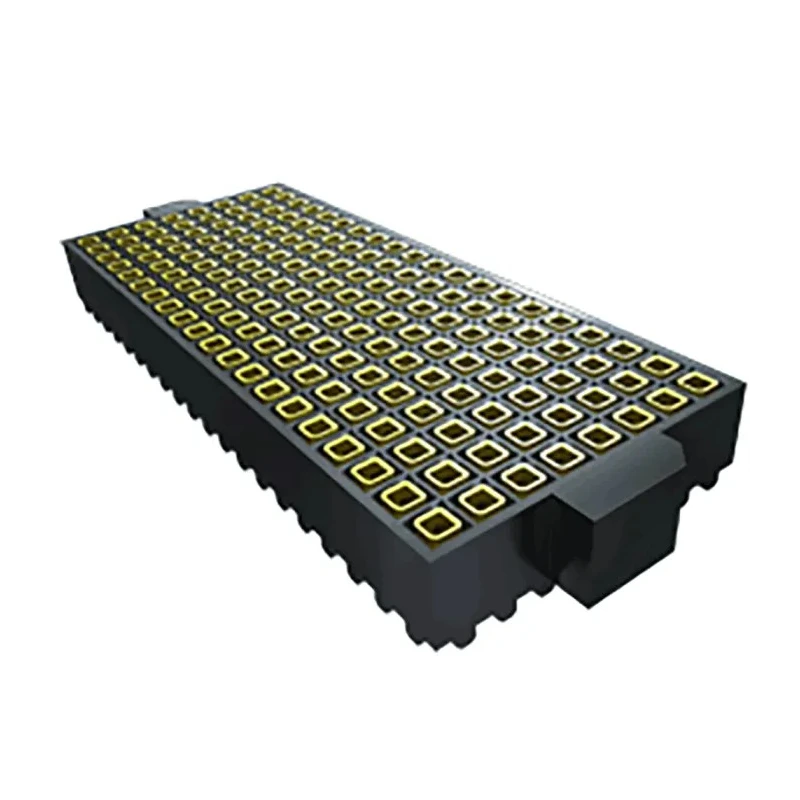

Samtec YFS Series Straight Surface PCB Socket, 100-Contact, 5 Row, 1.27 mm Pitch, 270V, 5mm Height YFS-20-03-H-05-SB-K

Name: Samtec YFS Series Straight Surface PCB Socket, 100-Contact, 5 Row, 1.27 mm Pitch, 270V, 5mm Height YFS-20-03-H-05-SB-K
Brand: Samtec
SKU: 98948
Price: 20 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	United States
Voltage	270V
Brand	Samtec
Orientation	Straight
Model	YFS-20-03-H-05-SB-K
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	YFS
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	5
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	100
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	5mm

Key Features

Features a 5 mm (.197 inch) stacking height for compact PCB assembly.
Constructed from liquid crystal polymer housing for durability and stability.
Includes bronze female contacts plated with gold for reliable conductivity.
Designed to operate up to 270V with temperature range from -55°C to 125°C.
Termination type is solder mount for surface mounting applications.
Connector system optimized for board-to-board interfacing.
Meets high-speed data transmission demands supporting Samtec’s 28+ Gbps solution.
Engineered with Tiger Eye™ contacts ensuring superior electrical performance.

Product Description

Samtec YFS-20-03-H-05-SB-K is a straight surface PCB socket designed for robust electronic component interconnection, featuring a 1.27 mm pitch with 100 female bronze contacts arranged in 5 rows. Its liquid crystal polymer housing provides mechanical strength and thermal resistance, suitable for demanding industrial and electronic applications.

This PCB socket uses solder termination and surface mount technology to ensure secure and reliable mounting on printed circuit boards. The connector system is optimized for board-to-board connections, facilitating high-density interconnections with a low 5 mm stacking height, making it ideal for compact device assemblies.

The contact plating with gold enhances conductivity and resistance to corrosion, supporting high-frequency signal transmission up to Samtec’s 28+ Gbps technology. This product operates reliably across a broad temperature range from -55°C to 125°C and withstands voltages up to 270V, suitable for industrial electronics, telecommunications, computing, and other high-performance electronics.

Samtec’s YFS series sockets incorporate Tiger Eye™ contacts that guarantee consistent electrical performance and durability for extended use. Designed and manufactured in the United States, this product offers compliance with stringent quality standards, ensuring dependable operation in various industrial and laboratory environments.

High-reliability Tiger Eye™ contacts provide superior electrical connectivity. Liquid crystal polymer housing supports durability and thermal resistance. Supports 100 contacts arranged in 5 rows for compact high-density design.

Rated for 270V operating voltage and temperature range -55°C to 125°C. Solder termination type suitable for surface mount PCB assembly. Low 5 mm stacking height facilitates compact PCB layouts. Ideal for industrial electronics, telecommunications, and computing applications.

Manufactured in the United States under strict quality control standards.

This Samtec YFS PCB Socket is the preferred choice for engineers and manufacturers seeking reliable, high-performance board-to-board connectors. EnvMart customers can explore the extensive range of Samtec connectors to find compatible components for their electronic systems.
