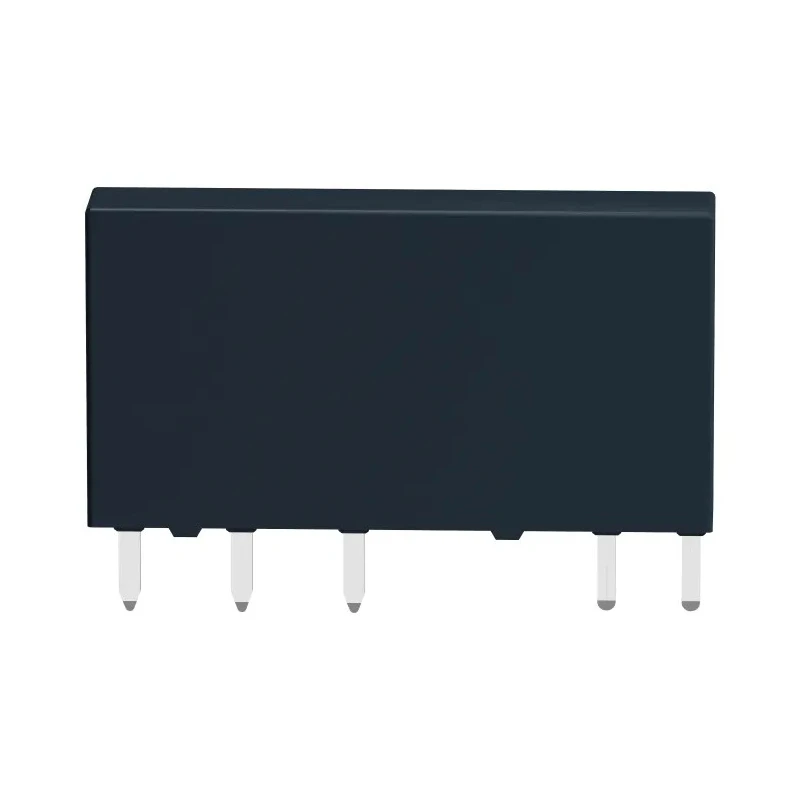

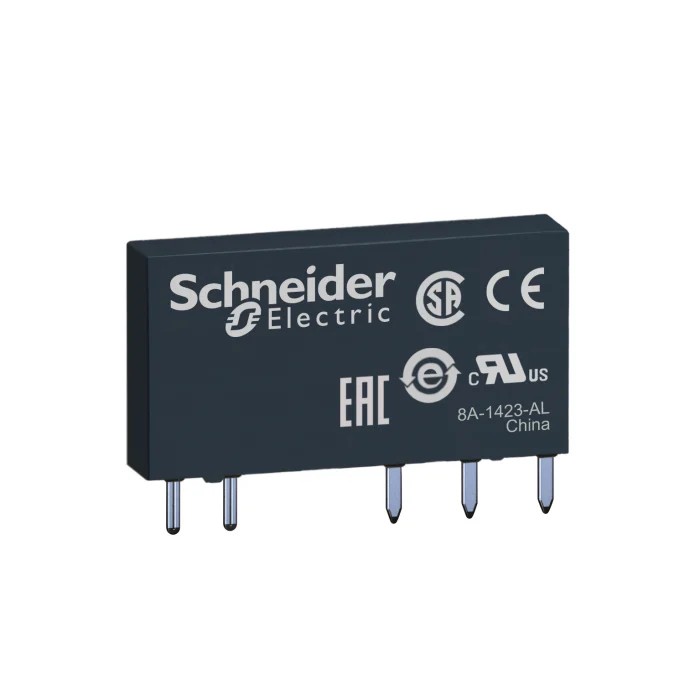

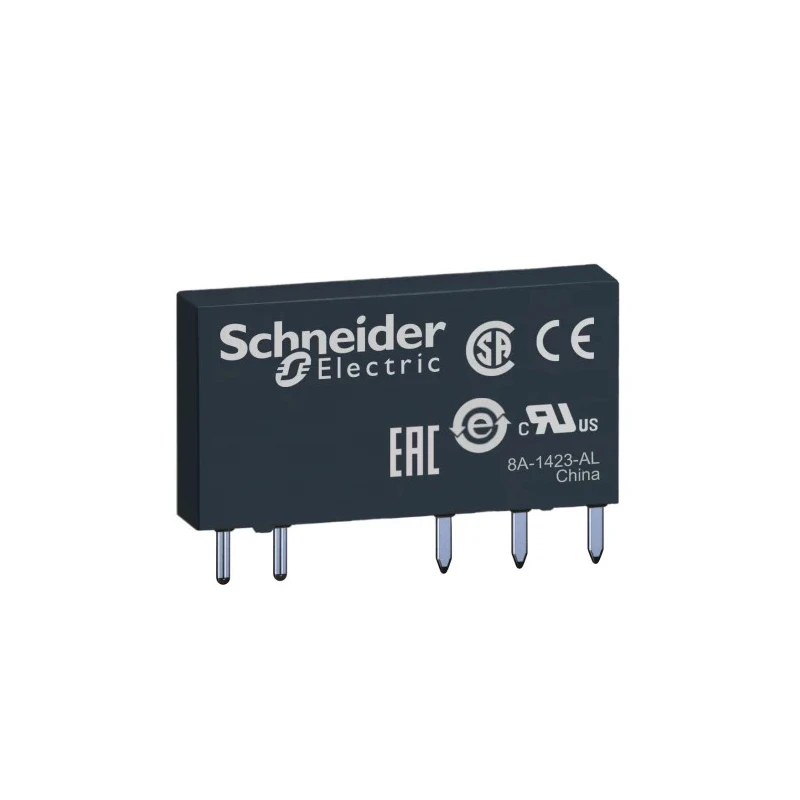

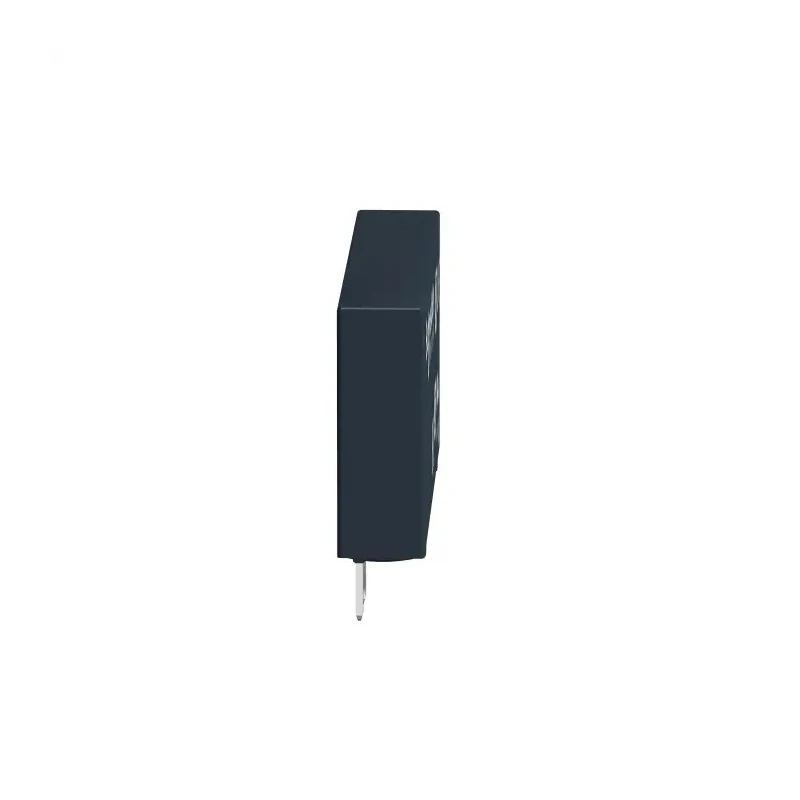

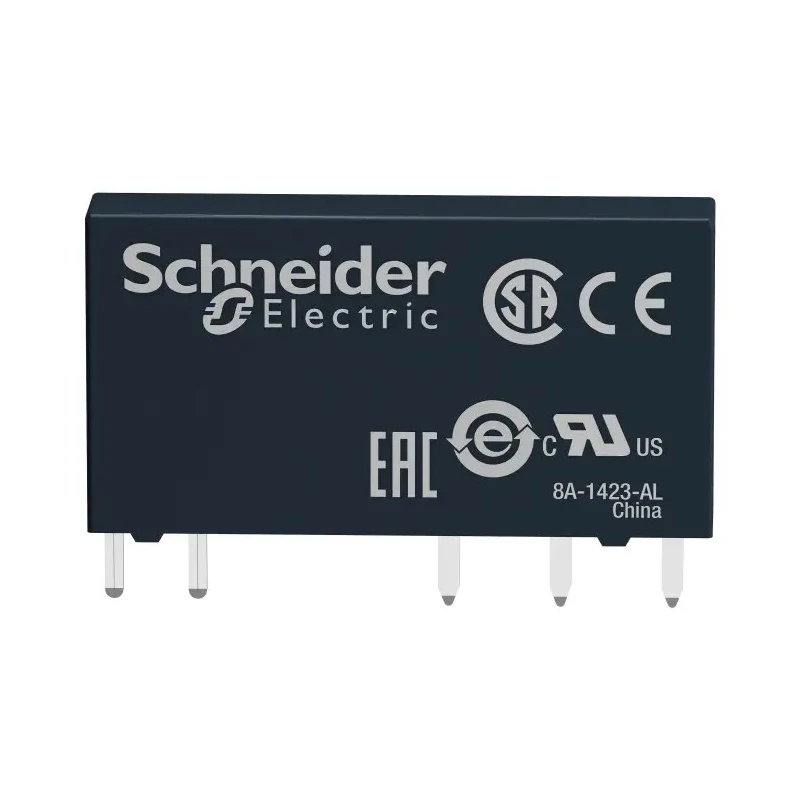

Schneider Electric PCB Power Relay 24V dc Coil 6A Switching Current SPDT RSL1AB4BD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 28mm |
| Length | 5mm |
| Model | RSL1AB4BD |
| Width | 15mm |
| Mount Type | PCB |
| Series | Harmony Relay RSL |
| Contact Configuration | SPDT |
| Switching Current | 6A |
| Terminal type | PCB Pin |
| Standards/Approvals | RoHS |
| Coil Voltage | 24V dc |
| Switching Voltage | 277V |
| Schneider Electric DIN Rail Interface Module, 24V dc Coil, SPDTBrand | Schneider Electric |
Key Features
- Compact and slim design with 28mm height, 15mm width, and 5mm length.
- Designed for PCB mounting with PCB pin terminals.
- Switching voltage rating of 277V for versatile applications.
- Silver-alloy contacts provide efficient and reliable current conduction.
- Lockable test button allows quick testing and diagnostics.
- Ingress protection rating IP40 protects against tools and wires larger than 1mm.
- Suitable for textile industry and automation control panels.
- Hermetically sealed relay design for robustness in all operating conditions.
Product Description
Schneider Electric RSL1AB4BD PCB Power Relay is a high-quality interface relay designed for efficient and reliable signal transfer in industrial and automation control environments. Featuring a 24V dc coil and a 6A switching current in a single-pole double-throw (SPDT) configuration, this relay is optimized for PCB mounting with compact dimensions (28mm height x 15mm width x 5mm length).
The relay is equipped with silver-alloy contacts that ensure swift and interference-free current conduction. Its durable design withstands shock and vibration, making it suitable for demanding industrial applications including textile machinery and programmable logic controller interfaces.
Additional features include a lockable test button for straightforward testing and diagnostics, as well as an IP40 ingress protection rating that safeguards against intrusion by tools or wires larger than 1mm. The unit is hermetically sealed to prevent water vapor and dust ingress, thereby enhancing operational reliability.
Part of the renowned Harmony Relay RSL series, the RSL1AB4BD offers above-average mechanical and electrical durability for extended service life. The device requires no installation tools thanks to its plug-in design, facilitating maximum packing efficiency in control cabinets.
Compact dimensions of 28mm height x 15mm width x 5mm length. Lockable test button for easy diagnostics. IP40 ingress protection rating. Silver-alloy contacts for reliable conductivity. Hermetically sealed for protection against dust and moisture.
Suitable for textile industry and automation control. Plug-in design for tool-free installation. Part of Harmony Relay RSL series for reliability. This relay is ideal for use in industrial automation, manufacturing processes, and electrical control systems where precise and dependable relay performance is critical.
Discover more products in the Power Relays category at EnvMart for comprehensive solutions to relay and switching needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 24V dc.
It has a switching current capacity of 6A.
The dimensions are 28mm in height, 15mm in width, and 5mm in length.
This relay features a single-pole double-throw (SPDT) contact configuration.
The maximum switching voltage is 277V.
It is designed for PCB mounting with PCB pin terminals.
Yes, it has an IP40 ingress protection rating, which protects against tools and wires larger than 1mm.
The relay is equipped with silver-alloy contacts for efficient and reliable current conduction.
Yes, it includes a lockable test button for quick testing and diagnostics.
The country of origin is China.
It complies with RoHS standards.
This model is part of the Harmony Relay RSL series.
