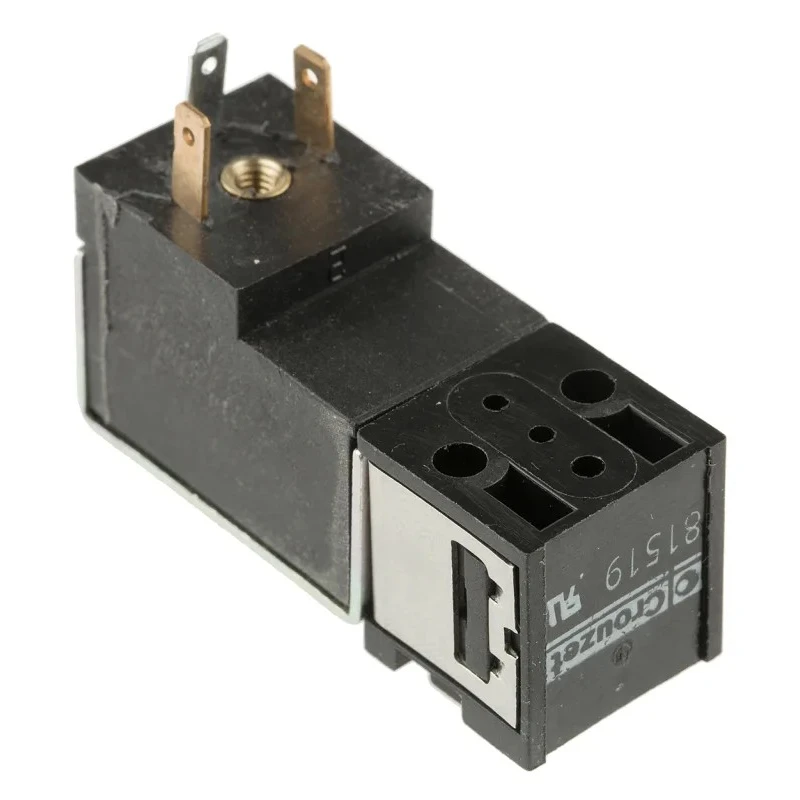

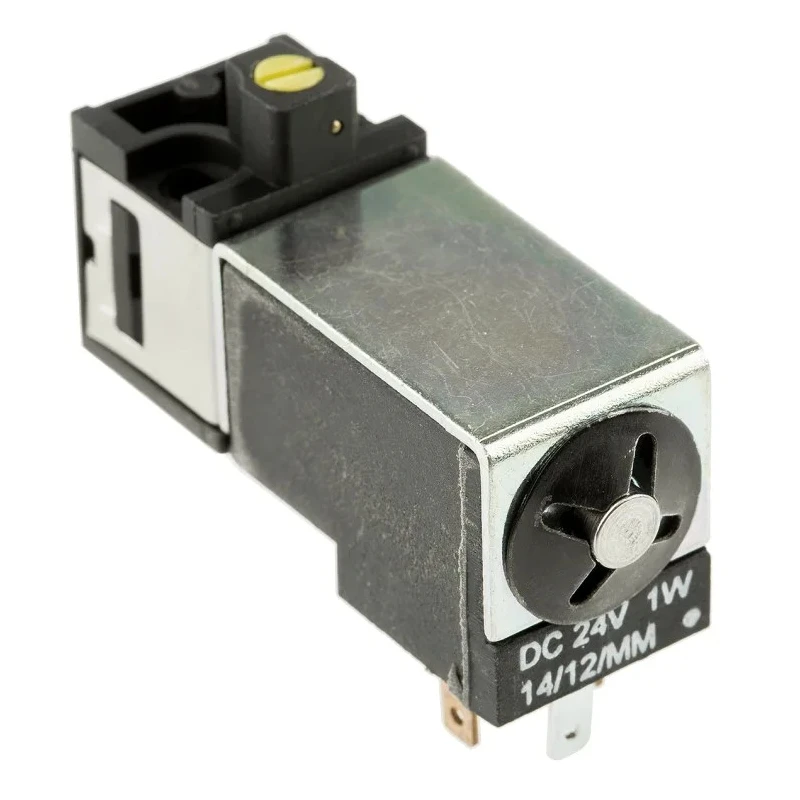

Crouzet Pneumatic Solenoid Valve 3/2 NC Solenoid/Spring 24V DC 1W 81 Series 81519632
Specifications
| Country of Origin | Morocco |
|---|---|
| Voltage | 24V dc |
| Brand | Crouzet |
| Maximum Operating Pressure | 8 bar |
| Height | 26mm |
| Length | 42mm |
| Model | 81519632 |
| Width | 15mm |
| Mount Type | Manifold |
| Series | 81 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Port Type | Push-in |
| Number of Positions | 2 |
| Port Size | 4 mm |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Solenoid/Spring |
| Maximum Flow Rate | 25NL/min |
| Mount Pattern | DIN |
| Minimum Pilot Pressure | 1bar |
| Valve Function | 3/2 NC |
| Solenoid Power Consumption | 1W |
| Crouzet 3/2 Pneumatic Control Valve - Solenoid/Pilot 81 Series 24V dcBrand | Crouzet |
Key Features
- This valve is designed for pneumatic applications with 3 ports and 2 positions.
- Operates at a maximum pressure of 8 bar and maximum flow rate of 25 NL/min.
- Suitable for use with filtered compressed air or inert gas, oil-free up to 50μ filtration.
- Operating temperature range from -10°C to 50°C ensures reliable function in varied conditions.
- Mount pattern follows DIN standards for easy integration into pneumatic systems.
- Low power consumption of 1 watt supports energy-efficient operation.
- Compact dimensions of 42 mm length, 15 mm width, and 26 mm height save installation space.
- Supports minimum pilot pressure of 1 bar and maximum pilot pressure of 8 bar.
Product Description
Crouzet 81519632 pneumatic solenoid valve 3/2 NC Solenoid/Spring 81 Series operates at 24V DC with a power consumption of 1W. This miniature electro-pneumatic valve interfaces electrical control systems with pneumatic drives, suitable for compressed air and inert gases without oil contamination. The valve ensures efficient functioning in industrial pneumatic setups requiring precise control of airflow.
Featuring 3 ports and 2 positions, it offers a valve function of 3/2 NC. The maximum operating pressure rating is 8 bar, and it can handle airflow up to 25 NL/min. The valve has a minimum operating temperature of -10°C and a maximum of 50°C, making it adaptable to various industrial environments.
The valve's manifold mount type and DIN mount pattern allow for quick installation and integration into existing pneumatic systems. Additionally, it includes a maintained manual override for on-site operational control. Its compact size (42 mm length, 15 mm width, and 26 mm height) aids in installation within limited spaces.
This valve is designed to operate at a minimum pilot pressure of 1 bar and a maximum pilot pressure of 8 bar, with filtered air up to 50μ ensuring longevity and reliable operation. Its low power consumption of 1 watt makes it energy efficient.
Ideal for industrial applications, manufacturing automation, fluid power, HVAC pneumatic control systems, and laboratory pneumatic devices. Manufactured in Morocco, this product aligns with quality and reliability standards expected in demanding industrial scenarios.
This valve is designed for pneumatic applications with 3 ports and 2 positions. Operates at a maximum pressure of 8 bar and maximum flow rate of 25 NL/min. Suitable for use with filtered compressed air or inert gas, oil-free up to 50μ filtration.
Operating temperature range from -10°C to 50°C ensures reliable function in varied conditions. Mount pattern follows DIN standards for easy integration into pneumatic systems. Low power consumption of 1 watt supports energy-efficient operation.
Compact dimensions of 42 mm length, 15 mm width, and 26 mm height save installation space. Supports minimum pilot pressure of 1 bar and maximum pilot pressure of 8 bar. Incorporates a maintained manual override for operational flexibility.
Manufactured in Morocco ensuring quality and reliability. Explore extensive ranges of Pneumatic Solenoid Valves and industrial valves at EnvMart for your industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this model is 8 bar.
It has a maximum flow rate of 25 NL/min.
The operating temperature range is from -10°C to 50°C.
It is suitable for use with filtered compressed air or inert gas, oil-free up to 50μ filtration.
The solenoid power consumption is 1 watt.
The dimensions are 42 mm in length, 15 mm in width, and 26 mm in height.
This valve features 3 ports.
It has a manifold mount type and follows DIN standards for integration.
The minimum pilot pressure required is 1 bar.
It uses a solenoid/spring actuation type.
Yes, it includes a maintained manual override for operational flexibility.
This valve is manufactured in Morocco.
