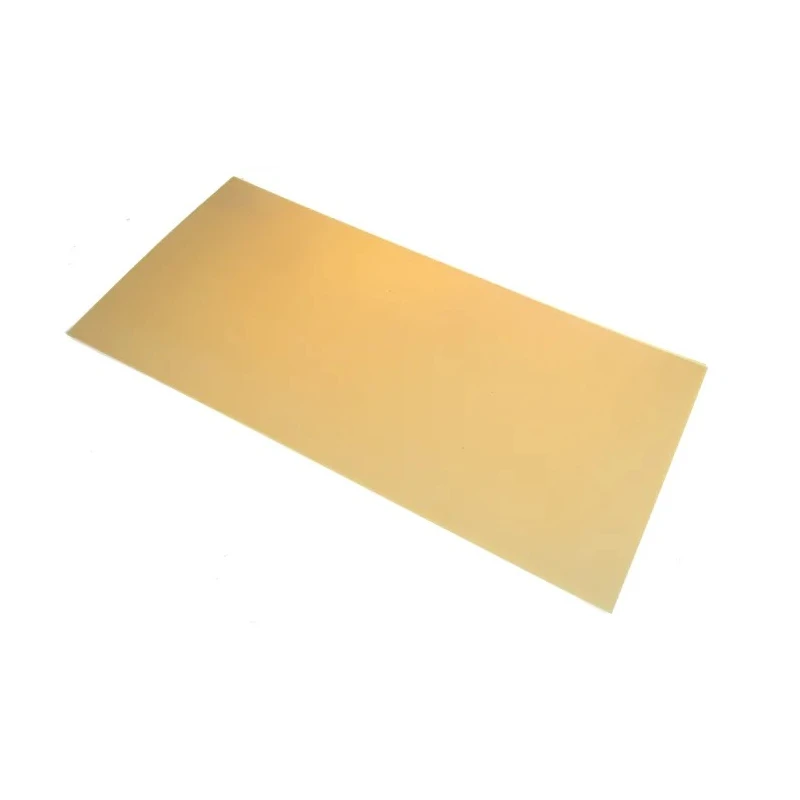

Tufnol Beige Synthetic Resin Bonded Fabric Plastic Sheet 590 mm x 285 mm x 0.8 mm Epoxy Resin Weave Cotton 484-1675

Tufnol 484-1675 Synthetic Resin Bonded Fabric Plastic Sheet combines high-quality synthetic resin bonded fabric with epoxy resin and a fine weave cotton laminate to produce a beige, rigid sheet measuring 590 mm by 285 mm with a thickness of 0.8 mm. This sheet material is engineered for outstanding electrical insulating properties and superior mechanical strength, making it ideal for diverse industrial applications.

The Tufnol 6F/45 SRBF (Synthetic Resin Bonded Fabric) sheet offers excellent resistance to electrical tracking and maintains robust wear resistance while resisting a broad spectrum of chemicals encountered in industrial environments. With a maximum operating temperature of 120°C and an impact strength of 4.6 kJ/m², it is engineered for demanding conditions requiring mechanical durability and reliable thermal performance.

Its density of 1.36 g/cm³ and low water absorption rate of 1.2 mg/cm² contribute to the sheet's dimensional stability and longevity. The product conforms to BS 2572 Type F6 and EN 60893 Type EP CC 301 standards, thus meeting recognized quality and material tests suitable for electrical and mechanical engineering applications.

This beige sheet can be precision machined to tight tolerances and finished smoothly, facilitating integration into industrial assemblies and electrical insulation systems. Manufactured in the United Kingdom, it represents premium European quality, favored in engineering materials and industrial hardware sectors.

Applications for this Tufnol synthetic resin bonded fabric plastic sheet include electrical insulation panels, mechanical structural components, and protective surfaces within fluid power and engineering environments.

Constructed from synthetic resin bonded fabric for mechanical strength and wear resistance. Feature high electrical resistance and chemical resistance. Maximum operating temperature up to 120°C. Density of 1.36 g/cm³ and low water absorption at 1.2 mg/cm².

Complies with BS 2572 Type F6 and EN 60893 Type EP CC 301 standards. Impact strength rated at 4.6 kJ/m² for durability. Can be machined to high tolerance with a quality finish. Ideal for industrial electrical insulation and structural uses.

Manufactured in the United Kingdom using premium materials. Explore our industrial supplies catalog for more premium-quality Plastic Sheets and engineering materials to suit your technical requirements.
