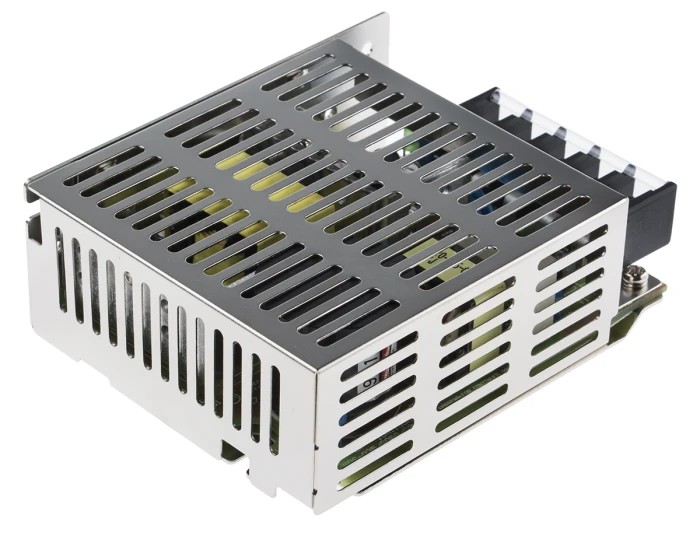

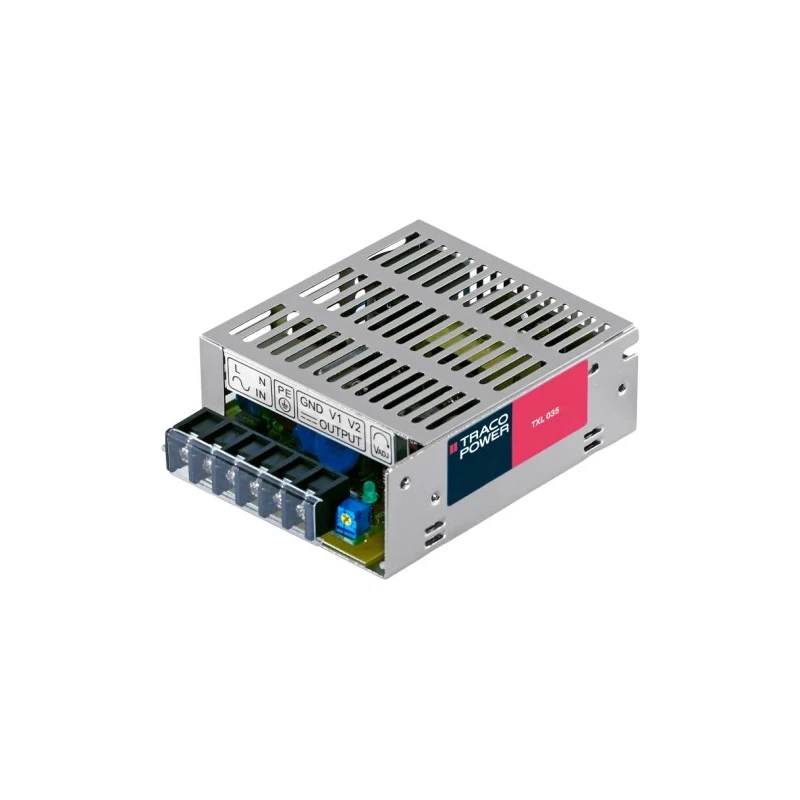

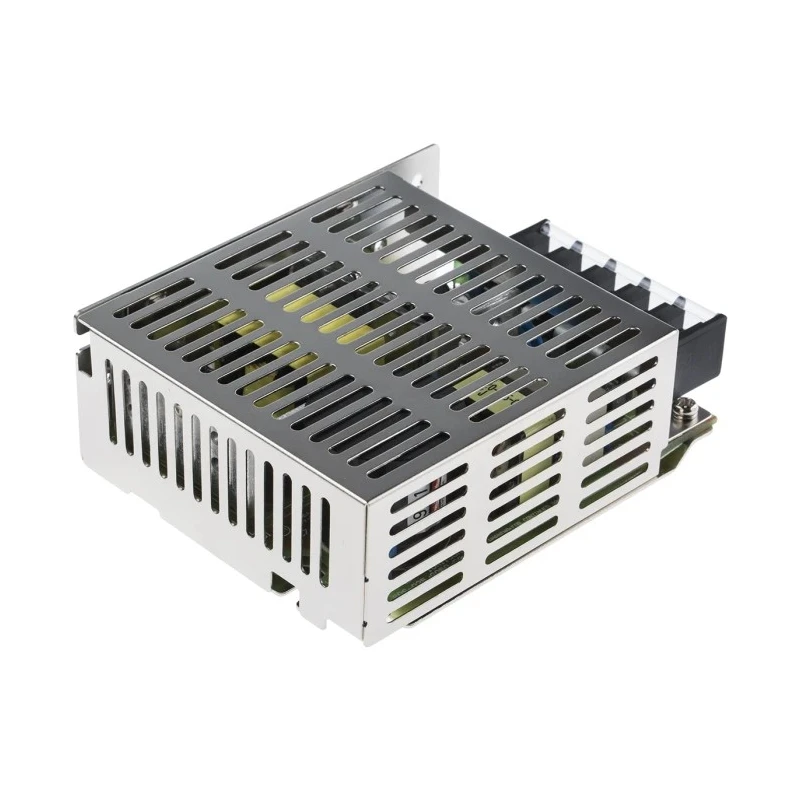

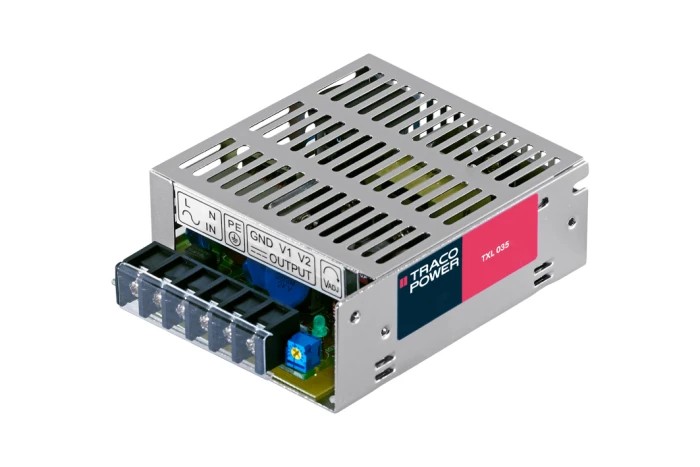

TRACOPOWER TXL 035-48S Switching Power Supply 48V, 35W, 84% Efficiency, Chassis Mount TXL 035-48S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Power | 35W |
| Efficiency | 84% |
| Length | 109mm |
| Model | TXL 035-48S |
| Depth | 35mm |
| Gross Weight | 300g |
| Width | 82mm |
| Mount Type | Chassis |
| Series | TXL |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V |
| Standards/Approvals | EN 55022 Class B FCC Part 15 Level B, UL 60950-1, IEC/EN 61000-4-8, IEC/EN 61000-4-6, IEC/EN 61000-4-5, IEC/EN 61000-4-4, IEC/EN 61000-4-3, IEC/EN 61000-4-2, IEC/EN 61000-4-11, IEC/EN 61000-3-3, IEC/EN 61000-3-2 class A, IEC/EN 60950-1, EN 55024 |
| Maximum Output Voltage | 48V |
| SMPS Output Current | 800mA |
| Minimum Input Voltage | 85V ac |
Key Features
- Compact metal case with screw terminal block for easy installation.
- Wide universal input voltage range from 85 to 264V AC.
- Output voltage of 48V with 800mA output current.
- Operating temperature range from -10°C to 70°C.
- Complies with European EMC standards and Low Voltage Directive.
- Short circuit and overvoltage protection for safety.
- Power factor correction to EN 61000-3-2 standard.
- Meets multiple EMC and safety standards including UL 60950-1 and IEC/EN 61000 series.
Product Description
TRACOPOWER TXL 035-48S Switching Power Supply is designed for industrial and commercial applications requiring reliable 48V DC power with a rated output of 35W. This chassis mount power supply supports a wide input voltage range of 85V to 264V AC, making it suitable for use in diverse electrical systems.
The unit features a robust low-profile metal casing and screw terminal block connection, allowing simple and secure mounting within electrical enclosures. Its output current capacity of 800mA supports various devices and control systems.
Operating efficiently at 84%, this power supply also includes built-in protections against short circuits and overvoltage conditions, enhancing operational safety. Power factor correction (PFC) ensures compliance with EN 61000-3-2, reducing harmonics and improving power quality in installation environments.
Designed to meet stringent international safety and EMC regulations, including EN 55022 Class B and UL 60950-1, it offers peace of mind for industrial setups where electromagnetic compatibility and safety are critical.
Temperature operation spans from -10°C to 70°C, supporting a variety of ambient conditions. The power supply weighs approximately 300 grams and measures 109mm in length, 82mm in width, and 35mm in depth, facilitating compact installation.
Compact metal case with screw terminal block for easy installation. Wide universal input voltage range from 85 to 264V AC. Output voltage of 48V with 800mA output current. Operating temperature range from -10°C to 70°C. Complies with European EMC standards and Low Voltage Directive.
Short circuit and overvoltage protection for safety. Power factor correction to EN 61000-3-2 standard. Meets multiple EMC and safety standards including UL 60950-1 and IEC/EN 61000 series. Weight of approximately 300g allowing for easy integration.
Three-year warranty supports product reliability.
This TRACOPOWER switching power supply is suitable for use in industrial automation systems, control panels, telecommunications, and other applications demanding stable DC power supply. Environmentally robust and compliant with modern standards, it supports reliable operation in manufacturing, laboratory equipment, and commercial installations.
Explore EnvMart's extensive selection of power supplies and Switching Power Supplies for diverse industrial needs to find the right component for your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TXL 035-48S provides an output voltage of 48V with a maximum output current of 800mA.
This model operates with an efficiency of 84%.
It supports a wide input voltage range from 85V to 264V AC.
The power supply measures 109mm in length, 82mm in width, and 35mm in depth, with a weight of approximately 300 grams.
It operates effectively within a temperature range of -10°C to 70°C.
This model is designed for chassis mounting, featuring a robust metal casing.
It includes short circuit and overvoltage protection to enhance operational safety.
This power supply complies with multiple standards, including EN 55022 Class B, UL 60950-1, and various IEC/EN 61000 series standards.
It is suitable for industrial automation systems, control panels, telecommunications, and other applications requiring stable DC power supply.
The power supply has a rated output of 35W.
Yes, it features power factor correction to EN 61000-3-2 standard, which helps reduce harmonics and improve power quality.
The power supply is manufactured in Taiwan.
