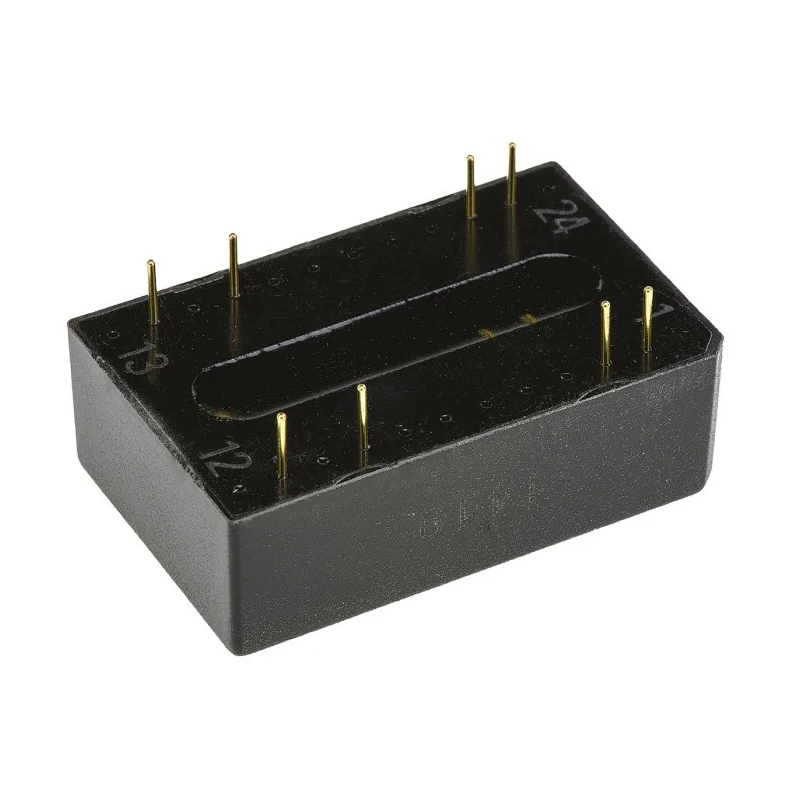

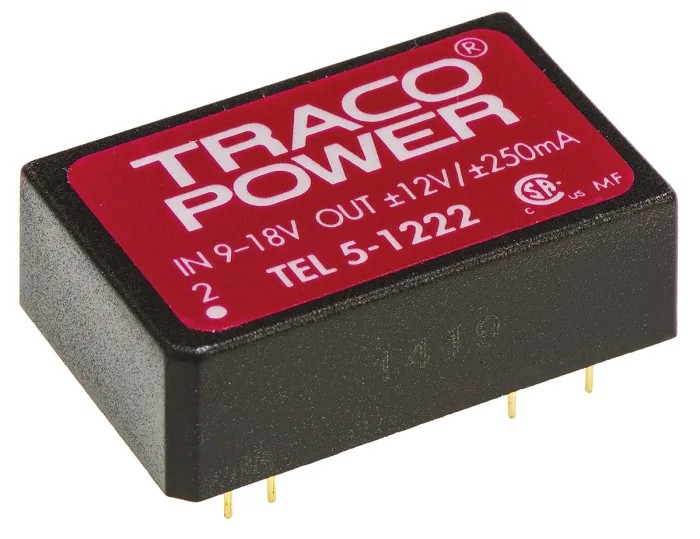

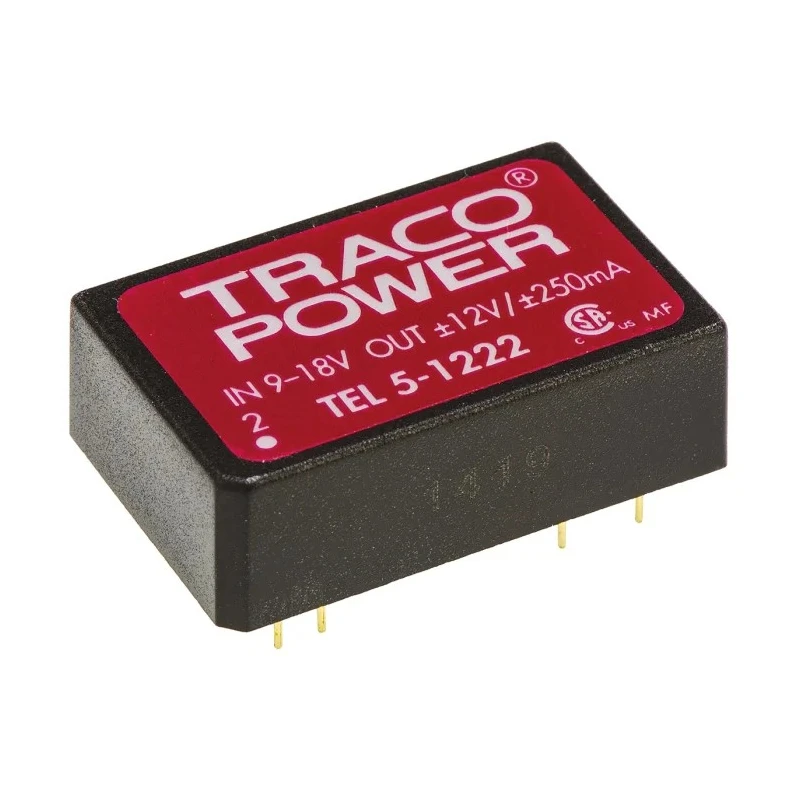

TRACOPOWER DC/DC Converter, 12V DC 250mA Output, 9-18V DC Input, 5W PCB Mount Surface Mount 8-Pin TEL 5-1222
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEL 5 DC/DC Converter, 12V dc/ 250 mA |
| Brand | TRACOPOWER |
| Efficiency | 84% |
| Length | 32mm |
| Model | TEL 5-1222 |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | PCB |
| Series | TEL 5 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 2 |
| Maximum Output Power | 5W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 250mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -12V dc |
Key Features
- Provides stable dual output voltages of +12V and -12V DC.
- Surface mount PCB design ensures compact and durable integration.
- Operates efficiently at 84% with continuous short-circuit protection.
- Wide operating temperature range from -40°C to 85°C for industrial environments.
- Isolation voltage rated at 1.5kV DC enhances safety and noise immunity.
- Lightweight 17g design minimizes load on PCB and system weight.
- 8-pin configuration suitable for demanding electronic applications.
- Flame retardant plastic housing complying with UL 94-V0 standard.
Product Description
TRACOPOWER TEL 5-1222 is a high-quality DC/DC converter designed for reliable power conversion in industrial and electronic applications. This device converts a wide DC input voltage range of 9 to 18 volts to a stable 12V output at 250mA, with a maximum output power of 5 watts. It features a dual output providing both +12V and -12V regulated voltages, supporting sensitive electronics and data acquisition systems.
This converter is built with a surface mount PCB package and includes an 8-pin configuration for efficient integration into circuit boards, promoting superior packing density and lightweight design at 17 grams. It delivers excellent efficiency of 84%, reducing energy loss and heat generation. The unit also provides a 1.5kV DC isolation voltage for enhanced electrical safety and noise reduction.
Operating reliably within a broad temperature range of -40°C to 85°C, the TEL 5-1222 is suitable for harsh operating conditions often found in industrial process controls and consumer electronics. It features a flame-retardant plastic housing rated to UL 94-V0 standards, ensuring safety in the event of fire by limiting burn time to under 10 seconds.
The device demonstrates outstanding robustness with a mean time between failures (MTBF) of 1,000,000 hours, underscoring its durability in critical applications. This converter is ideal for consumer electronics, textile manufacturing processes, and industrial equipment requiring stable and efficient DC voltage conversions.
Stable dual output voltage of +12V and -12V DC. High efficiency rating of 84% minimizes power losses. Surface mount PCB package with 8-pin design for compact installation. Wide temperature tolerance from -40°C to 85°C supports harsh environments.
1.5kV DC isolation voltage enhances electrical noise immunity and safety. Lightweight at 17 grams for minimal impact on circuit board design. Flame-retardant plastic housing compliant with UL 94-V0 standards. Long MTBF of 1,000,000 hours guarantees reliability.
Applications include consumer electronics, industrial process control, and textile industry. Explore EnvMart's comprehensive range of power supplies and DC converters for industrial, laboratory, and manufacturing solutions.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides stable dual output voltages of +12V and -12V DC.
It accepts a wide input voltage range from 9V to 18V DC.
The maximum output power of this unit is 5 watts.
It operates efficiently at an efficiency rating of 84%.

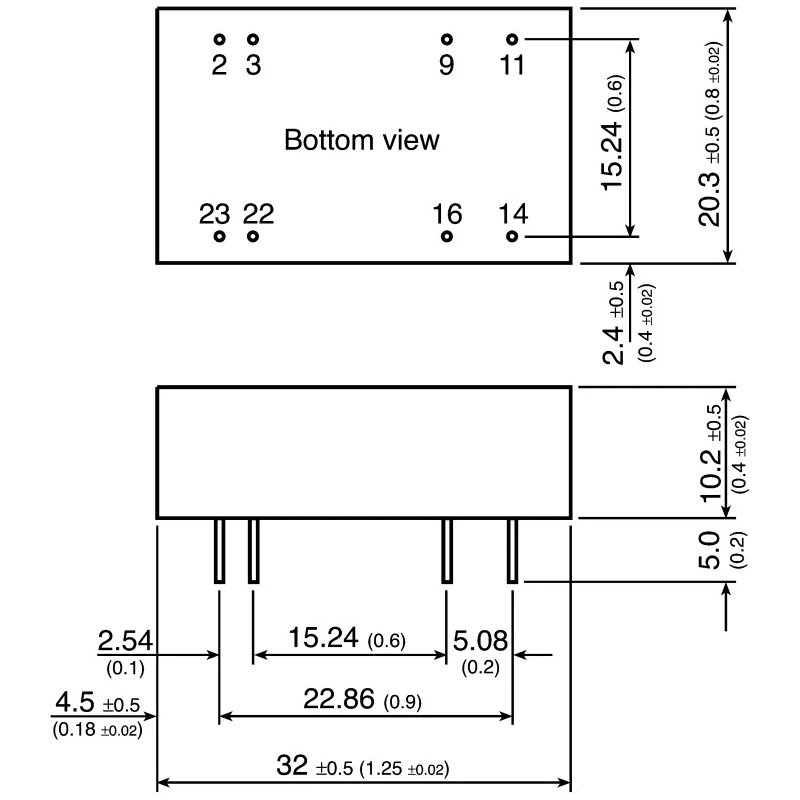

The dimensions of this model are 32mm in length, 20.3mm in width, and 10.2mm in depth.
The isolation voltage is rated at 1.5kV DC, enhancing electrical safety and noise immunity.
It operates reliably within a temperature range of -40°C to 85°C.
This model features two outputs, providing both +12V and -12V DC.
It is designed for PCB mounting with a surface mount package.
This unit weighs 17 grams, minimizing the load on the PCB.
The MTBF for this converter is 1,000,000 hours, indicating its reliability.
It features a flame-retardant plastic housing that complies with UL 94-V0 standards.
