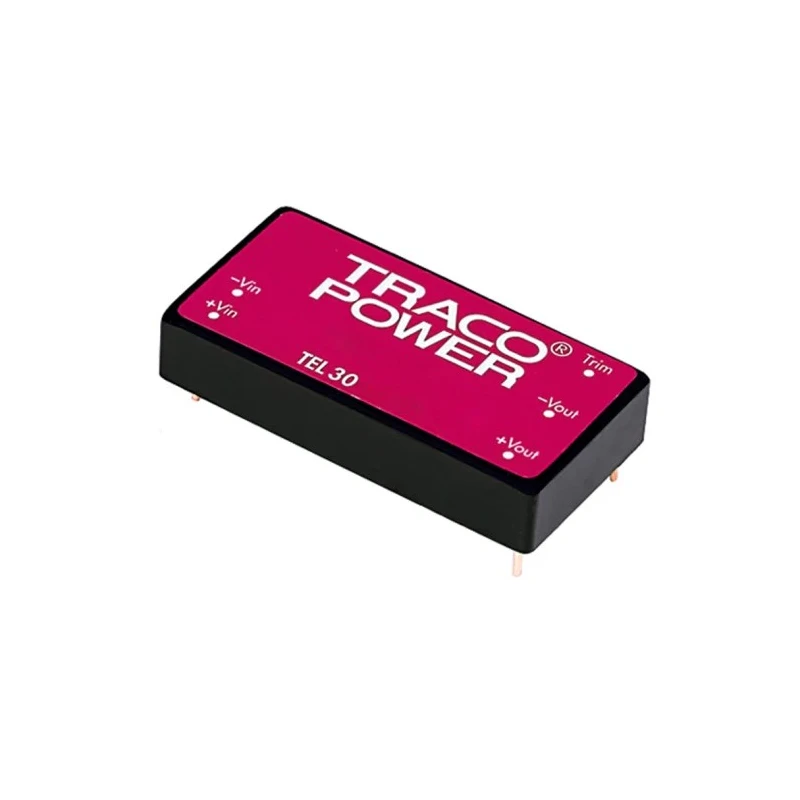

TRACOPOWER TEL 30-2411 DC/DC Converter, 5.1V Output, 5A, 36V DC Max Input, 18V Min Input, 30W, PCB Mount, Shielded Metal Case
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 88% |
| Length | 50.8mm |
| Model | TEL 30-2411 |
| Depth | 9.6mm |
| Mount Type | PCB |
| Series | TEL 30 |
| Maximum Operating Temperature | 71°C |
| Package Type | Shielded Metal Case |
| Minimum Operating Temperature | -40°C |
| MTBF | 600000h |
| Number of outputs | 1 |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 5.1V |
| Output Current 1 | 5A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Wide 2 | 1 input voltage range |
Key Features
- Provides stable 5.1V output voltage up to 5A current for sensitive electronics.
- Wide input voltage range from 18V to 36V DC, suitable for industrial power regulation.
- High efficiency up to 88% ensures optimum performance and minimal heat generation.
- Shielded metal case and PCB mounting for durability and ease of integration in electronic assemblies.
- Six-pin industry-standard pinout with 1.5kV isolation voltage for secure and reliable operation.
- Maximum output power of 30W enables use in communication, networking, and industrial electronics.
- Operating temperature range from -40°C to 71°C, designed for demanding environments.
- Built-in protection features including under-voltage shutdown, over-voltage, over-load, and short circuit protection.
Product Description
The TRACOPOWER TEL 30-2411 DC/DC Converter is designed to provide regulated, isolated DC power for a wide range of industrial and electronic applications. Featuring a single output with a voltage of 5.1V and current rating up to 5A, this converter ensures stable and safe power supply for sensitive equipment and microcontroller-driven systems.
With its wide input voltage range from 18V to 36V DC, the TEL 30-2411 adapts efficiently to diverse supply sources, making it ideal for distributed power architectures and communication networks. The shielded metal case with insulated baseplate offers superior protection against electromagnetic interference, while PCB mounting simplifies integration into assemblies and control boards.
Boasting a high efficiency of up to 88%, the converter minimizes energy loss and heat emission, supporting reliable operation even in high-density electronic environments. The 30W maximum output power further underlines its capability to power demanding devices within industrial electronics, networking, and automation systems.
Six pins and an industry-standard pinout allow for straightforward connection, while 1.5kV isolation voltage guarantees safe electrical separation between input and output circuits. Integrated protection mechanisms - under-voltage shutdown, over-voltage and over-load safeguarding, and short circuit protection - help keep systems safe during fluctuations or faults.
The TEL 30-2411 supports an operating temperature range from as low as -40°C up to 71°C, ensuring endurance in harsh commercial, industrial, and communication cabinet applications. Its adjustable output voltage capability via external resistors makes it flexible for custom integration requirements.
Typical uses for this DC-DC converter include communication and networking systems, industrial electronics, embedded control, and distributed power supplies where reliability, compact form factor, and robust protection are critical.
Browse more DC-DC Converters in the EnvMart Electronics & Electricals category or discover the TRACOPOWER brand offering for advanced power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TEL 30-2411 provides a regulated output voltage of 5.1V with a maximum current rating of 5A.
This model has a wide input voltage range from 18V to 36V DC.
The maximum output power of this converter is 30W.
It achieves an efficiency of up to 88%, minimizing energy loss and heat generation.
The TEL 30-2411 is designed for PCB mounting, facilitating easy integration into electronic assemblies.

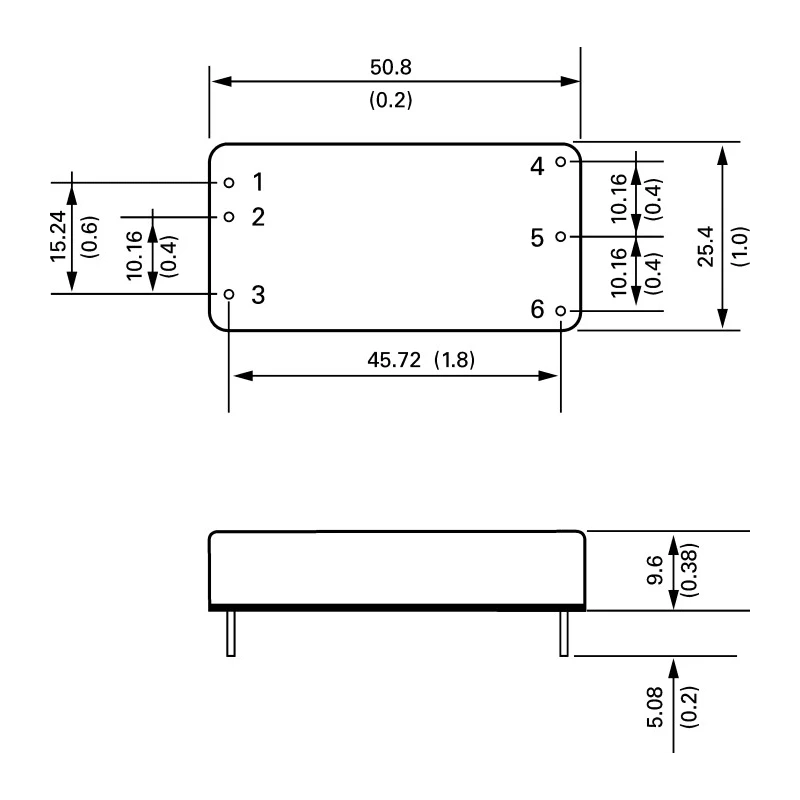

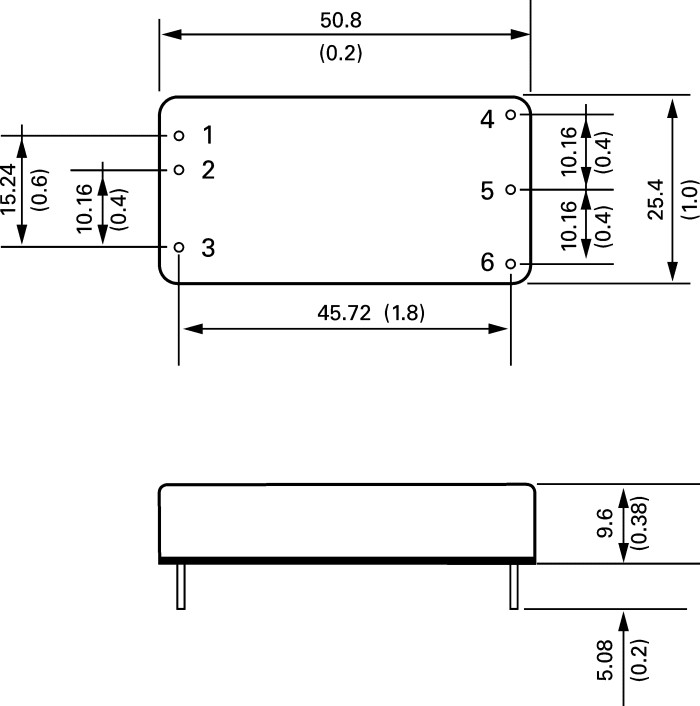

The dimensions of this unit are 50.8mm in length and 9.6mm in depth.
The isolation voltage for the TEL 30-2411 is 1.5kV DC, ensuring safe electrical separation between input and output circuits.
It operates within a temperature range from -40°C to 71°C, suitable for demanding environments.
This model includes under-voltage shutdown, over-voltage, over-load protection, and short circuit protection.
The TEL 30-2411 has a single output.
The TEL 30-2411 is manufactured in Taiwan.
This DC/DC converter is suitable for communication, networking, industrial electronics, and embedded control applications.
