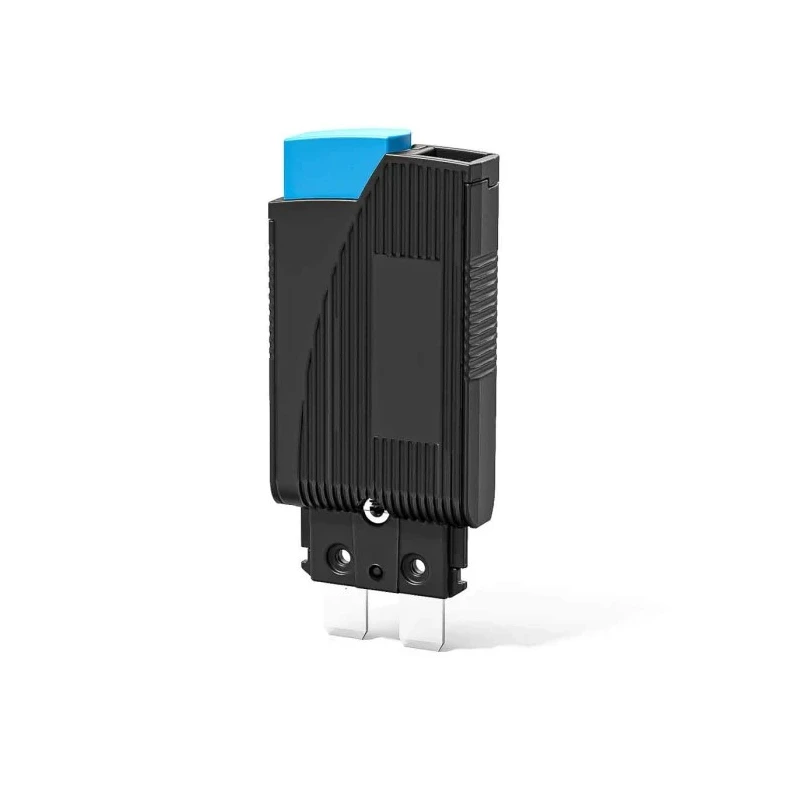

ETA Thermal Automotive Circuit Breaker 1180 Series 1-Pole DIN Rail Mount 1A 250V AC 2000A Breaking Capacity 1180-01-1A

ETA 1180-01-1A Thermal Automotive Circuit Breaker is a miniaturised single pole breaker designed for reliable overcurrent protection in automotive and industrial electrical systems. It features a thermal magnetic convertible mechanism with push-push reset actuator button, providing a rapid snap action and trip-free operation.

Mount type is DIN rail compatible with blade terminals that fit standard optional sockets, enabling easy installation and wiring. The model has compact dimensions (8.2 mm width, 24.4 mm height, 52.3 mm depth) making it ideal for space-constrained panels.

This circuit breaker carries IEC, UL, CSA, VDE, and EN certifications, ensuring compliance with international safety and performance standards. It supports AC voltage ratings of up to 250V and DC ratings up to 65V, with a high breaking capacity of 2000 A at 250V AC, suitable for robust electrical networks requiring dependable protection.

Typical mechanical life is rated to 3000 operations under resistive loads and approximately 500 operations under inductive loads, ensuring longevity and operational reliability in demanding industrial environments.

The breaker’s blade terminals are designed to be used with optional DIN rail sockets which feature screw terminals for cables up to 6 mm². When multiple sockets are banked together, appropriate de-rating to 80% of nominal rating is recommended.

Made in Indonesia, this reliable circuit breaker is suited for industrial, automotive, electrical distribution, and control applications requiring precise thermal protection and simple resetting mechanisms.

Designed for thermal automotive applications with miniaturised single pole construction. Mounts securely on DIN rail with blade terminals for reliable connection. Compact dimensions: width 8.2 mm, height 24.4 mm, depth 52.3 mm.

Features push-push reset actuator button for easy circuit resetting. Rated for 250V AC and 65V DC operation with IEC, UL, CSA, VDE, and EN approvals. Offers high breaking capacity of 2000 A for robust overcurrent protection.

Typical mechanical life of 3000 operations under resistive loads and 500 under inductive loads. Thermal magnetic convertible design ensures reliable snap action and trip-free mechanism. Blade terminals compatible with optional DIN rail sockets for flexible installation.

Manufactured in Indonesia maintaining high quality standards.
