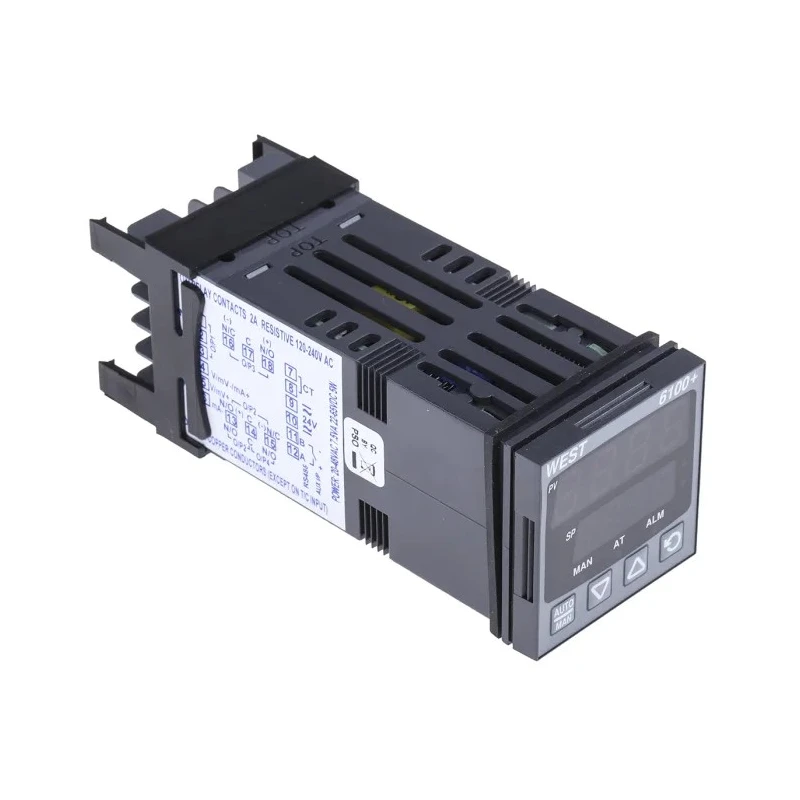

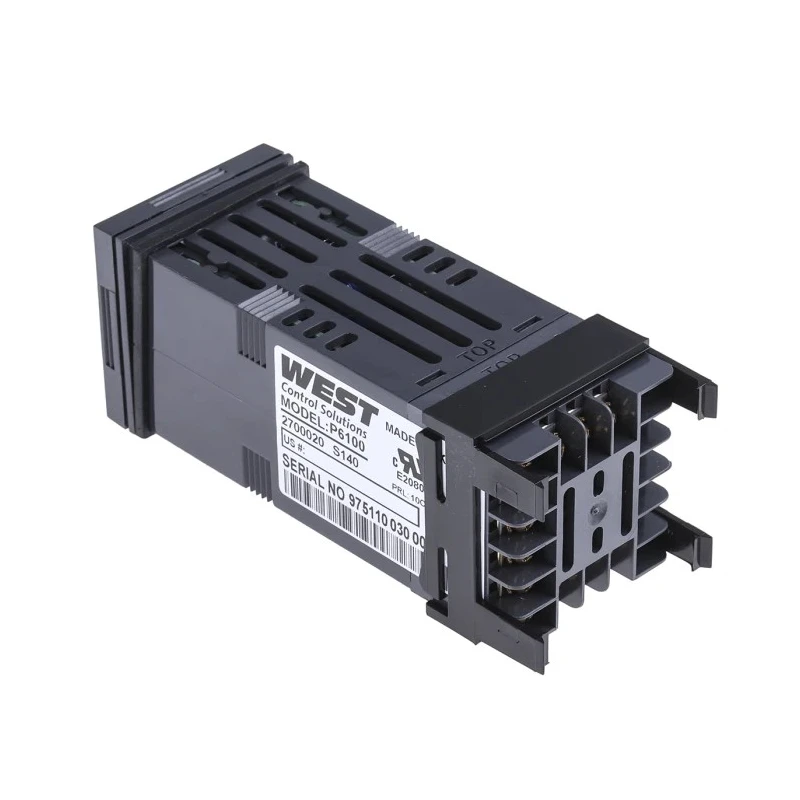

West Instruments DIN Rail PID Temperature Controller 5 Inputs 1 Output Linear 264V ac/dc On-Off P6100-2700-02-0
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Display Type | LED |
| Brand | West Instruments |
| Length | 48mm |
| Model | P6100-2700-02-0 |
| IP Rating | IP66, IP20 |
| Width | 24mm |
| Mount Type | DIN Rail |
| Number of inputs | 5 |
| Output type | Linear |
| Series | P6100 |
| Maximum Operating Temperature | 55°C |
| Control Type | On-Off |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 20mA |
| Number of outputs | 1 |
| Terminal type | Screw |
| Maximum Voltage | 10V |
| Standards/Approvals | ULC, UL, CE |
| Maximum Supply Voltage | 264V ac/dc |
| Digital Comms | RS485 |
| Panel Depth | 120mm |
| 1/16DIN dc o/p temp controller,22-50VacBrand | NEUTRAL |
Key Features
- Supports thermocouples J, K, R, S, T, B, L & N with >100MΩ impedance.
- Operates on 264V ac/dc power supply with a maximum current of 20mA.
- Equipped with RS485 digital communications for easy integration.
- IP66 rated facia ensures dust and water protection for harsh environments.
- User-friendly LED dual display with 4 button operation for seamless interaction.
- Compact DIN Rail mounting with dimensions 48mm length and 24mm width.
- Designed for industrial temperature control with heating and cooling capabilities.
Product Description
West Instruments P6100-2700-02-0 DIN Rail PID Temperature Controller is a high-performance industrial instrument designed for precise temperature regulation in various process control applications. It features 5 thermocouple inputs and 1 linear output with On-Off control, enabling accurate heating and cooling management. The unit supports multiple thermocouple types including J, K, R, S, T, B, L, and N with impedance greater than 100MΩ, making it versatile for different sensor installations.
Powered by a 264V ac/dc supply and capable of handling a maximum current of 20mA, this controller offers robust operation in demanding industrial environments. The controller is housed in a compact 1/16 DIN size enclosure, measuring 48mm length and 24mm width, allowing easy installation on standard DIN rails with compatibility for DIN adapters.

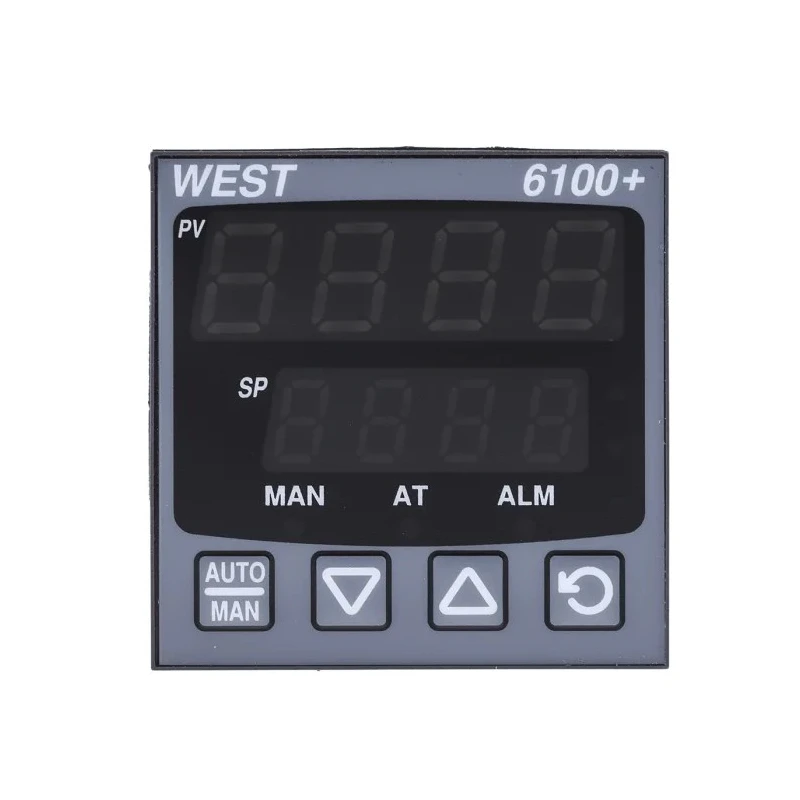

Designed with an IP66 rated facia, the controller is dust-tight and water-resistant, suitable for harsh ambient conditions. The LED dual numeric display provides clear readouts with 10mm and 8mm high characters and easy 4-button operation for intuitive user control and configuration.
The device includes RS485 digital communication interface enabling integration with industrial automation systems for monitoring and control. It supports multiple control methods including full PID with pre-tune, self-tune, manual tuning, and standard On-Off control to adapt to diverse process requirements.
This controller is suitable for industrial, manufacturing, HVAC, and laboratory process control where precise temperature monitoring and regulation are critical. Its robust build and flexible tuning features make it a reliable choice for complex temperature management systems.
Supports thermocouple inputs types J, K, R, S, T, B, L, and N. Compact mounting on DIN rail with 1/16 DIN size enclosure. IP66 rated facia for protection against dust and water ingress. LED dual display with 4-button user interface.
RS485 digital communication interface included. Multiple control types: PID with auto/manual tuning and On-Off control. Power supply 264V ac/dc with max 20mA current. Operating temperature range 0°C to 55°C.
Package includes one West Instruments P6100-2700-02-0 Temperature Controller, ready for industrial installation and operation. Ideal for applications in industrial automation, process control, and HVAC systems needing accurate temperature regulation.
Explore more advanced temperature control solutions from West Instruments to optimize your process control systems on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 55°C.
This unit supports 5 thermocouple inputs.
It is compatible with thermocouples types J, K, R, S, T, B, L, and N.
The controller operates on a power supply of 264V ac/dc.
The dimensions for DIN Rail mounting are 48mm in length and 24mm in width.
It features a linear output type.
Yes, it includes an RS485 digital communication interface.
The facia is rated IP66, providing dust-tight and water-resistant protection.
It can handle a maximum current of 20mA.
The control type is On-Off.
It features an LED dual display with 10mm and 8mm high characters for clear readouts.
This model meets ULC, UL, and CE standards.
