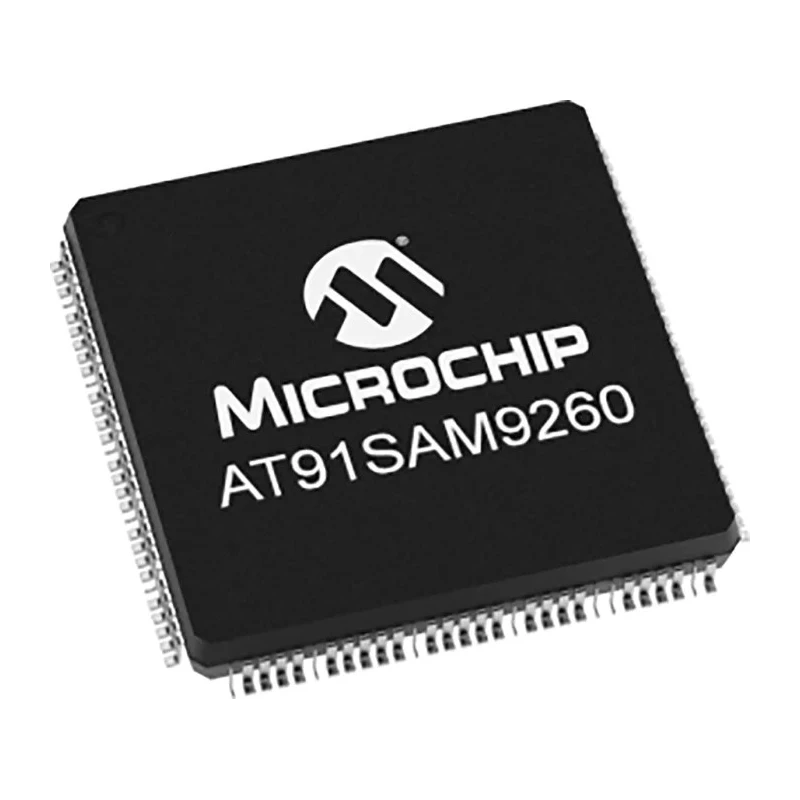

Microchip 32 bit ARM SAM9260 Microcontroller, 180 MHz, 8kB FLASH, 208-Pin PQFP
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Microchip |
| Height | 3.6mm |
| Length | 28mm |
| Model | SAM9260 |
| Width | 28mm |
| Mount Type | Surface |
| Series | SAM9260 |
| Maximum Operating Temperature | 85°C |
| Package Type | PQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Interface Type | USB, USART, UART, SPI |
| Pin Count | 208 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.65V |
| Device Core | ARM |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 180MHz |
| Number of Programmable I/Os | 96 |
| Number of Timers | 6 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Equipped with a 32-bit ARM7TDMI RISC architecture processor for efficient computing.
- Features 8kB program memory and 8kB RAM for moderate application storage.
- Supports multiple interfaces including USB, USART, UART, and SPI for versatile connectivity.
- Operates within a supply voltage range from 1.65V to 3.6V suitable for various power environments.
- Includes 96 programmable input/output lines and 4 channels of 10-bit ADCs for sensor interfacing.
- Built-in 6 timers and supports a maximum clock frequency of 180 MHz for real-time control tasks.
- Features embedded ICE in-circuit emulation and debug communication support for development.
- Package dimensions approximately 28mm x 28mm x 3.6mm, surface mount PQFP type.
Product Description
Microchip AT91SAM9260B-QU is a high-performance 32 bit ARM microcontroller based on the ARM7TDMI RISC architecture. Operating at up to 180 MHz, it integrates 8kB FLASH program memory and 8kB RAM with a 208-pin PQFP surface mount package measuring 28mm by 28mm by 3.6mm. This microcontroller supports advanced interfaces including USB, USART, UART, SPI, and features 96 programmable I/O pins, six timers, and four 10-bit ADC channels.
The device operates on a low voltage supply from 1.65V to 3.6V, suitable for power-sensitive industrial applications. The chip also includes embedded ICE for in-circuit emulation and debugging, facilitating efficient software development.
The SAM9260 microcontroller provides integrated support for Ethernet MAC, multimedia card interfaces, I2S audio interface, and specialized peripherals such as image sensor interfaces, making it ideal for embedded systems, telecommunications, and multimedia applications.
Designed to work reliably in harsh environments, it supports operating temperatures from -40°C to 85°C. Its compact 208-pin PQFP package eases integration into complex PCBs while offering high pin count and I/O flexibility.
Equipped with ARM7TDMI core with 32-bit RISC architecture. 8kB FLASH program memory with flash memory type. 8kB single-cycle access RAM for quick data handling. Multiple communication interfaces including USB host/device and USART.
Four 10-bit ADC channels for analog sensor measurements. Supports wide power supply voltages for diverse applications. Includes in-circuit emulation and debugging capabilities. Robust industrial temperature range for reliability.
Package: 208-pin PQFP, surface mount type. Application fields include embedded control, communications, and industrial automation.
This microcontroller is made in Taiwan, Province Of China, ensuring adherence to manufacturing standards. It is presented in a new condition, ready for immediate integration into customer projects.
Explore EnvMart's extensive catalog of Microchip Microcontrollers and semiconductor products for all industrial and research applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 180 MHz.
The package dimensions are approximately 28mm x 28mm x 3.6mm.
It operates within a supply voltage range from 1.65V to 3.6V.
This microcontroller has 8kB of RAM.
It supports multiple interfaces including USB, USART, UART, and SPI.
There are 96 programmable input/output lines available.
The operating temperature range is from -40°C to 85°C.
It includes four 10-bit ADC channels for analog sensor measurements.
The program memory type is FLASH, with a size of 8kB.
This microcontroller features six integrated timers.
The SAM9260 has a pin count of 208.
It utilizes the ARM7TDMI RISC architecture.
