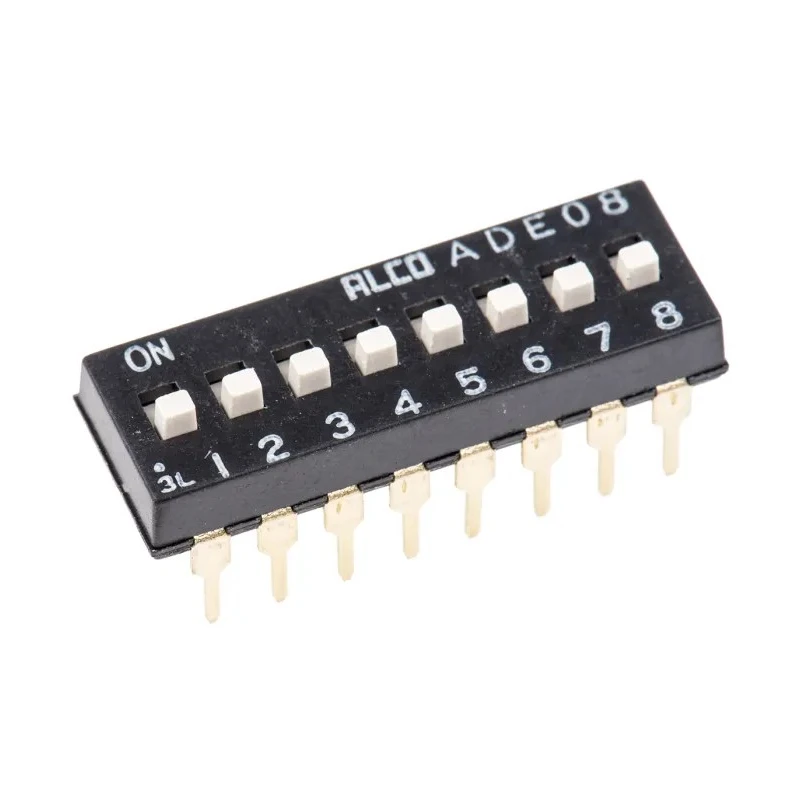

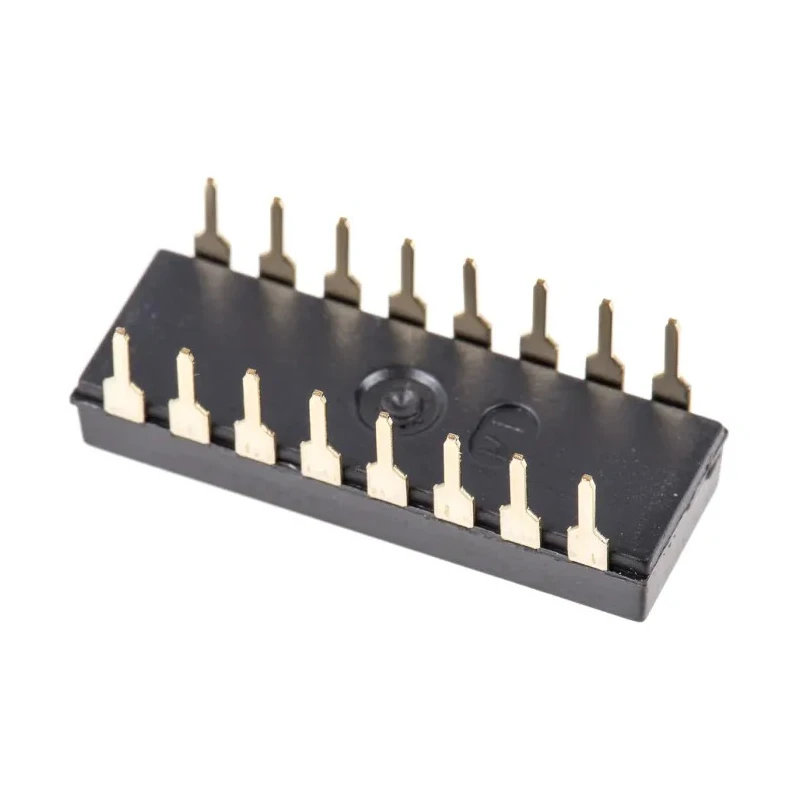

TE Connectivity Slide Rotary Coded DIP Switch Through Hole ADE0804
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | ADE0804 |
| Mount Type | Through Hole |
| Actuator Type | Slide |
| Contact Resistance | 50mΩ |
Key Features
- Mount type is through hole for secure PCB assembly.
- Features a slide actuator allowing easy mechanical operation.
- Gold flash plated contacts ensure reliable electrical performance.
- Black PPS housing provides durability and heat resistance.
- Contact resistance rated at 50 milliohms for low signal loss.
- High pressure wiping contact allows for cleaning with aqueous or solvent solutions without tape seal.
- Compatible with vapor phase reflow and wave soldering processes.
- Auto insertable design supports efficient manufacturing processes.
Product Description
TE Connectivity ADE0804 Slide Rotary Coded DIP Switch is a precision through hole mounted component designed to provide reliable rotary encoded switching functionality in electronic applications. The switch features a slide actuator and measures 7.5 x 3.5 mm with a 2.54 mm centerline pitch, making it compact and suitable for dense PCB layouts.
Constructed with gold flash plated contacts and a black PPS housing, this DIP switch offers excellent durability and resistance to environmental stress. The high-pressure wiping contact mechanism facilitates aqueous or solvent cleaning without the need for tape sealing, enhancing maintenance and production robustness.
Its design supports vapor phase reflow and wave soldering, ensuring compatibility with modern automated PCB assembly lines. The switch’s auto-insertable feature further streamlines manufacturing processes, saving time and costs.
Contact resistance is rated at 50 milliohms, assuring low electrical resistance for signal integrity. This component is made in China adhering to stringent quality standards for industrial electronic components.
This slide rotary coded DIP switch is widely used in industrial automation, electrical control systems, and electronic devices requiring reliable rotary switch inputs. Its through hole mounting provides stable mechanical support, benefiting harsh operating environments.
Mount type is through hole for stable PCB fixation. Slide actuator offers ease of use and precise switching. Gold flash plating improves conductivity and corrosion resistance. Black PPS housing ensures heat and chemical resistance.
Low contact resistance of 50mΩ maintains signal quality. Supports aqueous and solvent cleaning without tape seal. Compatible with vapor phase reflow and wave solder soldering. Auto insertable design for high efficiency manufacturing.
Manufactured in China to meet industrial quality standards. Ideal for industrial, automation, and electrical system applications. Explore more products in the Rotary Coded DIP Switch category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ADE0804 switch features a through hole mounting type, providing stable fixation on printed circuit boards (PCBs).
This model uses a slide actuator, allowing for easy mechanical operation and precise switching.
The contact resistance for the ADE0804 is rated at 50 milliohms, ensuring low electrical resistance and maintaining signal integrity.
The switch is constructed with gold flash plated contacts for improved conductivity and a black PPS housing that offers heat and chemical resistance.
Yes, it supports vapor phase reflow and wave soldering processes, making it suitable for modern automated PCB assembly lines.
This switch measures 7.5 x 3.5 mm with a 2.54 mm centerline pitch, making it compact for dense PCB layouts.
Yes, it features a high-pressure wiping contact mechanism that allows for cleaning with aqueous or solvent solutions without the need for tape sealing.
This switch is widely used in industrial automation, electrical control systems, and electronic devices requiring reliable rotary switch inputs.
The ADE0804 is manufactured in China, adhering to stringent quality standards for industrial electronic components.
The auto-insertable design enhances manufacturing efficiency by streamlining the assembly process, saving time and costs.
The black PPS housing provides durability and resistance to heat and chemical exposure, suitable for harsh operating environments.
It features gold flash plated contacts that enhance conductivity and corrosion resistance, ensuring reliable electrical performance.
