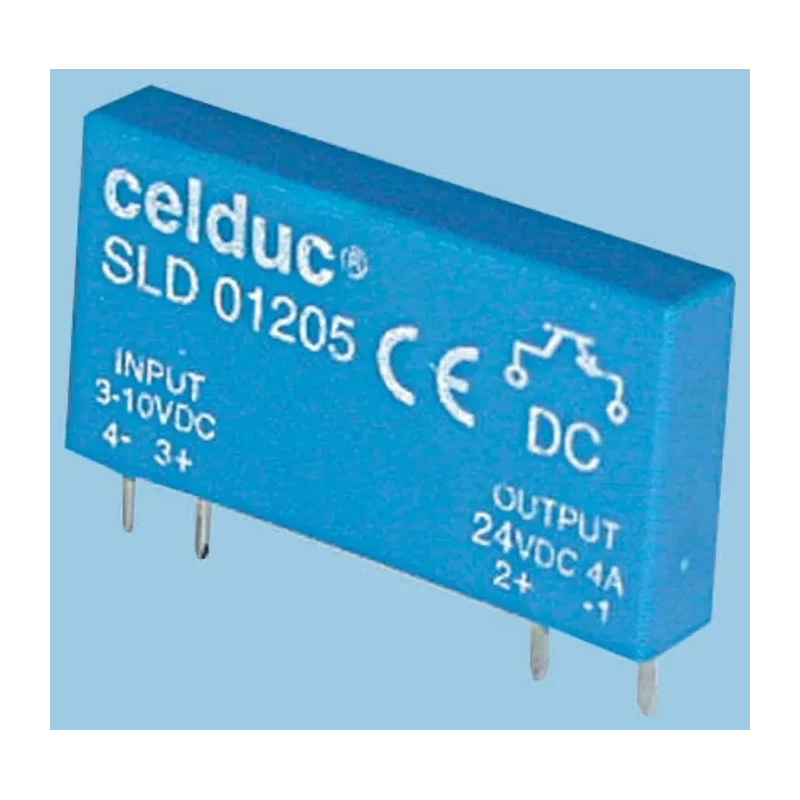

Celduc SLD0x210 Series Solid State Relay, 2.5 A Load, 60 V Load, PCB Mount, Solder Pin Terminals SLD0x210
Specifications
| Country of Origin | France |
|---|---|
| Brand | Celduc |
| Height | 15mm |
| Length | 28mm |
| Model | SLD0x210 |
| IP Rating | IP20 |
| Width | 5mm |
| Mount Type | PCB |
| Series | SLD0x210 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Solder Pin |
| Maximum Load Current | 2.5A |
| Standards/Approvals | UL FILE Nr. E69913, EN60947-5-1 |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | 0V |
| Minimum Control Voltage | 3V |
| Maximum Control Voltage | 58V |
| Off State Leakage Current | 1mA |
| On State Resistance | 200mΩ |
Key Features
- Compact size with 28mm length, 15mm height, and 5mm width suitable for tight PCB installations.
- Solder pin terminals ensure reliable electrical connections.
- Integral surge clipper designed for enhanced transient voltage protection.
- Operates reliably between -20°C to 80°C, suitable for varied industrial environments.
- IP20 rated for basic protection against solid objects.
- Low on state resistance of 200 milliohms enhances efficiency and reduces heat dissipation.
- Off state leakage current limited to 1mA ensuring minimal power loss.
- Compatible with control voltage range of 3 V minimum and up to 58 V maximum for flexible control applications.
Product Description
Celduc SLD0x210 Series Solid State Relay is a compact industrial-grade relay designed for PCB mounting applications. Featuring a maximum load current of 2.5 A and supporting load voltages up to 60 V, this relay is suitable for precise control in automation and electrical devices. The solder pin terminal configuration ensures stable and secure connections on printed circuit boards.
With dimensions of 28 mm in length, 15 mm in height, and 5 mm in width, the relay provides a slim 5 mm profile, ideal for tight space requirements in electronic assemblies. It incorporates a built-in surge clipper to protect against transient voltage spikes, enhancing device longevity and reliability.
Operating effectively over a wide temperature range from -20°C to 80°C, this relay meets the demands of various industrial environments including manufacturing automation, signal conditioning, and control systems. It has an IP20 rating, offering protection against solid particles that could interfere with relay operation.
The relay exhibits a low on state resistance of 200 milliohms, minimizing power losses and heat generation during switching operations. Its off state leakage current is limited to 1 milliampere, ensuring energy efficiency when the relay is not engaged. Control voltage input ranges from 3 V to a maximum of 58 V, providing flexibility for different control circuits.
Compact dimensions suitable for PCB mounting. Surge protection with built-in clipper for durability. Wide operating temperature for versatile applications. Low on state resistance reduces power consumption. Complies with UL and EN safety standards.
Low leakage current improves energy efficiency. Supports wide control voltage range. IP20 rated for dust protection. Manufactured in France ensuring quality assurance. Ideal for industrial automation and signal control systems.
This Celduc solid state relay series is well-suited for applications in industrial automation, electrical control panels, manufacturing equipment, and other scenarios requiring reliable, compact solid state switching. Its robust design and certification compliance make it a preferred choice for demanding electrical and automation installations. Browse EnvMart for a wide range of reliable Solid State Relays and related electrical control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 2.5 A.
This model supports load voltages up to 60 V.
The relay measures 28 mm in length, 15 mm in height, and 5 mm in width.
It operates with a control voltage range from 3 V to a maximum of 58 V.
The relay operates effectively between -20°C and 80°C.
This model features solder pin terminals for secure connections.
It has an IP20 rating, providing basic protection against solid objects.
The on state resistance is 200 milliohms, which enhances efficiency.
The off state leakage current is limited to 1 mA, ensuring minimal power loss.
This relay complies with UL and EN60947-5-1 safety standards.
It is suitable for industrial automation, electrical control panels, and manufacturing equipment.
This solid state relay is manufactured in France.
