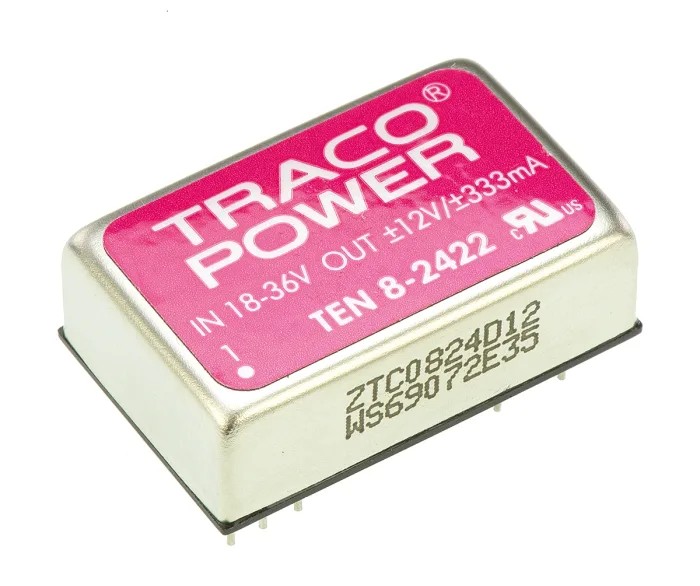

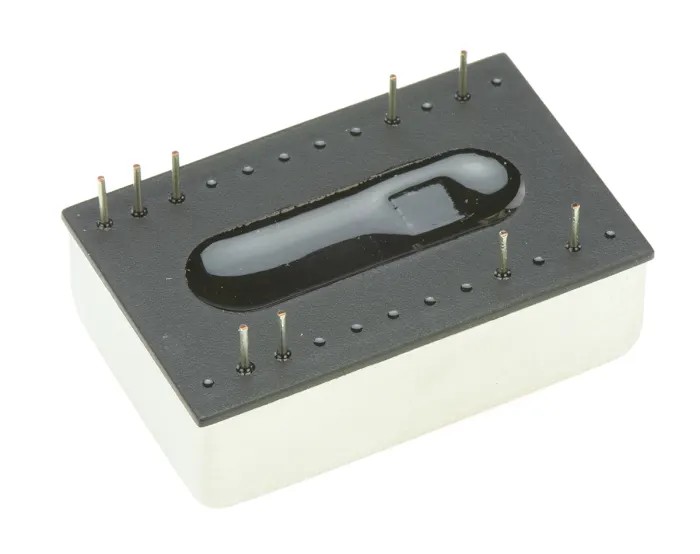

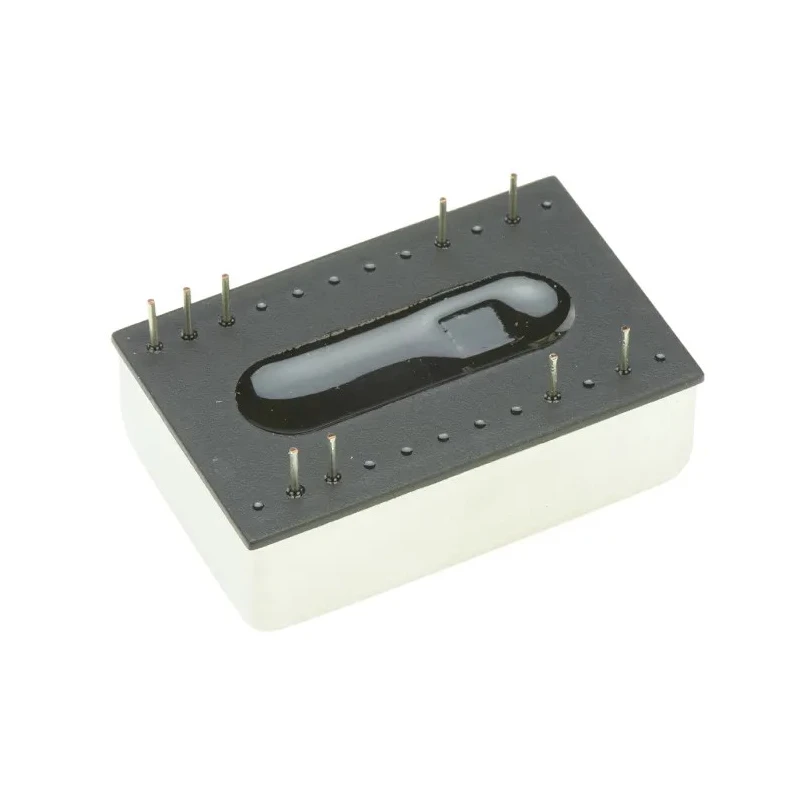

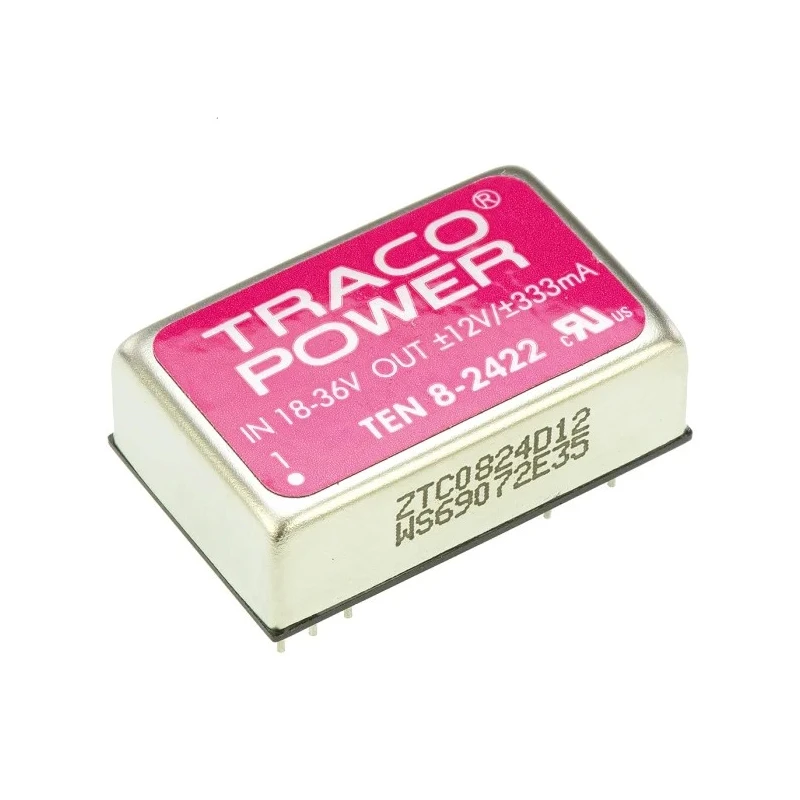

TRACOPOWER TEN 8 DC/DC Converter 12V, -12V, 335mA, 18-36V Input, 8W, PCB Mount, DIP-24, 85°C Max Temperature TEN 8-2422
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 8 DC/DC Converter, 12V, -12 V/ 335 |
| Brand | TRACOPOWER |
| Efficiency | 86% |
| Length | 32mm |
| Model | TEN 8-2422 |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | PCB |
| Series | TEN 8 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 2 |
| Maximum Output Power | 8W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 12, -12V |
| Output Current 1 | 335mA |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
Key Features
- Compact industry-standard DIP-24 package measuring 32mm x 20.3mm x 10.2mm for PCB mounting.
- High efficiency of 86% ensures energy-saving operation.
- Wide operating temperature range from -40°C to +85°C for reliable performance in harsh environments.
- Double output provides isolated ±12V voltages with 1.5kV DC isolation voltage for device protection.
- Load regulation within ±5% maintains stable output under varying load conditions.
- MTBF of 700,000 hours guarantees long operational life and reliability.
- Through-hole mount type enabling robust PCB connections resistant to vibration.
- Shielded metal casing with insulated baseplate protects against electromagnetic interference (EMI).
Product Description
TRACOPOWER TEN 8-2422 is a high-performance DC/DC converter producing dual ±12V outputs at 335mA with an input voltage range of 18 to 36V DC. Its efficient power conversion at 8W and industry-standard compact DIP-24 package design (32mm length, 20.3mm width, 10.2mm depth) make it ideal for space-constrained PCB applications.
Operating reliably from -40°C to +85°C, this converter incorporates a remote on/off function and provides a 1.5kV isolation voltage protecting downstream electronics from voltage spikes, enhancing system safety and resilience.
Constructed with a shielded metal casing and insulated baseplate, the unit effectively shields against electromagnetic interference, making it suitable for sensitive industrial, medical, and factory automation equipment.
Load regulation of ±5% ensures consistent output voltages despite varying loads. With a mean time between failures (MTBF) of 700,000 hours, the TEN 8-2422 guarantees durability and stable long-term operation in demanding environments.
Applications include construction industry systems, medical equipment, and factory automation where reliable dual output voltage DC conversion is critical. Compact DIP-24 through-hole mounting package measuring 32 mm x 20.3 mm x 10.2 mm.
High 86% conversion efficiency for reduced energy losses. Wide operating temperature range from -40 °C to +85 °C. Dual isolated outputs ±12 V at 335 mA with 1.5 kV isolation voltage. Load regulation within ±5% for stable voltage under load changes.
Robust metal shielding against electromagnetic interference. Remote on/off functionality for operational convenience. Industry-standard PCB mounting for vibration resistance.
Designed and manufactured in Taiwan, Province Of China, the TEN 8-2422 DC/DC converter offers precise and reliable voltage conversion for various industrial and medical electronics requiring isolated dual-voltage power supplies. Browse the Electronics & Electricals > Converters > DC-DC Converter category for comparable solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 18 to 36V DC.
It provides dual isolated outputs of ±12V at a maximum output current of 335mA.
The maximum output power of the TEN 8-2422 is 8W.
This model has an efficiency rating of 86%.
The operating temperature range is from -40°C to +85°C.
It features a PCB mount type for installation.
The dimensions of this model are 32mm in length, 20.3mm in width, and 10.2mm in depth.
The isolation voltage for this DC/DC converter is 1.5kV DC.
The load regulation is within ±5%, ensuring stable output under varying load conditions.
The MTBF for this unit is 700,000 hours.
Yes, it incorporates a remote on/off function for operational convenience.
It is suitable for applications in construction industry systems, medical equipment, and factory automation.
