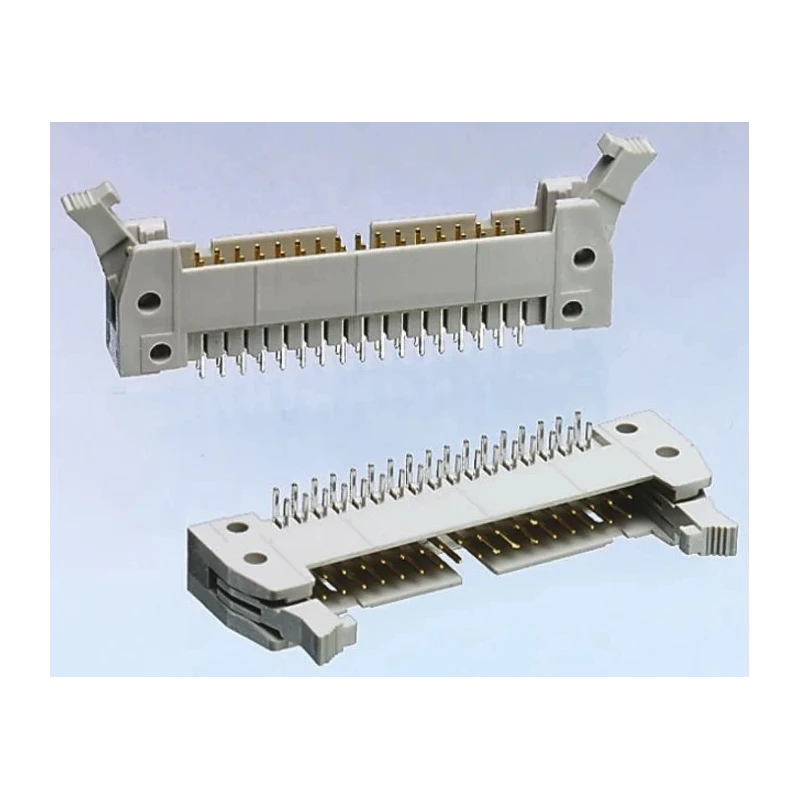

HARTING SEK 18 Series PCB Header 34 Contacts 2.54 mm Pitch 2 Row Shrouded Through Hole 09185346904
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 34 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with durable Polybutylene Terephthalate housing material.
- Gold plated copper alloy contacts ensure reliable connectivity.
- Supports a maximum current of 1A and voltage rating of 1000V.
- Shrouded straight orientation with male contact gender enhances protection and performance.
- Operating temperature range from -55°C to 125°C suits various industrial environments.
- Connector system designed for wire-to-board applications with solder termination type.
- Compliance with multiple industry standards including IEC 603-13 and MIL-C 83503.
- Manufactured in Romania ensuring quality and durability standards.
Product Description
HARTING 09185346904 SEK 18 Series PCB Header is a high-quality electronic connector designed for use in electronics manufacturing and prototyping. Featuring 34 male contacts arranged in 2 rows with 2.54 mm pitch, this through hole header ensures secure and precise connections for wire-to-board systems.
The connector housing is made from robust Polybutylene Terephthalate, providing mechanical strength and resistance to environmental stress. The copper alloy contacts with gold plating offer excellent conductivity and corrosion resistance, suitable for applications requiring consistent electrical performance up to 1A current and 1000V voltage.
The straight orientation and shrouded design of this header aid in preventing misalignment and short circuits, enhancing system reliability. Suitable for solder termination, it ensures a secure bond on PCB assemblies. The operational temperature range from -55°C to 125°C allows this component to function reliably in demanding industrial and electronic device environments.
This product conforms to multiple rigorous standards including UL (E102079), CSA (98267), IEC 603-13, and MIL-C 83503, reflecting its suitability for industrial, laboratory, and manufacturing applications. Manufactured in Romania, it maintains high quality and consistency.
Durable Polybutylene Terephthalate housing material for reliability. Gold plated copper alloy contacts for enhanced signal integrity. Shrouded 2-row configuration with 34 male contacts and 2.54 mm pitch. Supports 1A current and 1000V voltage for varied applications.
Wide operating temperature range from -55°C to 125°C. Meets multiple industrial standards ensuring compliance and safety. Through hole mount type suitable for wire-to-board connection systems.
Ideal for use in electronics components, power and connectors sectors covering PCB connectors and wire housings. Explore more HARTING products for quality connectors and electronic assembly solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 1A and a voltage rating of 1000V.
The operating temperature range for this model is from -55°C to 125°C, making it suitable for various industrial environments.
This connector features a pitch of 2.54 mm and has 34 male contacts arranged in 2 rows.
The housing is made from Polybutylene Terephthalate, while the contacts are made of gold-plated copper alloy for enhanced conductivity.
This model uses solder termination type, ensuring a secure bond on PCB assemblies.
Yes, it complies with multiple industry standards including UL (E102079), CSA (98267), IEC 603-13, and MIL-C 83503.
The connector has a straight orientation, which aids in preventing misalignment and short circuits.
This PCB header is manufactured in Romania, ensuring quality and consistency.
It is designed for wire-to-board applications, making it suitable for various electronic connections.
The contact gender for this model is male, which is typical for through hole connectors.
This connector uses a through hole mount type, suitable for PCB installations.
The shrouded design enhances protection and performance by preventing misalignment and short circuits during connection.
