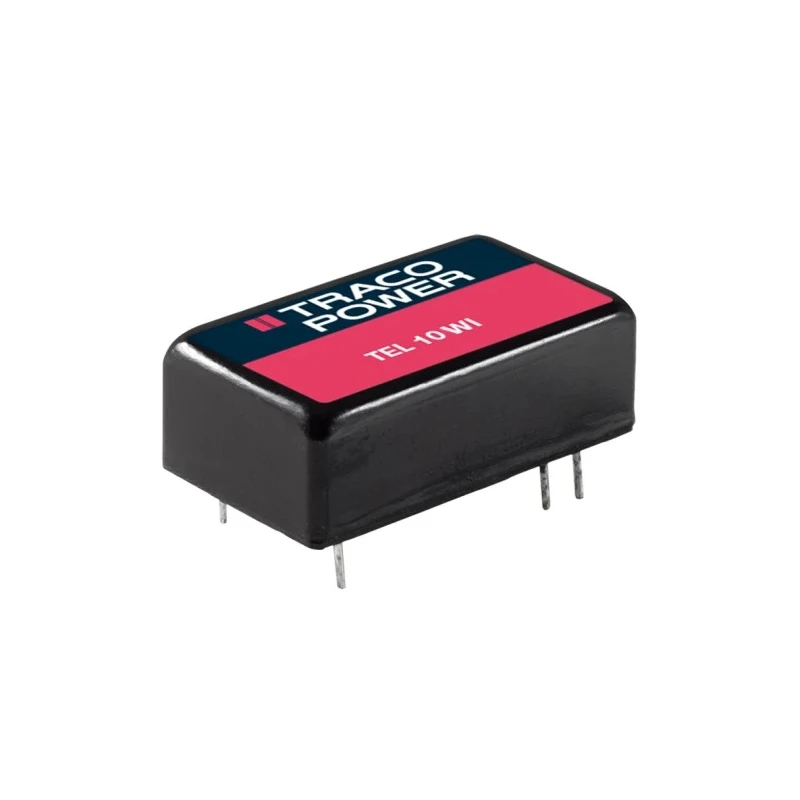

TRACOPOWER DC/DC Converter 10 W 24 V DC 416 mA 18 - 75 V Input Voltage DIP-16 PCB Mount TEL 10-4815WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 88% |
| Length | 23.8mm |
| Model | TEL 10-4815WI |
| Depth | 8mm |
| Width | 13.7mm |
| Mount Type | PCB |
| Series | TEL 10WI |
| Maximum Operating Temperature | 88°C |
| Package Type | DIP-16 |
| Minimum Operating Temperature | -40°C |
| MTBF | 2540000h |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 416mA |
| Isolation Voltage | 1kV dc |
| Better World Claim | Concentrated or Compact Solution |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
| Ultra wide 4 | 1 input voltage range |
Key Features
- Ultra-compact DIP-16 metal package designed for high power density of 3.83 W/cm³.
- Wide input voltage range from 18 V to 75 V for flexible operation.
- High efficiency of 88% minimizes thermal losses during operation.
- Operating temperature range from -40 °C to +88 °C suitable for harsh environments.
- Built-in filter with current limitation and short circuit protection for reliability.
- Isolation voltage rated at 1 kV DC ensures electrical safety.
- Mean time between failures (MTBF) of 2,540,000 hours guarantees long-term durability.
- Ideal for industrial, electronic, and power supply applications requiring compact and reliable DC-DC conversion.
Product Description
TRACOPOWER TEL 10-4815WI is an isolated DC/DC converter series rated at 10 Watts output power. It operates with an output voltage of 24 V DC and output current of 416 mA. The unit accepts a wide input voltage range from 18 V to 75 V DC, making it suitable for variable supply conditions.
Encased in an ultra-compact DIP-16 metal package with a size of 23.8 mm length, 13.7 mm width, and 8 mm depth, this converter achieves an impressive power density of 3.83 W/cm³. With an efficiency of up to 88%, it enables lower thermal dissipation, supporting operation temperatures from -40 °C to +88 °C. It features electrical isolation of 1 kV DC, a built-in input filter, current limitation, and protection against short circuits.
The TEL 10WI series is designed for PCB mounting and is well-suited for industrial, electronic components, power supply systems, and automation applications requiring compact and reliable DC-DC voltage conversion. Its long MTBF of over 2.5 million hours assures dependable operation in demanding environments.
Ultra compact DIP-16 metal casing with insulated base plate. Wide 4:1 input voltage ratio for flexible deployment. High efficiency reduces heat and extends system life. Current limiting and short circuit protection enhance safety.
Wide operating temperature range supports diverse industrial environments. Electrical isolation ensures safe interface with other circuits. PCB mount type suitable for embedded power designs. Reliable performance with high MTBF rating.
This product is a concentrated and compact DC-DC solution supporting sustainable and efficient power conversion. It is a robust choice in power supplies for industrial control, instrumentation, and electronic equipment.
Explore more TRACOPOWER DC converters and power supply components on EnvMart for advanced electronic applications.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output voltage of 24 V DC and an output current of 416 mA.
It accepts a wide input voltage range from 18 V to 75 V DC, allowing for flexible operation under various supply conditions.
The efficiency of this unit is rated at 88%, which helps minimize thermal losses during operation.
The dimensions of this model are 23.8 mm in length, 13.7 mm in width, and 8 mm in depth.
The maximum operating temperature for this unit is 88 °C, making it suitable for harsh environments.
This model is designed for PCB mounting, making it suitable for embedded power designs.
It includes built-in current limitation and short circuit protection, enhancing its reliability and safety.
The isolation voltage is rated at 1 kV DC, ensuring electrical safety during operation.
The MTBF for this model is rated at 2,540,000 hours, indicating long-term durability.
This converter has an ultra-wide input ratio of 4:1, providing flexibility in deployment.
It is ideal for industrial, electronic components, power supply systems, and automation applications requiring compact and reliable DC-DC conversion.
The country of origin for this product is Taiwan.
