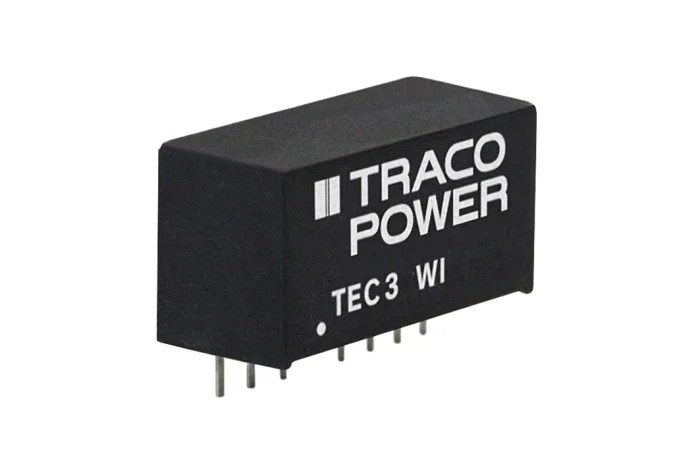

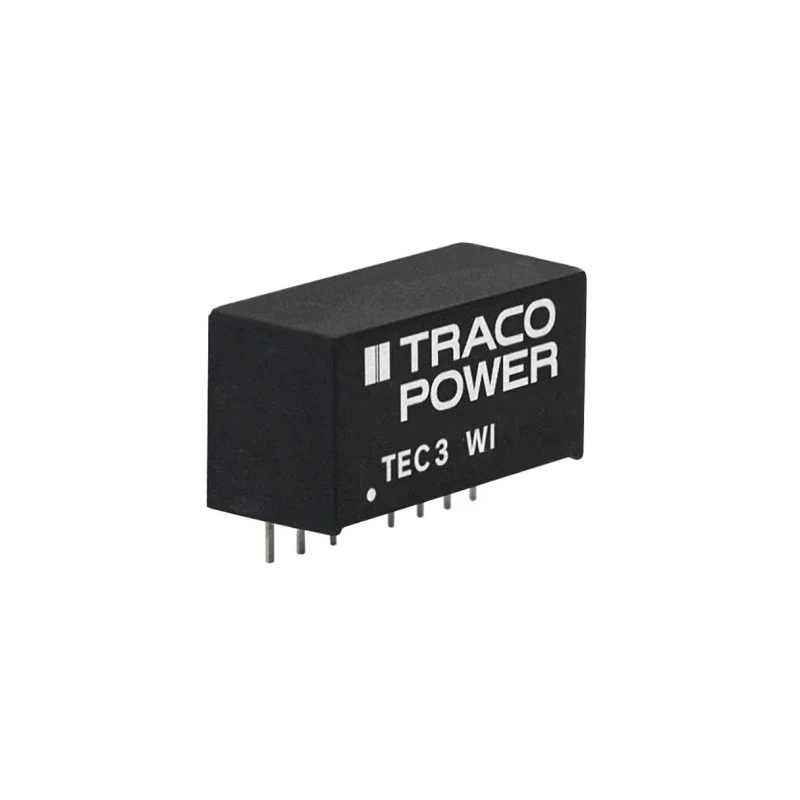

TRACOPOWER TEC 3WI SIP-8 DC/DC Converter 15V DC Output 200 mA 36V DC Input 3 W Power PCB Mount TEC 3-2413WI

TRACOPOWER TEC 3-2413WI is a high-performance DC/DC converter designed for industrial, electronic, and power supply applications, delivering a regulated 15V DC output at 200mA with a maximum power output of 3 Watts. The unit comes in a compact SIP-8 package optimized for PCB mounting, facilitating seamless integration into electronic designs.

This converter accepts a wide input voltage range from 9V DC minimum up to 36V DC maximum, featuring an ultra-wide 4:1 input ratio. Its high efficiency of 83% significantly reduces heat generation, allowing operation within a broad temperature range of -40°C to +90°C. The device provides robust I/O isolation voltage of 1600 VDC for enhanced electrical safety and noise immunity, suitable for stringent industrial environments.

The fully regulated output maintains stability over the entire load range from no load up to full load (0-100%) without requiring a minimum load. Continuous short circuit protection further enhances reliability, ensuring safe operation under fault conditions. The converter’s compact dimensions of 21.8mm length, 9.1mm width, and 11.2mm depth minimize PCB space consumption.

The product is compliant with RoHS environmental standards and benefits from a high MTBF value of 5,124,000 hours, reflecting its durability and quality. Manufactured in Taiwan, this TRACOPOWER TEC 3WI series device suits a variety of industrial, laboratory, HVAC, manufacturing, and embedded electrical applications where efficient, compact, and reliable power conversion is critical.

Supports wide input voltage range from 9V to 36V DC. PCB mount type with a compact SIP-8 package for easy integration. High efficiency of approximately 83% reduces thermal loss. I/O isolation voltage rating of 1600 VDC ensures safety and reliability.

Operating temperature range from -40°C to 90°C for harsh environments. Continuous short circuit protection enhances device durability. Fully regulated output over 0% to 100% load with no minimum load required. Designed for industrial and electronic component applications.

Extended mean time between failures (MTBF) of over 5 million hours. Compliant with RoHS standards and manufactured in Taiwan, Province Of China. Explore more TRACOPOWER products and DC/DC converters on EnvMart for reliable power supply solutions optimized for industrial and electronic applications.
