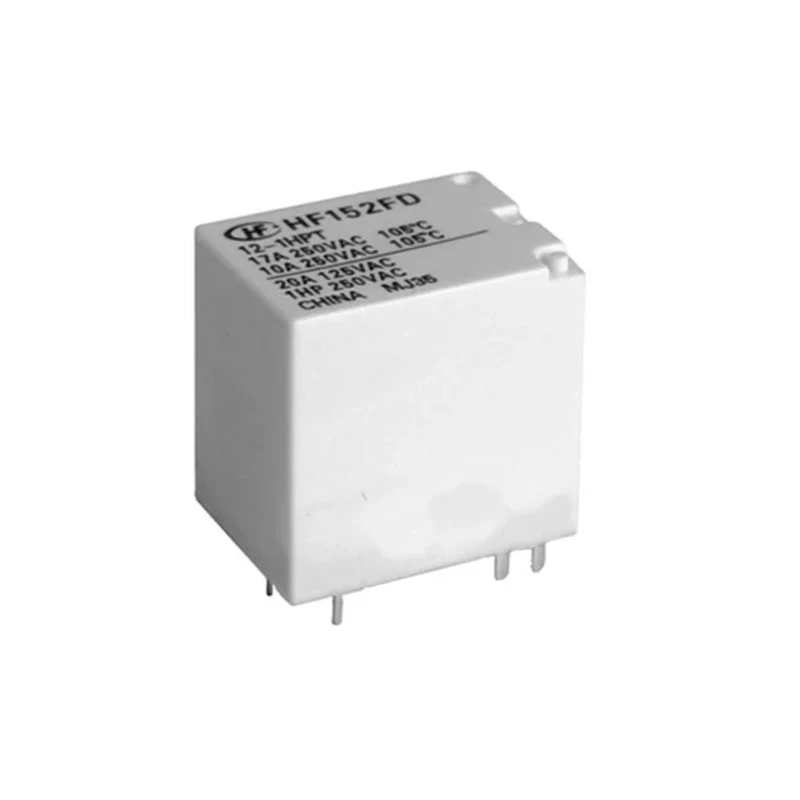

Hongfa Europe GMBH PCB Power Relay, 5V dc Coil, 17A Switching Current, SPDT HF152FD/5-1ZTF(335)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 20.6mm |
| Length | 21.2mm |
| Model | HF152FD/5-1ZTF(335) |
| Width | 16mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF152FD |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 17A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 70Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 360mW |
Key Features
- The relay is actuated by a 5V DC coil with a coil resistance of 70 ohms.
- Silver alloy contacts provide high electrical endurance and low contact resistance of 100 milliohms.
- Supports switching of up to 17A current and switching AC voltage up to 400V AC.
- Designed for PCB mounting with PCB pin terminal type and compact size of 21.2mm x 16mm x 20.6mm.
- Environmentally friendly product compliant with RoHS standards, suitable for industrial and automotive applications.
- Operating temperature range from -40°C to 105°C ensures durability in harsh conditions.
- High mechanical endurance with an expected life of 10 million cycles, resistant to vibration and abrasion.
Product Description
Hongfa Europe GMBH HF152FD/5-1ZTF(335) PCB power relay is a subminiature high power relay with a single pole double throw (SPDT) contact configuration. It features a 5V DC coil and allows switching currents up to 17A, making it ideal for various industrial, automotive, household appliance, telecommunication, and industrial machinery control applications.
The relay is designed for PCB mounting with PCB pin terminals and has dimensions of 21.2mm in length, 16mm width, and 20.6mm height. The coil resistance is 70 ohms drawing 360mW coil power consumption. Silver alloy contacts ensure reliable electrical performance with a contact resistance of 100 milliohms.
It supports switching voltages up to 400V AC with a switching power capacity of 4.7 kVA. The relay offers excellent mechanical endurance, lasting up to 10 million operational cycles, is resistant to vibration, and has a service temperature range of -40°C to 105°C, making it suitable for demanding environments.
This environmentally friendly relay is RoHS compliant and provides isolation voltage of 2.5 kV between coil and contacts. Its compact form factor and low power consumption make it an excellent component for space-saving PCB designs.
Typical applications include use as a control device in automotive systems, household appliances, industrial machinery, and telecommunications equipment. The relay is actuated by a 5V DC coil with 70 ohms coil resistance.
Silver alloy contacts deliver high electrical endurance and low contact resistance. Supports switching currents up to 17A and switching AC voltage up to 400V AC. Compact PCB mounting design with PCB pin terminals. Wide operating temperature from -40°C to 105°C ensures reliability in harsh conditions.
High mechanical endurance with up to 10 million life cycles and resistance to vibration and abrasion. RoHS compliant and environmentally friendly product.
Discover high quality Power Relays from Hongfa Europe GMBH at EnvMart to support your industrial, automotive, telecommunication, and household appliance projects. Browse our extensive catalog for more electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 17A.
It operates with a coil voltage of 5V DC and has a coil resistance of 70 ohms.
This relay has dimensions of 21.2mm in length, 16mm in width, and 20.6mm in height.
The relay features silver alloy contacts, which provide high electrical endurance and a low contact resistance of 100 milliohms.
It supports switching AC voltage up to 400V AC.
The operating temperature range for this relay is from -40°C to 105°C.
It has a high mechanical endurance with an expected life of up to 10 million cycles.
Yes, this relay is RoHS compliant, making it an environmentally friendly product.
The coil power consumption is 360mW.
It is designed for PCB mounting with PCB pin terminals.
This model is suitable for various applications including industrial, automotive, household appliances, and telecommunications.
The isolation voltage between the coil and contacts is 2.5 kV.
