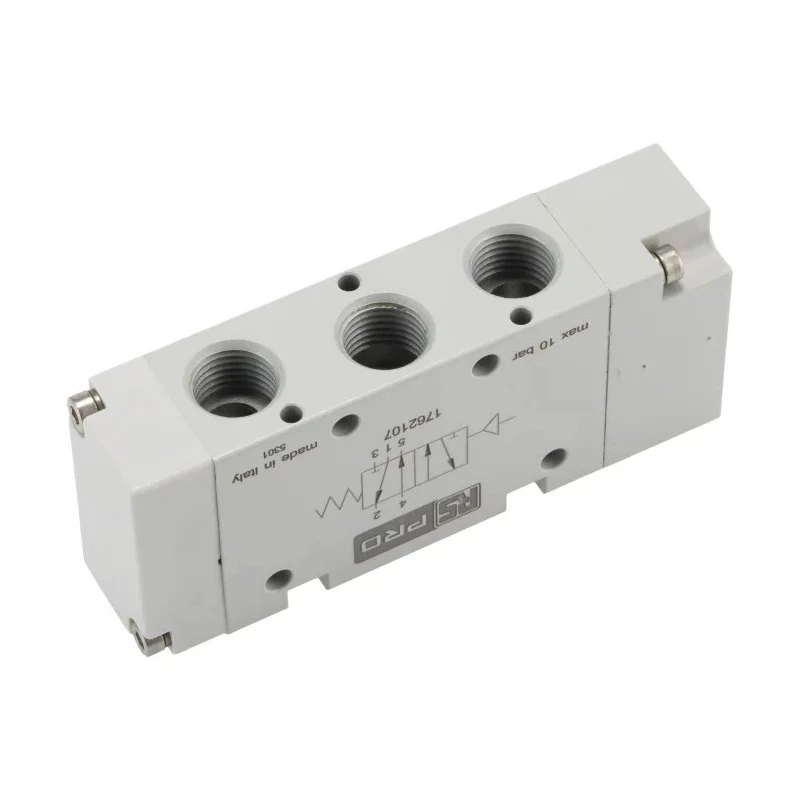

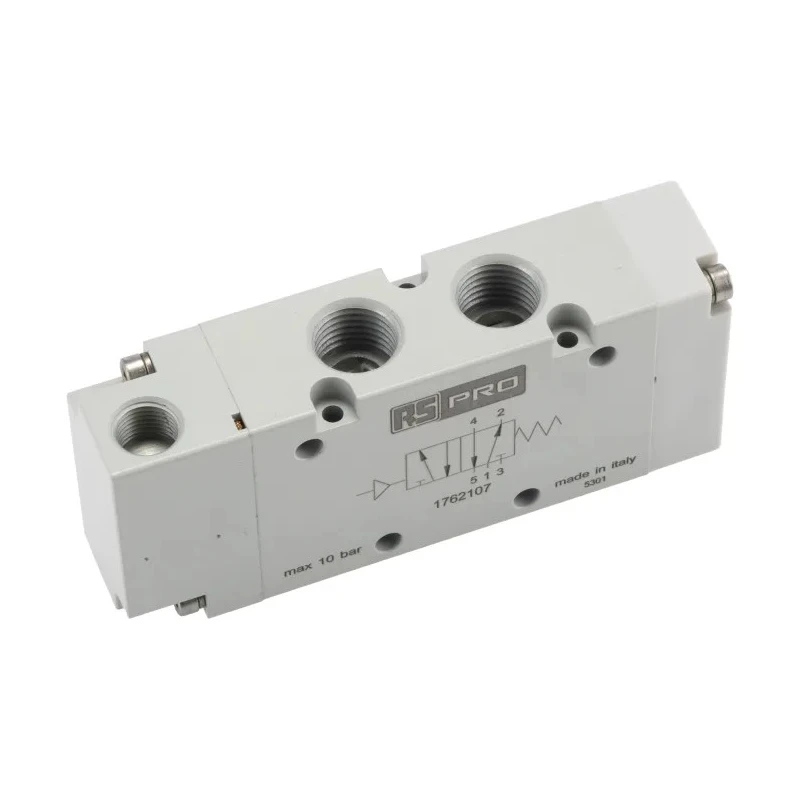

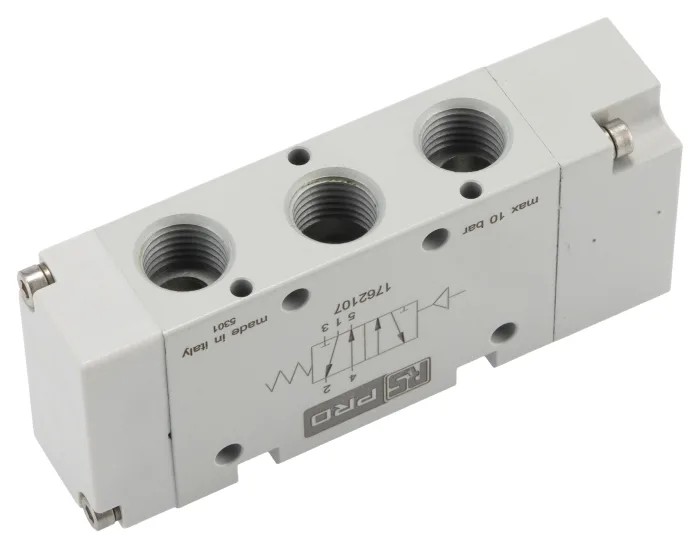

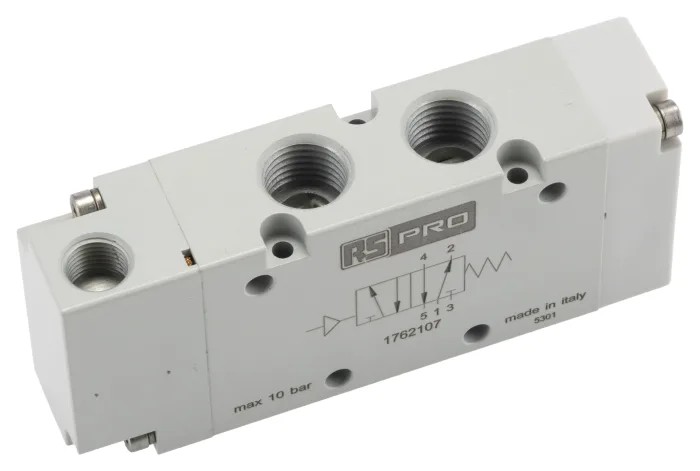

RS PRO Pneumatic 5/2 Monostable Solenoid Valve Aluminium Body 1/4 in Port Size 176-2107

RS PRO 176-2107 Pneumatic Solenoid Valve is a high-performance 5/2 monostable valve designed for pneumatic control applications. It features an aluminium body for robustness combined with nitrile rubber (NBR) seals ensuring tightness and durability under demanding conditions. Engineered to work with a port size of 1/4 inch and connection thread standard G, it supports maximum operating pressures up to 10 bar and pilot pressures ranging from 1 bar to 10 bar.

The valve provides a maximum flow rate of 1200 NL/min and has a compact footprint with dimensions of 94.9mm length, 60mm height, and 22mm width, allowing integration in compact pneumatic systems. Its single solenoid pneumatic actuation and base mount ensure reliable and stable operation in industrial environments.

The operating temperature tolerance ranges from -10°C to 60°C, making it suitable for varied operational settings. This valve is equipped with a plug socket type electrical connection that simplifies installation and maintenance. The 5-port configuration with one valve position (monostable) enables precise directional control of compressed air flow.

Certified to meet ATEX standards for hazardous areas and compliant with RoHS and REACH environmental directives, this solenoid valve is ideal for industrial, manufacturing, automation, and fluid power systems requiring robust and compliant pneumatic controls.

The valve series 01VP combines short change-over times and low change-over pressure for efficient system performance. It is manufactured in Italy, reflecting high quality and engineering standards.

Constructed with an aluminium body and NBR seal material for durability and chemical resistance. Designed for pneumatic actuation with a 5/2 monostable valve function providing directional control. Maximum operating pressure and pilot pressure rated at 10 bar ensuring robust performance.

Compact dimensions and base mount design facilitate easy installation in tight spaces. Complies with RoHS and REACH and certified for ATEX hazardous area operation. Electrical plug socket connection for reliable solenoid coil engagement.

Maximum flow rate of 1200 NL/min suitable for medium flow pneumatic applications.

This product suits applications in industrial automation, fluid power management, and pneumatic systems in manufacturing plants. RS PRO offers a range of valves optimized for performance and reliability in demanding technical environments. Explore related Pneumatic Solenoid Valves and pneumatic components in EnvMart's comprehensive industrial catalogue.
