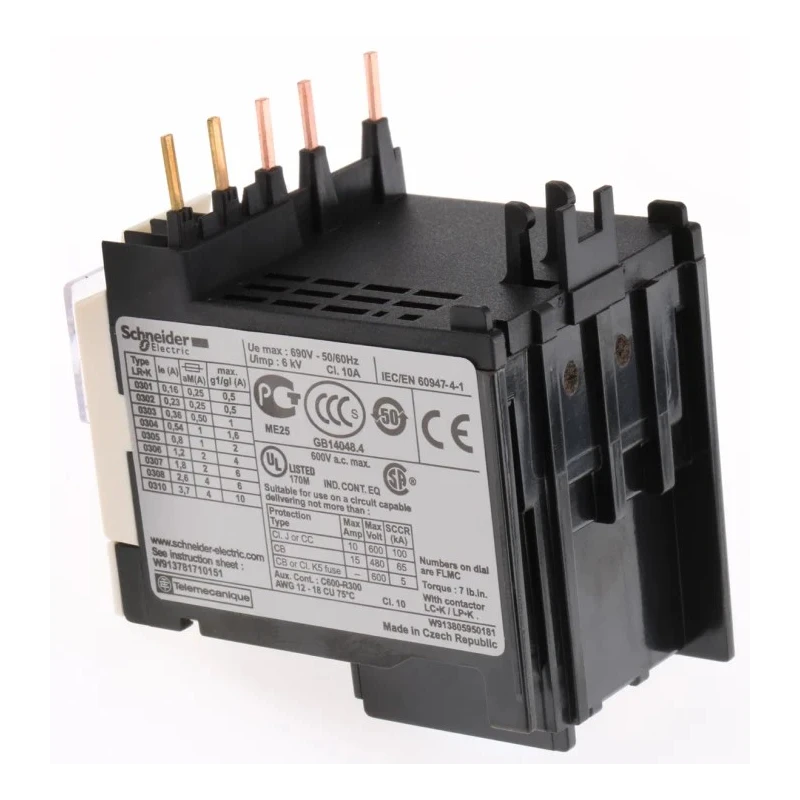

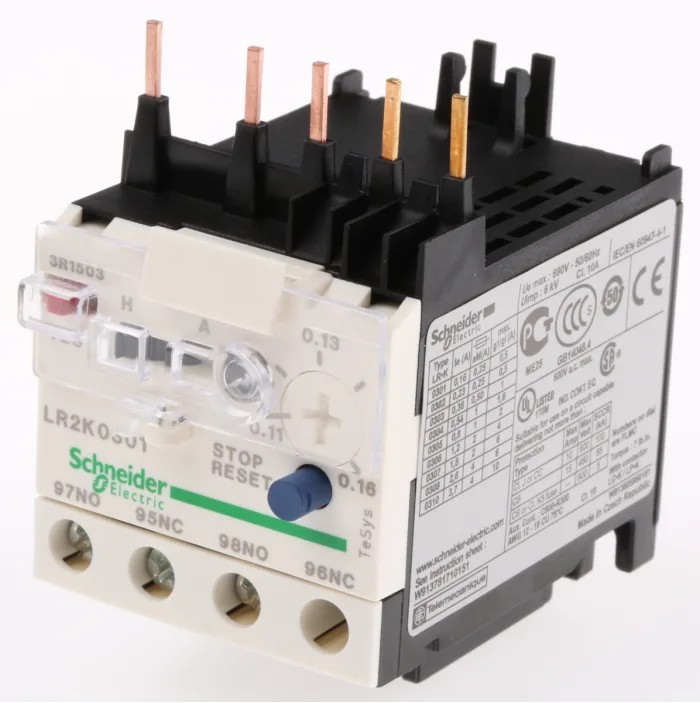

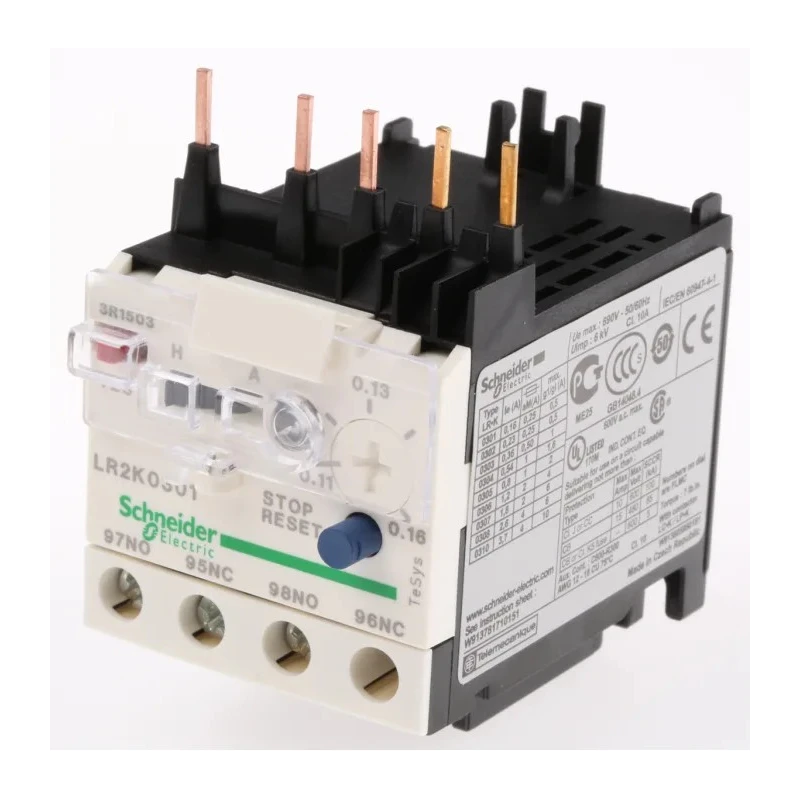

Schneider Electric TeSys Thermal Overload Relay 1 NO/1 NC 0.11-0.16A F.L.C 160mA Contact Rating 2W 250V dc LR2K0301

Schneider Electric LR2K0301 Thermal Overload Relay is a reliable and compact device designed specifically for industrial motor protection. It features an adjustable current range from 0.11 to 0.16 amperes and supports trip ratings suited for motor full load currents up to 0.16A. With 1 Normally Open (NO) and 1 Normally Closed (NC) contact, this relay efficiently detects overload and fault conditions to ensure prompt disconnection and protect motors from damage.

This model supports both automatic and manual reset options, adding flexibility for various control and maintenance requirements. Designed with a direct mount type and screw clamp terminals, installation and wiring are straightforward. The product is rated for 2 watts power and can handle control voltages of 250V and 690V DC with a contact voltage capability of 690V AC.

Dimensionally compact at 116mm length, 65mm depth, and 45mm width, it fits easily into electrical assemblies with IP2X ingress protection for safe operation in industrial environments. The thermal overload relay operates reliably within temperatures ranging from -20° to 55°C, making it robust for diverse working conditions.

Conforming to strict industry standards including IEC 60947, NF C 63-650, VDE 0660, and BS 4941, this relay is built to meet international quality and safety certifications. It is primarily used in industrial automation and motor control circuits to detect overloads and initiate timely trip commands to prevent motor faults.

Suitable for applications in manufacturing, automation, HVAC systems, and other industrial sectors, it ensures enhanced motor protection and operational efficiency. The device’s three poles and dual auxiliary contacts allow sophisticated control and signaling functionality.

This relay features a 1 Normally Open and 1 Normally Closed contact configuration. It supports a full load current rating from 0.11A to 0.16A. The contact current is rated at 160mA to ensure reliable operation. Compact dimensions with 116mm length, 65mm depth, and 45mm width allow easy installation.

Equipped with screw clamp terminals for secure connections and IP2X ingress protection. Designed to operate reliably between -20°C to 55°C ambient temperatures. Direct mounting under a contactor is supported for simplified assembly.

Conforms to international standards including IEC 60947 and NF C 63-650 for safety and quality. This overload relay is suitable for industrial motor protection applications requiring sensitive trip functions. Explore our extensive range of Overload Relays to find compatible and complementary products for your motor control requirements at EnvMart.
