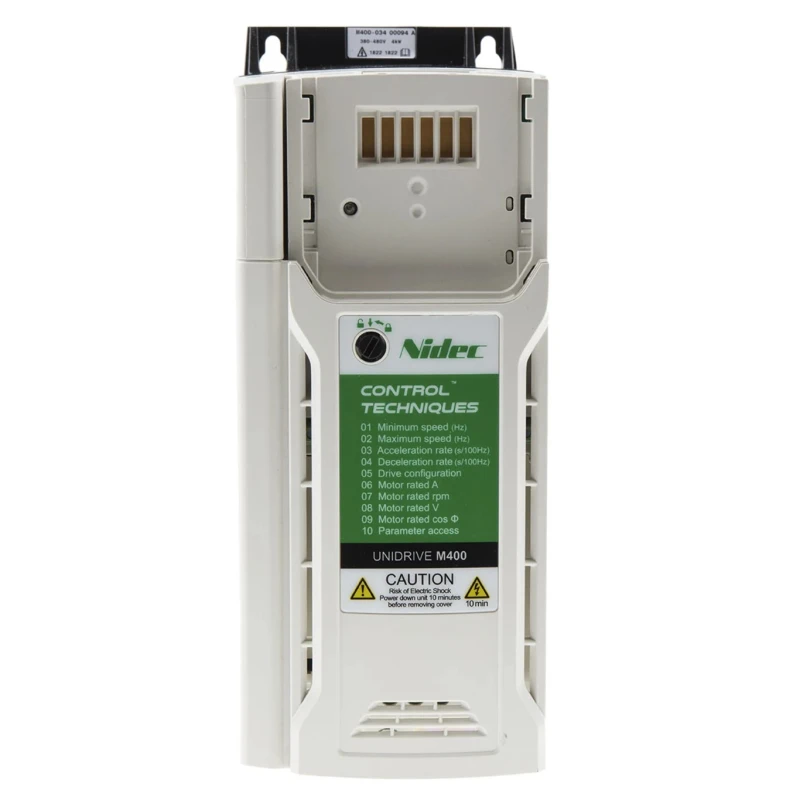

Control Techniques Inverter Drive 750 W 3 Phase Vector Control Panel Mount M400-02400023A10100AB100

Control Techniques M400-02400023A10100AB100 is a robust inverter drive designed for industrial and manufacturing automation. It provides a power rating of 750 W and operates on a 3 phase electrical supply with vector control drive technology, ensuring efficient and precise induction motor control. The device features a compact, panel mount form factor with overall dimensions length 205mm, width 75mm, and depth 150mm, suitable for integration within control panels and electrical enclosures.

This inverter drive supports a voltage operating range from a minimum supply voltage of 380V up to a maximum of 480V, with a peak output frequency of 550 Hz. It is rated for a maximum output current of 2.3 A. The drive incorporates rotor flux control (RFC-A) algorithms to enhance the stability and performance of induction motors at all power levels, critical for precise motor speed and torque regulation.

The device includes an advanced keypad with a user-friendly multi-language 3 line LCD display that provides rapid setup, clear diagnostic information, and intuitive navigation using four navigation buttons. Additionally, the integrated onboard PLC allows execution of complex sequencing and logic programs facilitating real-time machine control, which is ideal for industrial automation tasks.

Certified to international standards including CE, cULus, ISO, N1652, RoHS, SIL 3, and TUV, this inverter drive meets rigorous safety and quality benchmarks. Safety features include two Safe Torque Off (STO) inputs and an SI interface for optional fieldbus connectivity or extended I/O configurations, enabling seamless integration with safety systems to maximize uptime and reduce operational costs.

Designed to operate reliably within temperature ranges from -20°C to 40°C and an IP20 rated enclosure, this inverter drive is suitable for indoor industrial environments. It supports a wide range of automation applications including manufacturing, HVAC, material handling, and process control industries.

Equipped with advanced vector control and rotor flux control algorithms for motor stability. Intuitive multi-language LCD display facilitates rapid setup and diagnostics. Integrated PLC enables complex logic programming and real-time sequencing.

Complies with multiple safety and quality certifications for reliable operation. Compact panel mount design suitable for various industrial control panels. Wide operating temperature range with IP20 protection for indoor use.

The Control Techniques M400 series Inverter Drive represents a reliable and efficient solution for industrial motor control and automation systems. Explore more industrial and automation control products on EnvMart to suit your operational requirements.
