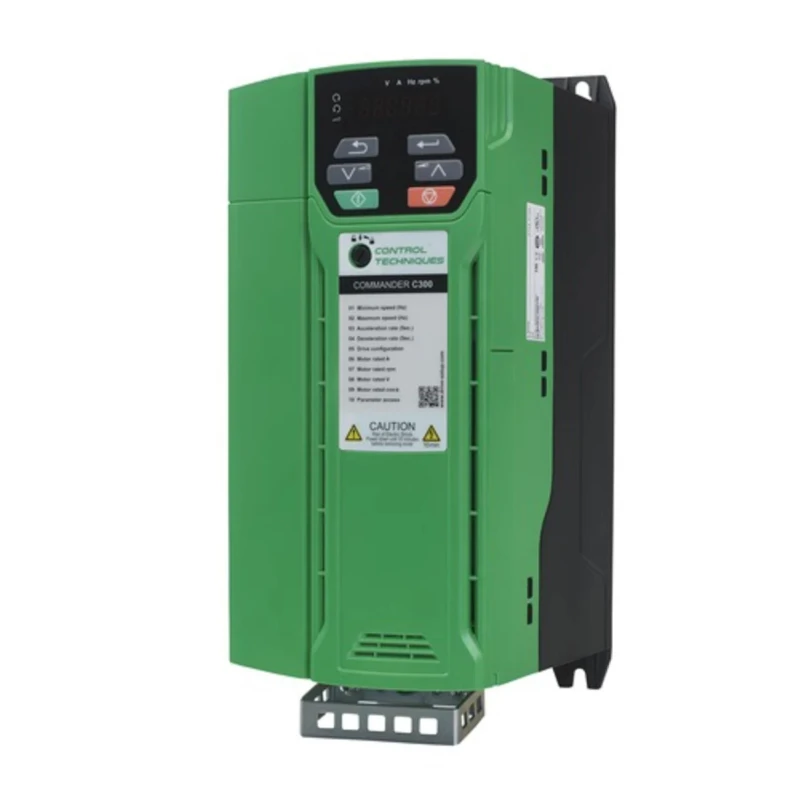

Control Techniques C300 Series Inverter Drive 5.5 kW, 3 Phase, 480V, 13.5 A, Panel Mount, IP20 C300-04400135
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Control Techniques |
| Model | C300-04400135 |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Mount Type | Panel |
| Overall Length | 115mm |
| Series | C300 |
| Overall Width | 175mm |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 40°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | -20°C |
| Number of Phases | 3 |
| Maximum Output Current | 13.5A |
| Standards/Approvals | UL, CE, cUL, EU, RCM, ISO, RoHS |
| Maximum Supply Voltage | 480V |
| Overall Depth | 277mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor |
Key Features
- Provides 5.5 kW output for robust motor control in demanding applications.
- Supports three-phase operation with input voltages from 380V to 480V.
- Delivers up to 13.5 A maximum output current suitable for high torque requirements.
- Panel-mount design ensures streamlined integration into electrical control panels.
- Features IP20 enclosure for safe operation in industrial environments.
- Offers variable speed drive capability with up to 550 Hz output frequency.
- Designed for AC motor compatibility and easy commissioning.
- Built-in PLC and plug-in options enable advanced control and automation.
Product Description
Control Techniques C300-04400135 inverter drive is part of the Commander C300 series, designed to offer advanced control and energy efficiency for industrial AC motor applications. With a 5.5 kW power rating, this drive is capable of managing high-performance operations in manufacturing, material handling, HVAC systems, and water treatment facilities.
The inverter drive supports three-phase configuration, accepting a wide range of supply voltages from 380V to 480V, and delivers a maximum output current of 13.5 A. The panel-mount form factor provides easy integration into electrical cabinets and automation control panels, while the IP20 enclosure ensures reliable operation in protected industrial settings. Designed for flexible installations, the unit offers a compact footprint with dimensions of 115 mm length, 175 mm width, and 277 mm depth.
The C300-04400135 includes variable speed control with output frequencies up to 550 Hz, allowing precise regulation of AC motors for process optimization and energy savings. Compatibility with AC motors and advanced features like Dual Safe Torque Off (STO) and onboard PLC make it suitable for applications that require both safety and programmability.
Installation and commissioning are straightforward, requiring only four primary parameters to get started. The drive’s plug-in expansion options enable further advanced control, while high overload capability (up to 180%) supports demanding, high-torque applications. Robust design ensures longevity and reliability in continuous industrial operations.
Suitable for industrial automation, manufacturing, water treatment, machine building, and commercial HVAC or pumping installations, the C300 series provides enhanced motor pairing, smooth performance control, and easy system integration. Energy-saving features contribute to reduced operational costs and improved sustainability.
Offers advanced motor performance and efficient speed control for various industries. Plug-in expansion and PLC onboard enable programmable automation and system flexibility. High overload capacity makes it ideal for tough applications needing extra torque.
IP20 rating and panel mount design support direct installation in controlled environments. Supports requirements in industrial, laboratory, and commercial automation sectors. Explore more products in the Inverter Drive category, and discover advanced solutions from Control Techniques with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this inverter drive is 5.5 kW, suitable for robust motor control in demanding applications.
It delivers a maximum output current of 13.5 A, which is suitable for high torque requirements in various applications.
This inverter drive supports input voltages ranging from 380V to 480V, allowing for flexibility in installation.
The C300-04400135 can deliver output frequencies of up to 550 Hz, enabling variable speed control for AC motors.
This model has dimensions of 115 mm in length, 175 mm in width, and 277 mm in depth, making it compact for panel mounting.
It features an IP20 enclosure, ensuring safe operation in protected industrial environments.
Yes, this inverter drive is designed for compatibility with AC motors, making it suitable for various industrial applications.
The C300-04400135 is designed for panel mounting, allowing for streamlined integration into electrical control panels.
The maximum operating temperature is 40°C, while the minimum operating temperature is -20°C, suitable for various environments.
This inverter drive complies with several standards, including UL, CE, cUL, EU, RCM, ISO, and RoHS.
The C300-04400135 includes energy-saving features that contribute to reduced operational costs and improved sustainability.
It includes built-in PLC capabilities and plug-in options for advanced control and automation, enhancing system flexibility.
