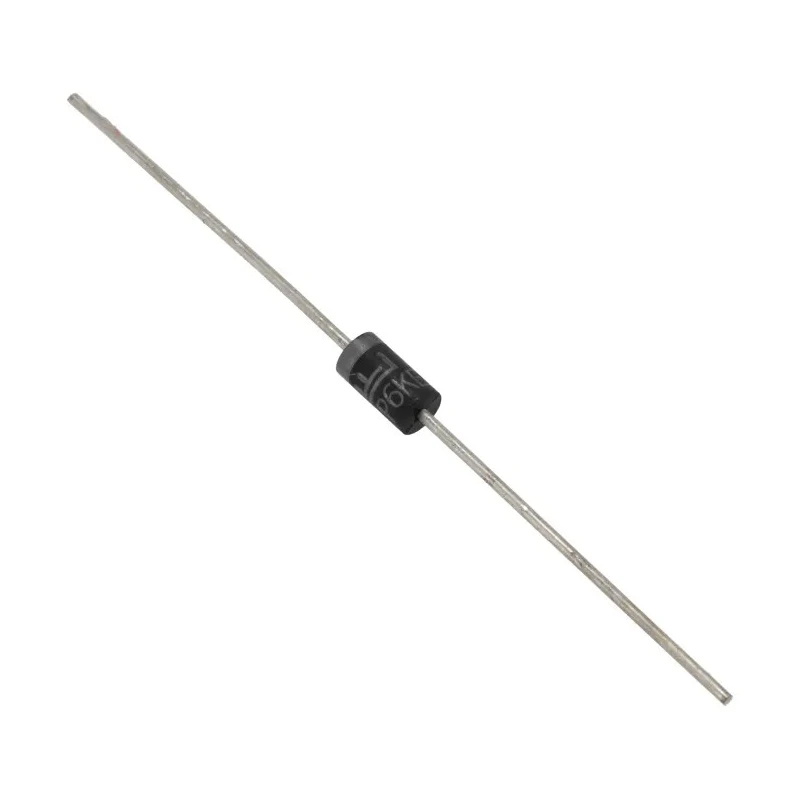

Littelfuse Uni-Directional TVS Diode, Single Element, 600 W Peak Pulse Power, 2-Pin DO-204 Package P6KE6.8A

Free Delivery in India | Lowest Global Shipping Charges

Littelfuse Uni-Directional TVS Diode, Single Element, 600 W Peak Pulse Power, 2-Pin DO-204 Package P6KE6.8A

Name: Littelfuse Uni-Directional TVS Diode, Single Element, 600 W Peak Pulse Power, 2-Pin DO-204 Package P6KE6.8A
Brand: LITTELFUSE
SKU: 95885
Price: 0.31 USD
Availability: InStock



Category TVS Diode Brand LITTELFUSE Condition New

Specifications

Country of Origin	China
Diameter	3.6mm
Brand	Littelfuse
Length	7.6mm
Model	P6KE6.8A
Mount Type	Through Hole
Series	P6KE
Maximum Operating Temperature	175°C
Package Type	DO-204
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	10.5V
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	6.45V
Maximum Reverse Stand-off Voltage Vwm	5.8V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	10mA
Maximum Peak Pulse Current Ippm	58.1A
Maximum Reverse Leakage Current	1mA
High temperature soldering guaranteed	265Â°C./10 seconds/ 0.375â€,(9.5mm) lead length, 51bs., (2.3kg) tension
Fast response time	typically less than 1.0ps from 0 Volts to BV min
STMicroelectronics P6KE68A, Uni-Directional TVS Diode, 600W, 2-Pin DO-15Brand	STMicroelectronics

Key Features

Single-element diode configuration with 2-pin through-hole DO-204 package.
Uni-directional type suitable for transient voltage suppression.
Minimum breakdown voltage of 6.45 V and maximum reverse stand-off voltage of 5.8 V.
Peak pulse power dissipation capable of 600 W at 10x1000 µs waveform.
Clamping voltage of 10.5 V ensures excellent transient voltage suppression.
Operating temperature range from -55°C up to 175°C for reliable performance.
Fast response time typically less than 1.0 picosecond from 0 V to breakdown voltage.
Glass passivated junction ensures durability and stability.

Product Description

Littelfuse P6KE6.8A Uni-Directional TVS Diode is a robust semiconductor designed for industrial and electronic applications requiring protection against voltage transients caused by lightning or switching events. This single-element diode is housed in a through-hole DO-204 package featuring 2 pins, making it suitable for board-level installations where transient voltage suppression is critical.

Its low clamping voltage of 10.5 V and 600 W peak pulse power rating ensure that sensitive components are shielded from dangerous voltage spikes. The diode operates reliably over a temperature range from -55°C to 175°C, with a fast response time of typically less than 1 picosecond, providing excellent protection under diverse operating conditions.

This Littelfuse diode features a glass passivated junction for enhanced performance stability, matte tin lead-free plating for environmental compliance, and is designed to withstand high temperature soldering cycles up to 265°C. Measuring 7.6 mm in length and 3.6 mm in diameter, it fits standard through-hole mounting requirements.

Applications include protection for power supplies, telecommunications equipment, consumer electronics, and industrial control circuits. It effectively suppresses transient voltage spikes and surges to prolong equipment lifespan and ensure operational safety.

Single-element diode configuration with 2-pin through-hole DO-204 package. Uni-directional transient voltage suppression capability with a 600 W peak pulse power rating. Broad operating temperature range of -55°C to 175°C ensuring robust industrial use.

Fast 1 picosecond response time provides superior protection against voltage spikes. Lead-free matte tin plating and high temperature soldering compatibility. Compact size for easy PCB integration with 7.6 mm length and 3.6 mm diameter.

Glass passivated junction for stable and durable performance. Applications across industrial, telecommunications, and consumer electronics sectors. Explore a wide range of TVS Diodes and protection components in EnvMart's semiconductor category for your electronic system protection needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Littelfuse P6KE6.8A has a peak pulse power dissipation capability of 600 W at a 10x1000 µs waveform.

The minimum breakdown voltage of this diode is 6.45 V.

The clamping voltage for the P6KE6.8A is 10.5 V, which helps ensure effective transient voltage suppression.

This model operates reliably over a temperature range from -55°C to 175°C.

It has a fast response time, typically less than 1.0 picosecond from 0 V to breakdown voltage.

The diode measures 7.6 mm in length and 3.6 mm in diameter, fitting standard through-hole mounting requirements.

The Littelfuse P6KE6.8A is housed in a DO-204 package with a 2-pin configuration.

The maximum reverse stand-off voltage is 5.8 V.

This diode is suitable for applications including power supplies, telecommunications equipment, consumer electronics, and industrial control circuits.

The maximum peak pulse current for the P6KE6.8A is 58.1 A.

Yes, it is guaranteed to withstand high temperature soldering cycles up to 265°C for 10 seconds.

The diode features matte tin lead-free plating for environmental compliance.
