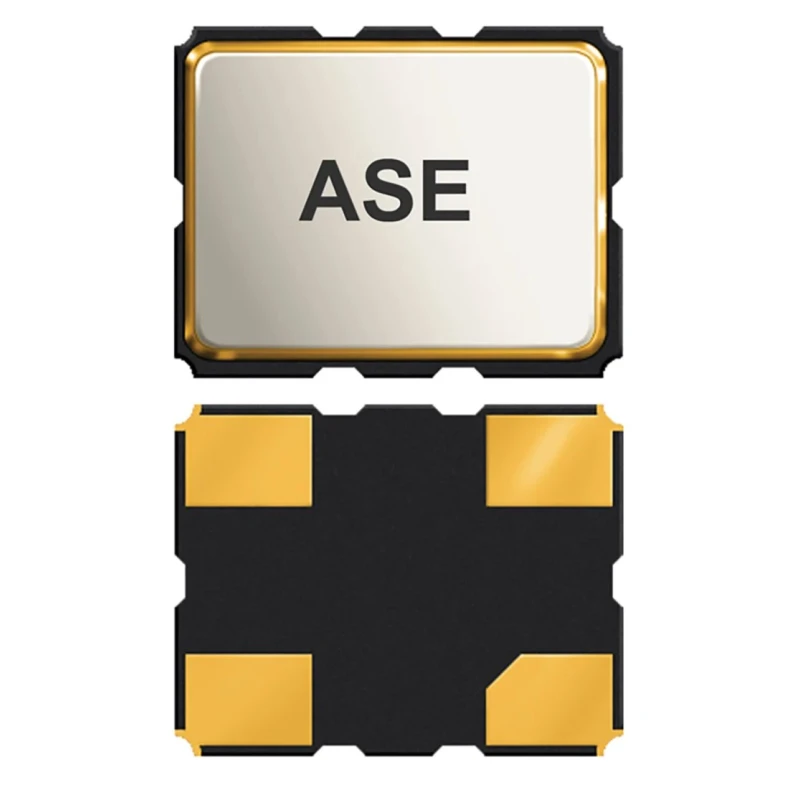

Abracon 50MHz XO Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASE-50.000MHZ-LC-T

Name: Abracon 50MHz XO Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASE-50.000MHZ-LC-T
Brand: Abracon
SKU: 95805



Category Crystal Oscillator Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1.2mm
Length	3.2mm
Model	ASE-50.000MHZ-LC-T
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	ASE
Maximum Operating Temperature	85°C
Output Frequency	50MHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Pin Count	4
Maximum Supply Voltage	3.47V
Minimum Supply Voltage	3.14V
Oscillator Type	XO
Output Level	CMOS
Abracon, 50MHz Clock Oscillator, ±50ppm CMOS, 4-Pin SMD ASE-50.000MHz-LCBrand	Abracon

Key Features

Oscillator type is XO, ensuring stable signal generation.
Output frequency is 50MHz suitable for various electronic applications.
CMOS output level supports low power digital circuits.
Operating voltage range is 3.14V to 3.47V for reliable performance.
Temperature operation range spans from -40°C to 85°C for broad environmental use.
Compact size with dimensions length 3.2mm, width 2.5mm, height 1.2mm allows for space-saving installations.
Low current consumption designed for efficient power usage.
Package includes tape and reel for automated PCB assembly.

Product Description

Abracon ASE-50.000MHZ-LC-T is a 50MHz XO Oscillator featuring ±50 ppm frequency stability and CMOS output in a compact 4-pin surface mount package. It operates within a supply voltage range of 3.14V to 3.47V and supports temperature operation from -40°C up to 85°C. This oscillator is designed to provide high precision timing with low RMS jitter and low current consumption suitable for modern digital electronics.

The device’s low profile design with dimensions of 3.2mm length, 2.5mm width, and 1.2mm height allows integration in space-constrained applications. The tape and reel packaging facilitates efficient automated PCB assembly processes in industrial and commercial manufacturing environments.

This oscillator supports a tri-state function, enabling enhanced signal control in complex circuits. Typical applications include CCD clocks for video tape recorders, wireless communication devices, personal digital assistants, laptops, solid state drives, and other consumer and industrial electronics requiring stable time bases.

XO oscillator type ensures reliable and stable frequency output. 50MHz frequency output suitable for high-performance electronics. CMOS output level compatible with low power logic circuits. Operating voltage from 3.14V to 3.47V guarantees stable operation.

Wide operating temperature range from -40°C to 85°C supports diverse environments. Compact 4-pin surface mount package for efficient PC board layout. Low height profile of 1.2mm suitable for slim devices. Designed for use in CCD clocks, VTR cameras, PDAs, wireless communication, laptops, and SSDs.

Deploy Abracon ASE series oscillators in electronics manufacturing, industrial equipment, consumer electronics, communication devices, and testing laboratories to achieve precise timing with robust environmental tolerance. Browse EnvMart for more Abracon Crystal Oscillators and related components.
