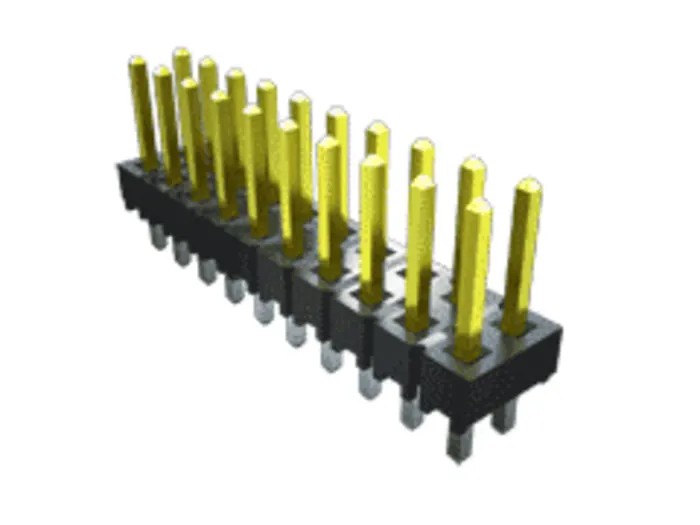

Samtec TSW Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSW-110-07-F-D

Samtec TSW-110-07-F-D is a high-quality series of straight through hole pin headers engineered for robust electronic connectivity. This model includes 20 female contacts arranged in 2 rows with a precise 2.54 mm pitch, making it ideal for various PCB applications requiring reliable mating and electrical performance.

The connector housing is made of glass filled polyester, ensuring enhanced mechanical strength and thermal resistance. Contacts are phosphor bronze plated with gold, providing low resistance and excellent corrosion resistance, suitable for harsh industrial environments.

It supports a current rating of 4.7A and a maximum voltage of 465V, capable of handling demanding electronic circuitry industrially. The connector features a through-hole termination type with a male contact gender and straight orientation to facilitate board-to-board or wire-to-board connections with ease.

Operating temperature ranges from -55°C to 125°C permit use in various environmental conditions, from cold storage to heated enclosures. This product is recognized as an Extended Life Product™, offering superior longevity with up to 2,500 mating cycles and resistance to mixed flowing gas corrosion.

Its unshrouded design facilitates straightforward pin access, and the pin system uses a .025” square post for positive and secure electrical contact. Special features include multiple plating and ruggedizing options to customize performance and cost efficiency based on application needs.

This pin header is widely used in industrial, manufacturing, electronic assemblies, automation systems, and laboratory equipment, providing dependable interconnect solutions across diverse sectors.

Constructed with glass filled polyester housing for durability. Phosphor bronze contacts plated with gold for reliable conductivity. Rated for 4.7A current and 465V voltage operation. Designed with a straight orientation and through-hole mount type for board-to-board and wire-to-board connections.

Operates reliably between -55°C to 125°C for broad temperature tolerance. Termination is solder type with male contact gender. Offers many plating and ruggedizing options to optimize cost and performance. Extremely durable, with high mating cycles and extended life technology.
