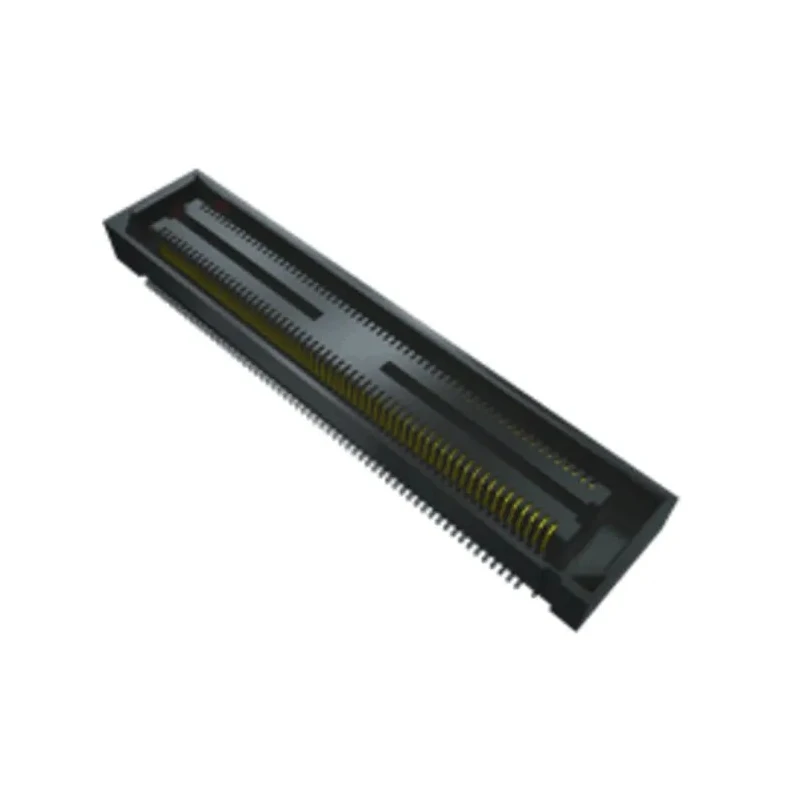

Samtec BSH Series Straight Surface PCB Socket 60-Contact 2 Row 0.5 mm Pitch Solder BSH-030-01-F-D-A
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 275V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | BSH-030-01-F-D-A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | BSH |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Connector System | Board-to-Board |
| Row Pitch | 5.73mm |
Key Features
- Features 60 contacts arranged in 2 rows for reliable connectivity.
- 0.5 mm pitch optimizes compact PCB design and high-density layouts.
- Constructed with liquid crystal polymer housing material for high durability.
- Supports 12 A current and voltage rating up to 275 V for robust electrical performance.
- Includes gold plated bronze contacts to enhance conductivity and resist corrosion.
- Designed for surface mount with solder termination for secure mounting.
- Operates efficiently in a temperature range from -55°C to 125°C.
- Row pitch of 5.73 mm ensures compatibility with standard PCB designs.
Product Description
Samtec BSH-030-01-F-D-A is a straight surface PCB socket from the BSH Series, engineered for high-density board-to-board connections. It features 60 contacts across 2 rows with a fine 0.5 mm pitch.
The housing is made from liquid crystal polymer, providing excellent mechanical strength and thermal stability. The contacts are bronze with gold plating, which ensures superior electrical conductivity and protects against oxidation, making it suitable for industrial and commercial electronic applications.
This socket supports a current capacity of 12 A and voltage up to 275 V. It is designed for surface mounting with solder termination type, allowing secure and durable PCB assemblies. The operating temperature range from -55°C to 125°C allows use in harsh environments.
The connector includes six standard positions up to 300 I/O pins and features Extended Life Product™ technology enhancing lifespan and reliability. The row pitch measures 5.73 mm, matching standard PCB specifications.
Widely used in industrial electronics, telecommunications, manufacturing equipment, and other professional electronic device assemblies, this product ensures precise alignment and dependable electrical contact.
60 contacts arranged in 2 rows suitable for high-density interfaces. 0.5 mm pitch for compact PCB layouts and space savings. Durable liquid crystal polymer housing with excellent heat resistance. 12 A current and 275 V voltage rating suitable for demanding applications.
Gold-plated bronze contacts enhance corrosion resistance and conductivity. Surface mount solder termination for robust PCB integration. Wide operating temperature range (-55°C to 125°C) for reliability in varied environments.
Samtec BSH series with Extended Life Product™ technology for enhanced performance.
Choose Samtec BSH-030-01-F-D-A PCB Socket for reliable and compact board-to-board connection solutions in industrial, telecommunication, and manufacturing electronics setups. Explore more high-precision electronic components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of 12 A and a voltage rating of up to 275 V, making it suitable for demanding electrical applications.
It features a 0.5 mm pitch with 60 contacts arranged in 2 rows, optimized for high-density board-to-board connections.
The maximum operating temperature for this PCB socket is 125°C, allowing it to function effectively in high-temperature environments.
The housing is constructed from liquid crystal polymer, providing excellent mechanical strength and thermal stability.
It features a solder termination type designed for surface mounting, ensuring secure and durable PCB integration.
The row pitch measures 5.73 mm, which ensures compatibility with standard PCB designs.
The contacts are made of bronze and are gold-plated to enhance conductivity and resist corrosion.
This PCB socket operates efficiently in temperatures as low as -55°C, making it suitable for harsh environments.
It is widely used in industrial electronics, telecommunications, and manufacturing equipment for reliable board-to-board connections.
It incorporates Extended Life Product™ technology, which enhances its lifespan and reliability in various applications.
This model features a total of 60 contacts, arranged in 2 rows, suitable for high-density interfaces.
It is classified as a board-to-board connector system, designed specifically for interconnecting PCBs.
