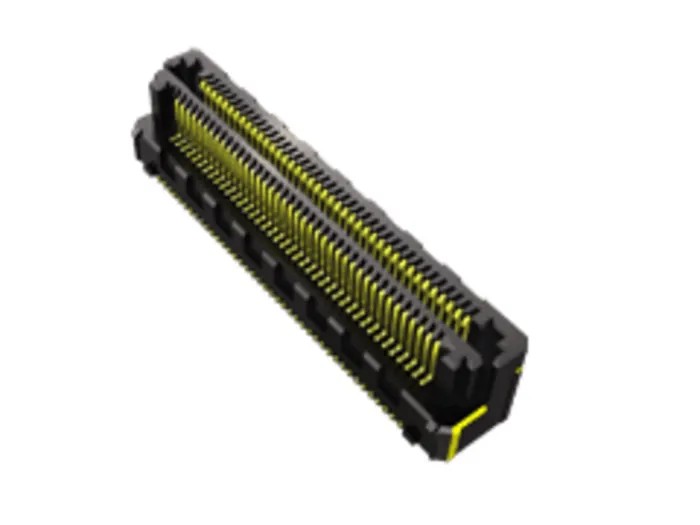

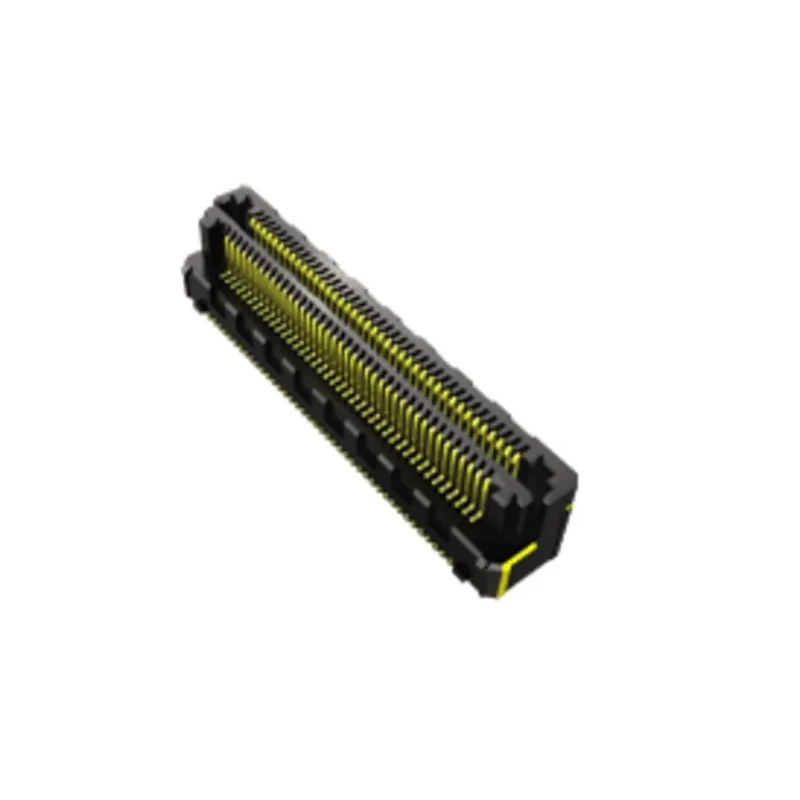

Samtec LSHM Series Right Angle Surface PCB Header, 40 Contacts, 0.5 mm Pitch, 2 Row, Shrouded LSHM-120-01-L-DH-A-S-K-TR

Samtec presents the LSHM-120-01-L-DH-A-S-K-TR model from their LSHM Series, a Right Angle Surface PCB Header designed to facilitate board-to-board connections with 40 contacts and a fine 0.5 mm pitch. This high-performance connector features a robust liquid crystal polymer housing that ensures mechanical strength and thermal stability up to 125°C while withstanding low temperatures down to -55°C.

The device utilizes phosphor bronze contacts plated in gold, which deliver excellent conductivity and durability, contributing to a reliable electrical interface. Its shrouded design protects the male contacts, enhancing safety and signal integrity in dense electronic assemblies. This PCB Header supports currents up to 1.9A and voltages of 160V, suitable for various demanding electronic configurations.

The LSHM series includes a 0.50 mm Razor Beam™ high-speed hermaphroditic terminal/socket strip offering dependable performance with mating and unmating forces approximately 4 to 6 times greater than typical micro pitch connectors, making the connections secure and robust. The self-mating system simplifies inventory management by supporting parallel, perpendicular, and coplanar mounting configurations, which aids in versatile applications across industrial automation, electronic instrumentation, and telecommunications equipment.

Additional advantages of this series include options for shielded models, impacting EMI/RFI considerations in precision circuits. The connector's solder termination method ensures strong physical and electrical bonds on PCBs, perfect for surface mount assembly lines.

This product is an indispensable component in electronic manufacturing, providing enhanced mechanical and electrical performance with compact design benefits ideal for high-density PCB layouts. Whether in prototype designs or volume industrial production, the LSHM Series Right Angle Surface PCB Header is engineered for superior reliability and ease of integration.

Designed for board-to-board connection with 2 rows and right angle orientation. Housing crafted from Liquid Crystal Polymer ensures durability and stability. Phosphor Bronze contacts plated with gold provide excellent conductivity and corrosion resistance.

Shrouded design offers added protection to contacts during operation. Operates reliably in temperatures from -55°C to 125°C, supporting demanding environments. Supports a maximum voltage of 160V and current capacity of 1.9A for robust electrical performance.

Mating and unmating forces approximately 4-6 times greater than typical micro pitch connectors for secure connections. Includes 0.5 mm Razor Beam™ high-speed hermaphroditic terminal/socket strip technology. Self-mating system reduces inventory cost by enabling parallel, perpendicular, and coplanar system configurations.

Ideal for industrial, electronic, telecommunications, and instrumentation applications. Explore more high-quality electronic components and connectors in the Electronics & Electricals category at EnvMart for all your industrial and commercial applications.
