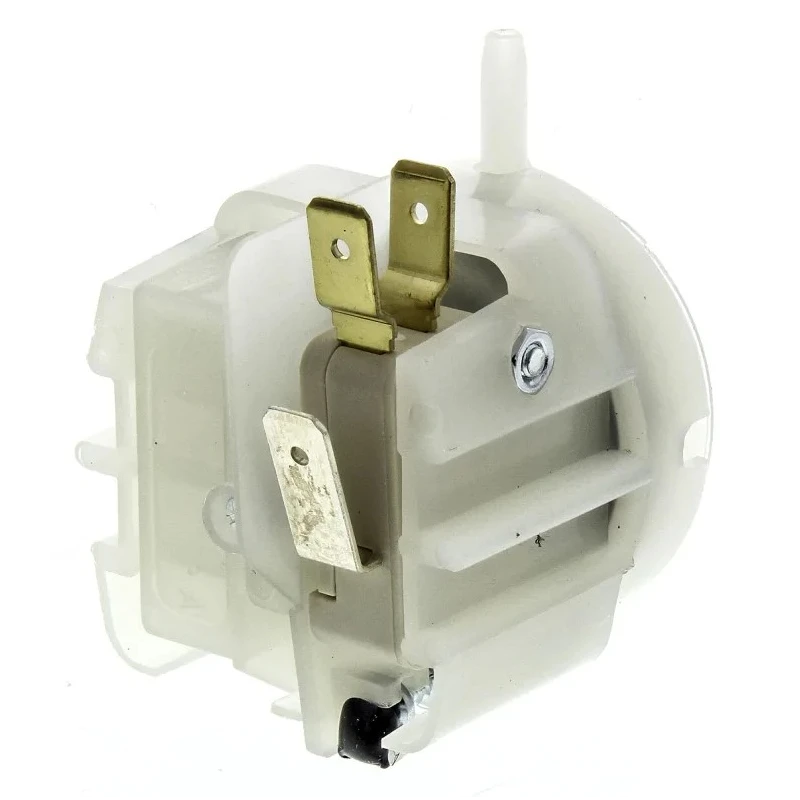

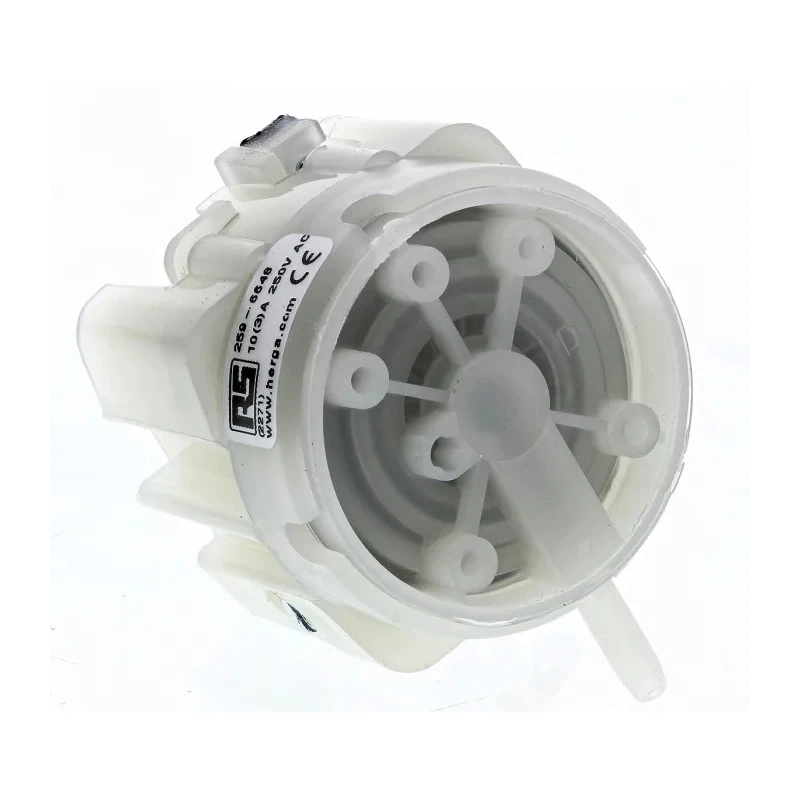

Herga Low Pressure Sensor 1 CO Contact Configuration, 4 mm Port Size, 250V Voltage, 62 mbar Max Pressure Model 6731-0026

Herga 6731-0026 is a high-quality low pressure sensor designed for reliable operation in various industrial environments. This sensor features a 1 CO contact configuration and a 4 mm port size, suitable for monitoring low pressure up to 62 mbar. It is engineered to handle multiple media, including water, compressed air, gas, oil, and oxygen, making it versatile for fluid power and pneumatic applications.

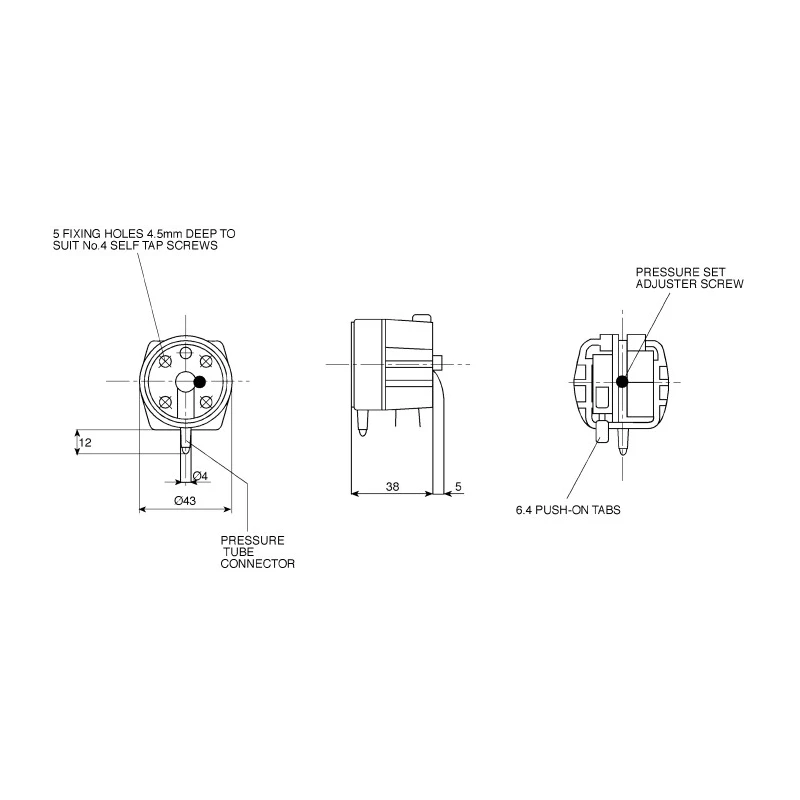

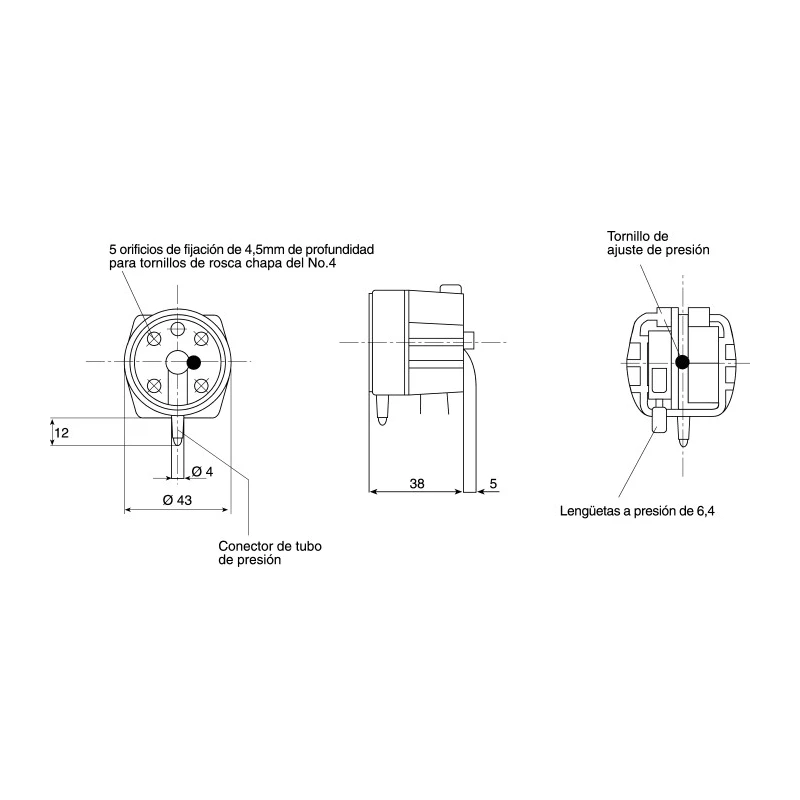

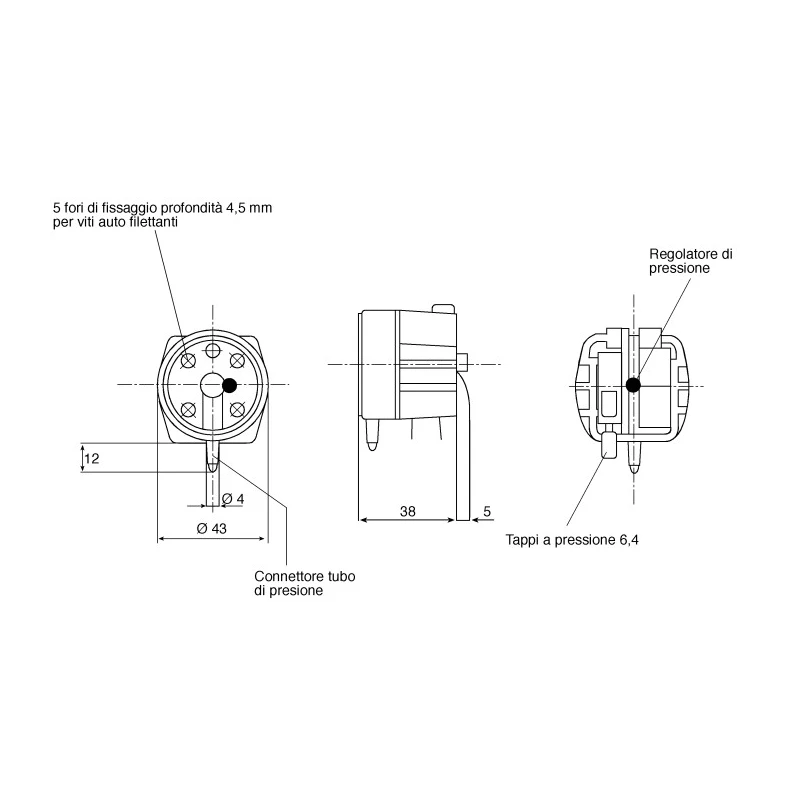

The sensor operates at 250V voltage and is capable of functioning within a broad temperature range between -40°C and 85°C. Its robust construction uses Nylon 12 housing with a neoprene diaphragm and stainless steel spring, ensuring long-term durability and resistance to wear. The design includes five fixing holes on a 28.5 pcd to allow easy and secure mounting using No. 4 self-tapping screws.

This sensor complies with numerous international standards and approvals, including ENEC, EN, UL, CE, and CSA, providing assurance on product safety and performance. It is explicitly noted that this sensor is not suitable for vacuum or differential pressure applications, which should be considered during deployment.

The pressure sensor features a 4 mm port size for effective media interface. Supports suitable medias including water, compressed air, gas, oil, and oxygen. Operates safely at voltages up to 250V ensuring stable electrical performance.

Designed for a wide temperature range from -40°C to 85°C to accommodate diverse environments. Constructed with Nylon 12 housing, neoprene diaphragm, and stainless steel spring for durability. Includes 5 fixing holes on 28.5 pcd for secure mounting with No. 4 self-tapping screws.

Complies with ENEC, EN, UL, CE, and CSA standards for safety and quality assurance. Not suitable for vacuum or differential pressure applications.

This pressure sensor is ideal for use in industrial, manufacturing, HVAC, fluid power, and pneumatic systems requiring precision low pressure detection. It is engineered for reliable and safe operation in demanding conditions. Explore more Pressure Sensors and related pneumatic components in the Sensors category at EnvMart.
