Herga 6450 Series Push Button Switch Momentary Panel Mount IP67 250V AC 2A 6450-0001

Herga 6450-0001 Push Button Switch is a high-quality momentary switch designed for panel mounting. Rated IP67 for water resistance and with a maximum operating voltage of 250 V AC and current of 2A, it provides robust and safe control in demanding industrial environments.

The switch features a white actuator button that is soft-touch and reliable, offering a bellows actuation system that uses compressed air to operate electrical contacts remotely. This technology provides complete electrical isolation between the operator and the electrical circuit, enhancing safety especially in hazardous areas.

With compact dimensions of 135 mm length, 50 mm width, and 25 mm height, it is suited for space-constrained panel installations. The device operates reliably up to 120°C, making it suitable for high-temperature applications.

Certification to UL and CSA standards ensures product compliance and quality. This switch is widely used in environments such as battery charging rooms, laboratories, garages, or any location with explosive gases, vapors, or powders where electrical arcing could be hazardous.

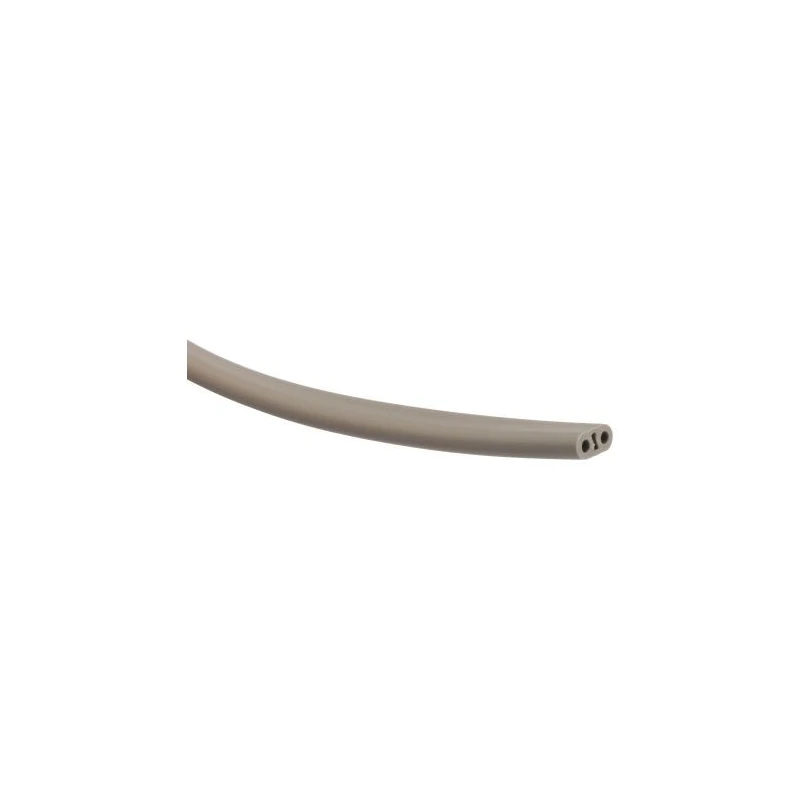

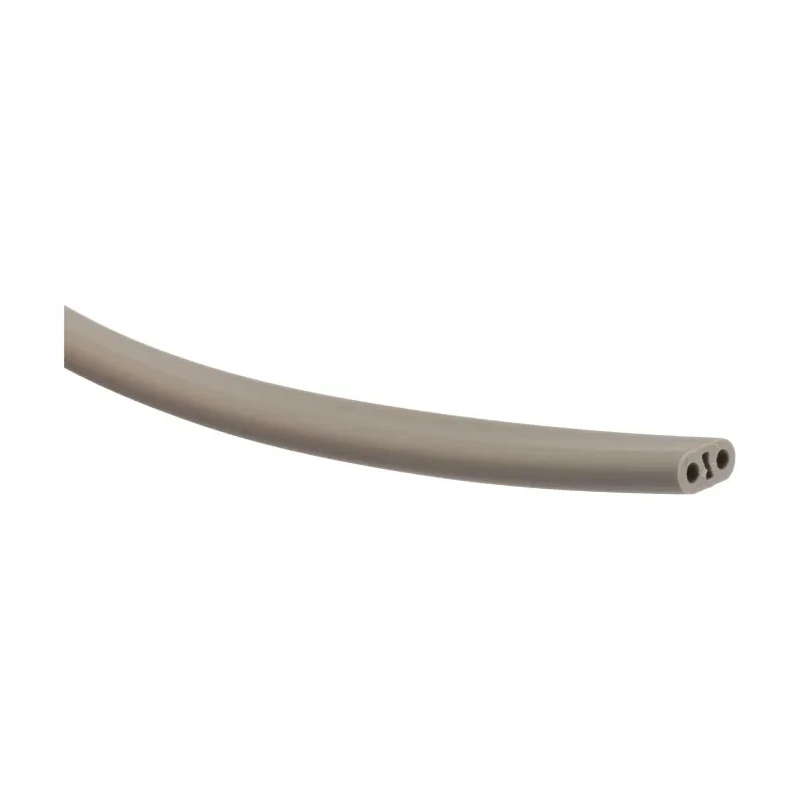

The air-operated switch system enhances safety by enabling remote switching through air tubing and bellows, preventing direct electrical contact in wet or explosive atmospheres. Operates with momentary switch action providing reliable on-off control.

Features a white button actuator for clear visibility and ease of use. Designed for panel mounting with solder-type terminals ensuring secure electrical connection. Robust construction with an IP67 rating ensures waterproof protection for harsh environments.

Compact dimensions: 135 mm length, 50 mm width, 25 mm height, suitable for compact installations. Rated for maximum operating temperature of 120°C for durable performance. Certified to UL and CSA standards ensuring safety and compliance.

Ideal for use in hazardous environments such as battery charging rooms, laboratories, and garages. Bellows actuation enhances operator safety by providing electrical isolation. Suitable for use where electrical arcing dangers exist due to explosive atmospheres.

This Herga push button switch is an essential component for industrial, laboratory, automation, and electrical control applications, combining safety, reliability, and compact design. Explore more push button switches and components on EnvMart.
