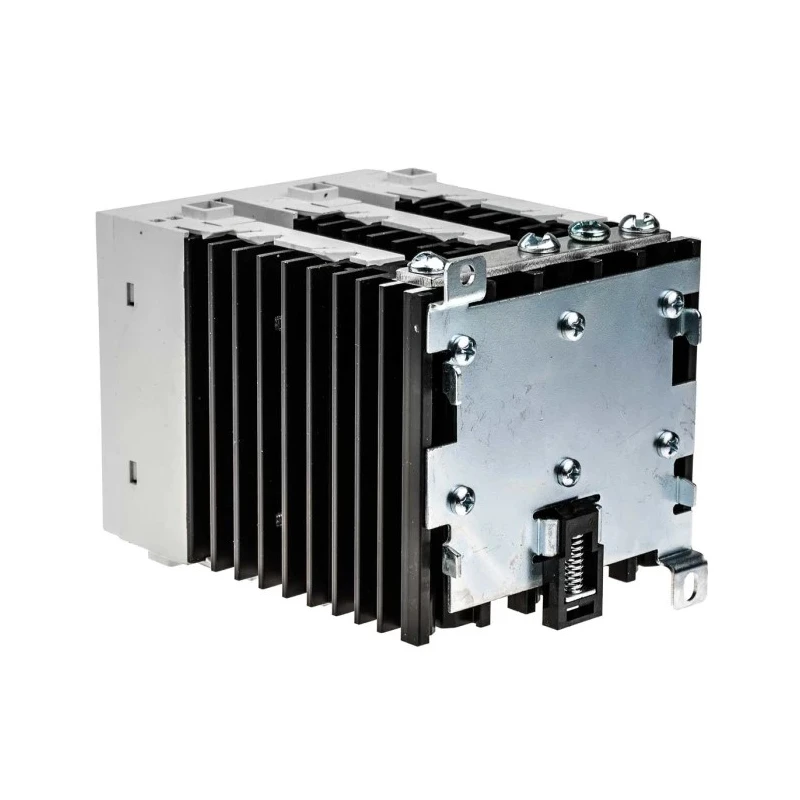

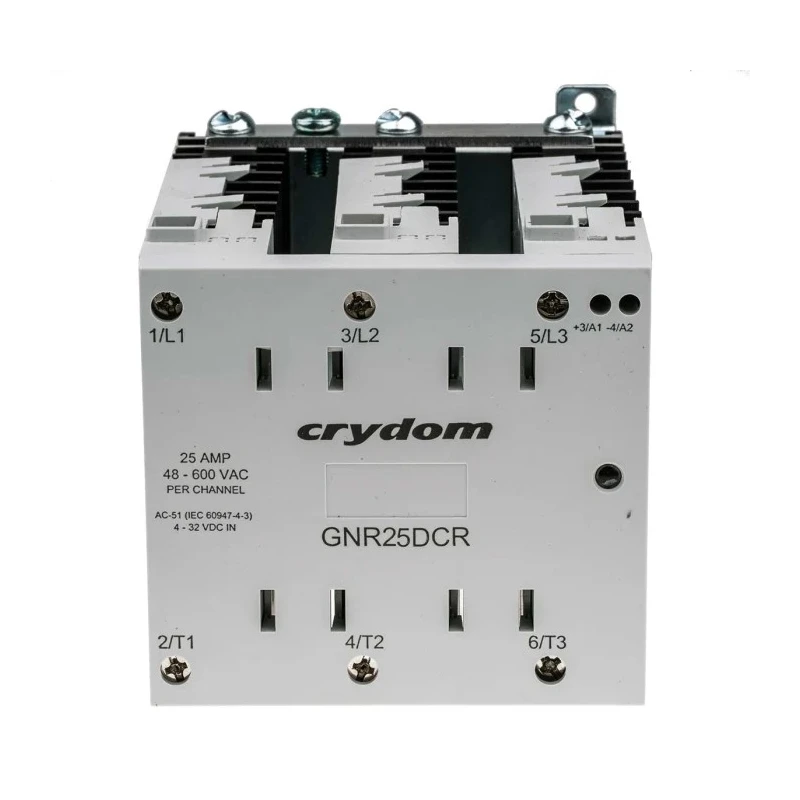

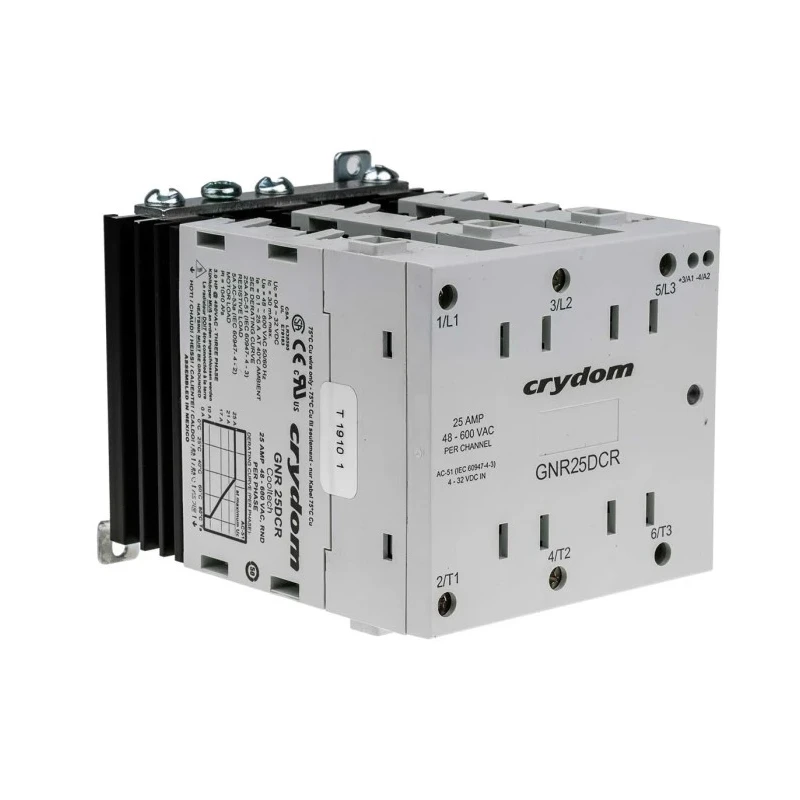

Crouzet GNR Series Solid State Relay 25 A Load 600 Vrms Load Panel Mount 32V dc Control GNR25DCR

Crydom GNR25DCR Solid State Relay is a high-performance device designed for industrial and automation applications requiring switching of AC and DC loads up to 25 A with a maximum load voltage of 600 Vrms. The relay is designed for panel mount installation, featuring a durable screw terminal connection and compact dimensions measuring 97 mm in height and 90 mm in length.

This relay series incorporates advanced Direct Bond Copper (DBC) substrate technology providing excellent thermal performance for enhanced reliability in demanding environments. The instantaneous switching function ensures rapid activation, minimizing switching delays for precise control.

Crydom GNR relays include an LED input status indicator for easy operation monitoring and feature built-in overvoltage protection for AC output versions, increasing safety and longevity. Compliance with international standards such as CE, CSA, and UL further assures quality and safe usage in industrial settings.

The device is capable of operating within a temperature range of -20°C to 80°C, making it suitable for a wide variety of environments. Additionally, the device features a low off-state leakage current of 0.25 mArms and a capacitance value of 8 pF, contributing to efficient energy use and minimal interference.

Common applications include industrial automation, manufacturing equipment control, HVAC system integration, and other commercial and industrial electrical control panels. The use of solid state relays eliminates mechanical wear and extends operational life compared to conventional electromechanical relays.

Supports instantaneous switching function for rapid and reliable operation. Equipped with LED input status indicator for visual operation confirmation. Features Direct Bond Copper (DBC) substrate for superior thermal performance.

Includes built-in overvoltage protection on all AC output relays. Complies with CE, CSA, and UL standards for safety and reliability. Designed for panel mount installation with screw-type terminals. Operates in a temperature range from -20°C to 80°C.

Off-state leakage current is minimized to 0.25 mArms to reduce power loss. Compact dimensions with a height of 97 mm and length of 90 mm.

Crydom products are widely recognized for quality and reliability. Browse the Electronics & Electricals Relays & Contactors category at EnvMart for more compatible Solid State Relay solutions.
