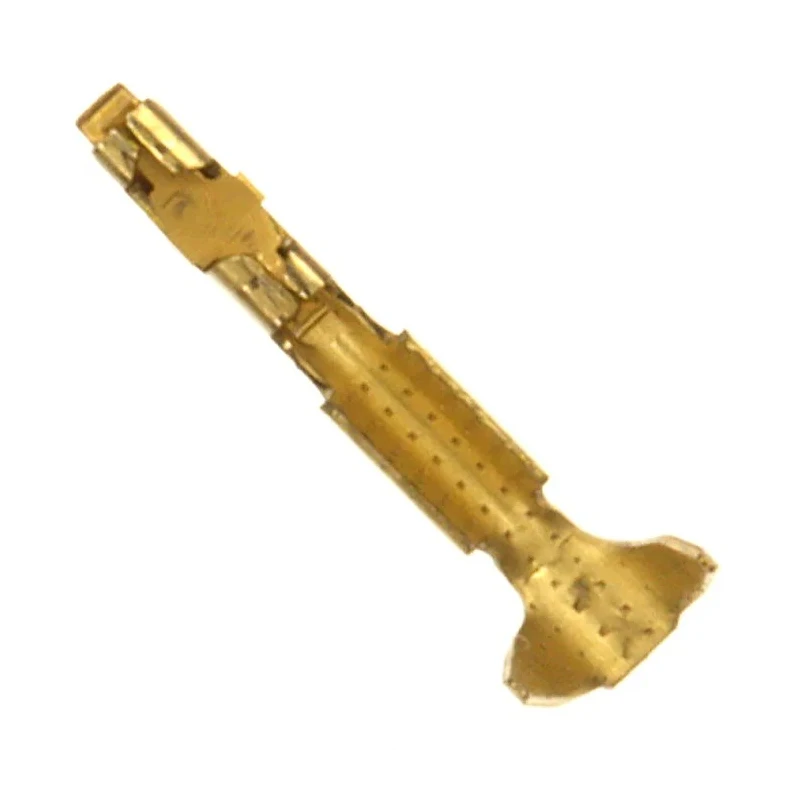

Amphenol Communications Solutions Mini-PV Series Female Crimp Terminal, 3A, Gold Plated Copper Contact, Crimp 48234-002LF

Amphenol Communications Solutions 48234-002LF is a Mini-PV Series Female Crimp Terminal designed for connecting discrete wires to printed circuit boards (PCBs) with high reliability and durability. It supports currents up to 3 amperes and wire gauge sizes from 26 AWG minimum to 22 AWG maximum. The contact features gold plating over copper material which enables excellent electrical conductivity and corrosion resistance.

The crimp terminal incorporates a dual-metal construction with a brass body that maintains gas-tight crimp terminations and a beryllium copper spring to provide strong retention force at mating interfaces. This design supports up to 1000 mating cycles without degradation. The contact's termination type is crimp, making it suitable for various industrial and commercial applications requiring secure wire terminations.

Operating temperature ranges from -40°C to 105°C, allowing usage in harsh environmental conditions. The Mini-PV series terminal is compatible with Mini-Latch connector housings, supporting modular connection systems for ease of use and maintenance. Available spring pressures allow customization of insertion and withdrawal forces to meet specific application needs.

Applications include communications equipment, instrumentation panels, industrial machinery, white goods, automotive electronics, data systems, medical devices, consumer electronics, and military avionics. This terminal ensures reliable connections with a maximum contact resistance of 2 milliohms, essential for maintaining signal integrity and power delivery in demanding installations.

The contact is made from copper with gold plating for reliable electrical conduction. Dual-metal construction supports 1000 mating cycles for long-term durability. Brass body ensures gas-tight crimp termination for reliable connections.

High retention beryllium copper spring provides strong mating force. Designed for use with Mini-Latch connector housing for versatile connectivity. Wide temperature range from -40°C to 105°C for operation in harsh environments.

Available with customizable spring pressures to adjust insertion and withdrawal forces. Supports wire sizes from 26 AWG minimum to 22 AWG maximum. Rated for 3A continuous current for diverse electronic applications. Maximum contact resistance of 2 milliohms ensures signal integrity.

This product is offered new and made in compliance with rigorous performance standards, making it an excellent choice for electronics manufacturing, maintenance, and repair operations. Explore more solutions in the Crimp Contacts category at EnvMart for high-quality connector components.
