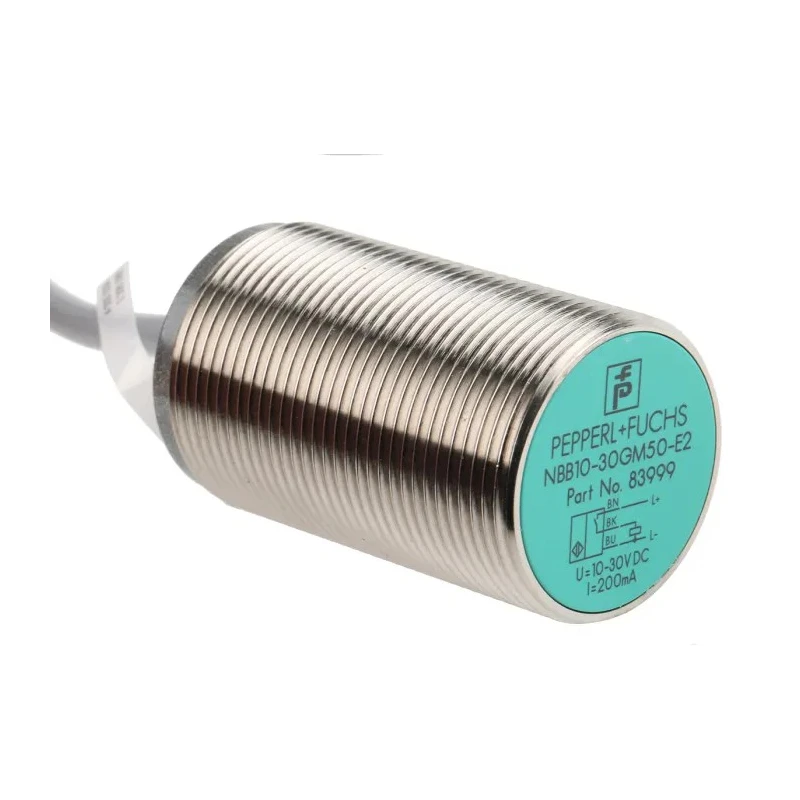

RS PRO Threaded Barrel Inductive Proximity Sensor M30 PNP 36V 200mA 100 mm NBB10-30GM50-E2
Specifications
| Country of Origin | Singapore |
|---|---|
| Brand | RS PRO |
| Length | 50mm |
| Model | NBB10-30GM50-E2 |
| Depth | 30mm |
| IP Rating | IP68 |
| Width | 30mm |
| Mount Type | Flush |
| Housing Material | Brass White Bronze Coated |
| Output type | PNP |
| Maximum Operating Temperature | 85°C |
| Thread Size | M30 |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | Pre-Cabled |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 1.1kHz |
| Standards/Approvals | DNV GL rules for classification - Ships |
| Maximum Supply Voltage | 36V |
| Maximum Detection | 100mm |
Key Features
- Equipped with a shielded, threaded barrel design for flush mounting.
- Features brass housing with white bronze coating for durability and IP68 protection rating.
- Operates reliably from -40°C to 85°C temperature range.
- Includes a pre-cabled terminal type with 2m PVC cable for easy installation.
- Maximum switching frequency of 1.1 kHz ensures fast response in industrial automation.

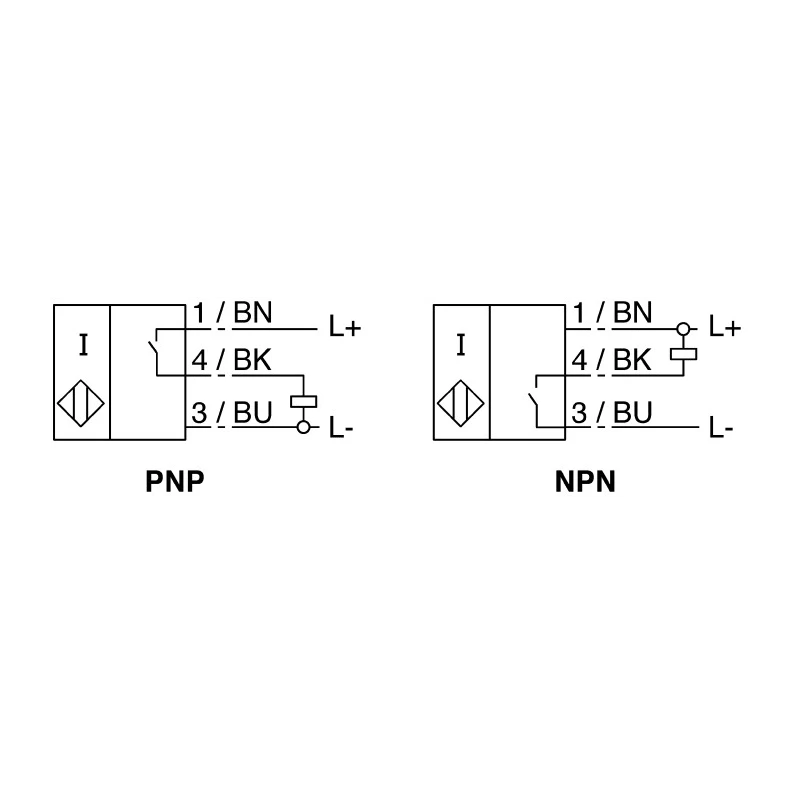

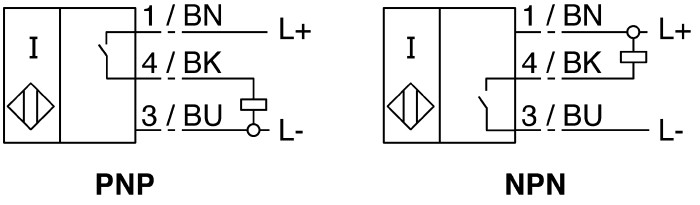

- PNP output type with 36V DC maximum voltage supports standard control systems.
- Complies with DNV GL classification rules, suitable for shipboard use.
- Manufactured in Singapore ensuring high quality standards.
Product Description
Pepperl + Fuchs NBB10-30GM50-E2 threaded barrel inductive Proximity Sensor operates at 36V DC with 200mA switching current and provides a maximum detection distance of 100 mm, making it ideal for precise object sensing in industrial automation and control applications.
This sensor features a robust brass body with white bronze coating and a PBT face, offering excellent durability and corrosion resistance. Its IP68 rating guarantees ingress protection against dust and water, suitable for harsh environments.

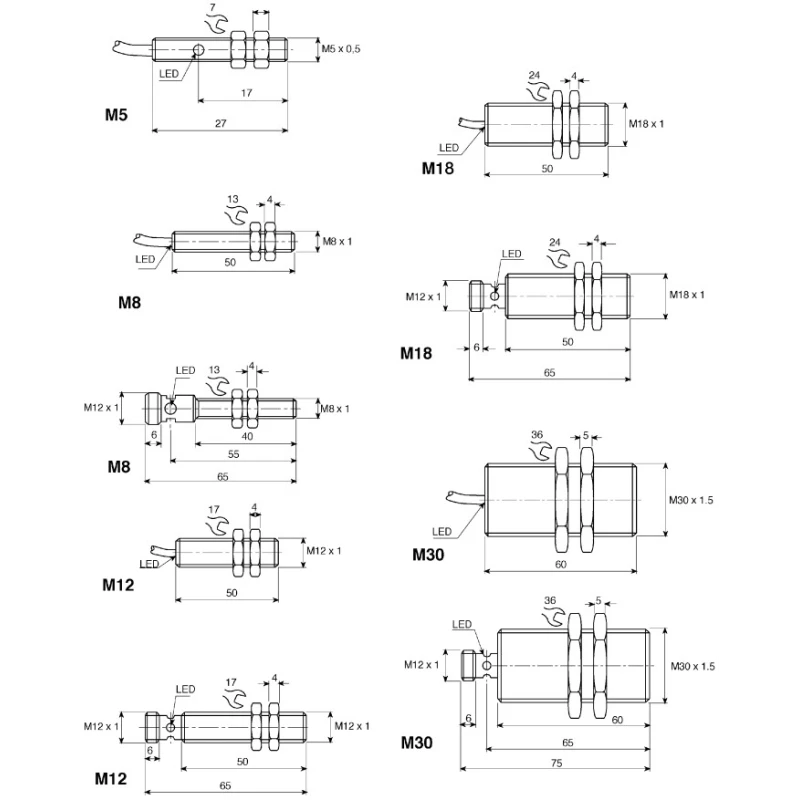

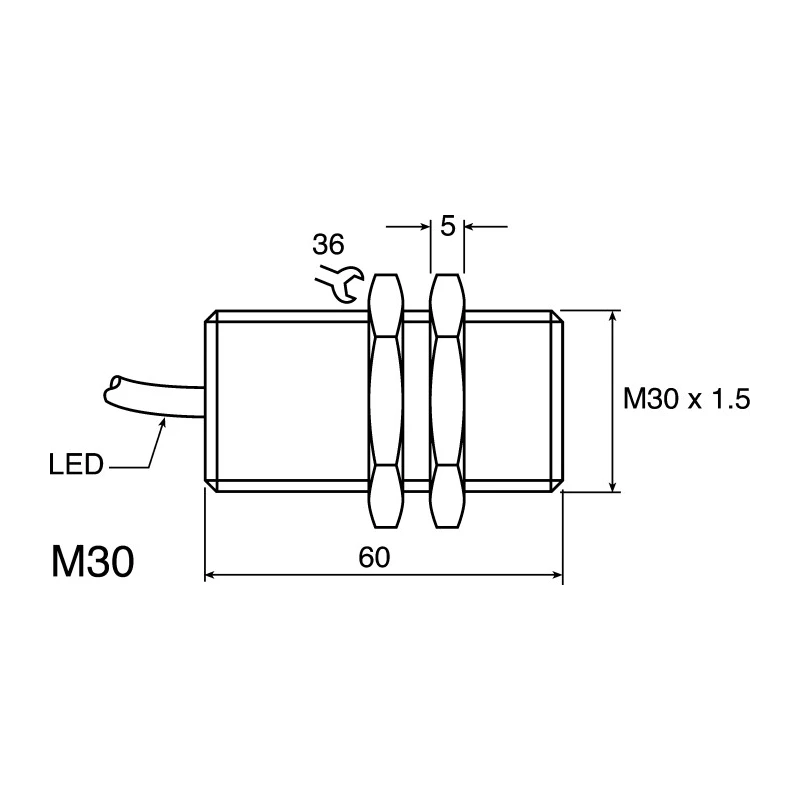

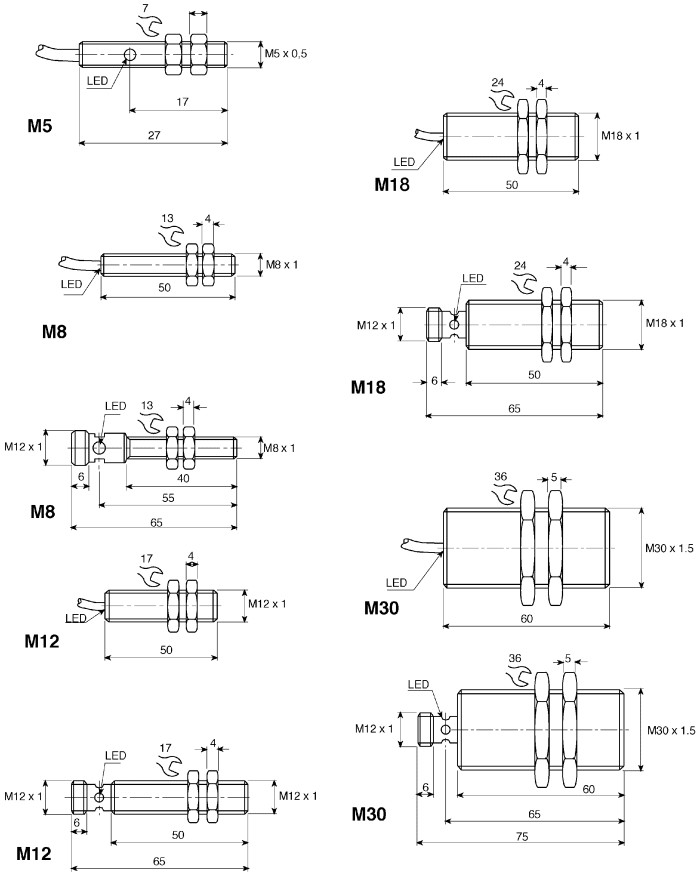

The sensor is designed for flush mounting with a shielded threaded barrel body style (M30 thread size, 50mm length, 30mm width, 30mm depth), allowing seamless integration into equipment or machinery.
It supports a PNP output type with a maximum switch frequency of 1.1 kHz, ensuring swift and accurate switching performance. Operating temperature ranges from -40°C to 85°C expand its usability across diverse industrial climates.

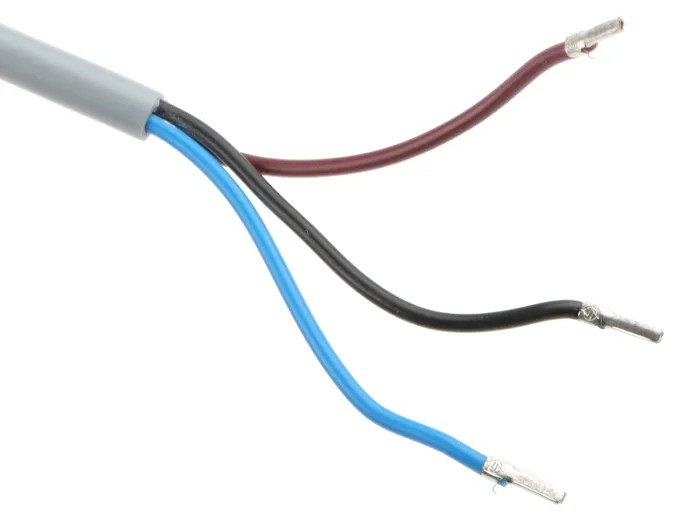

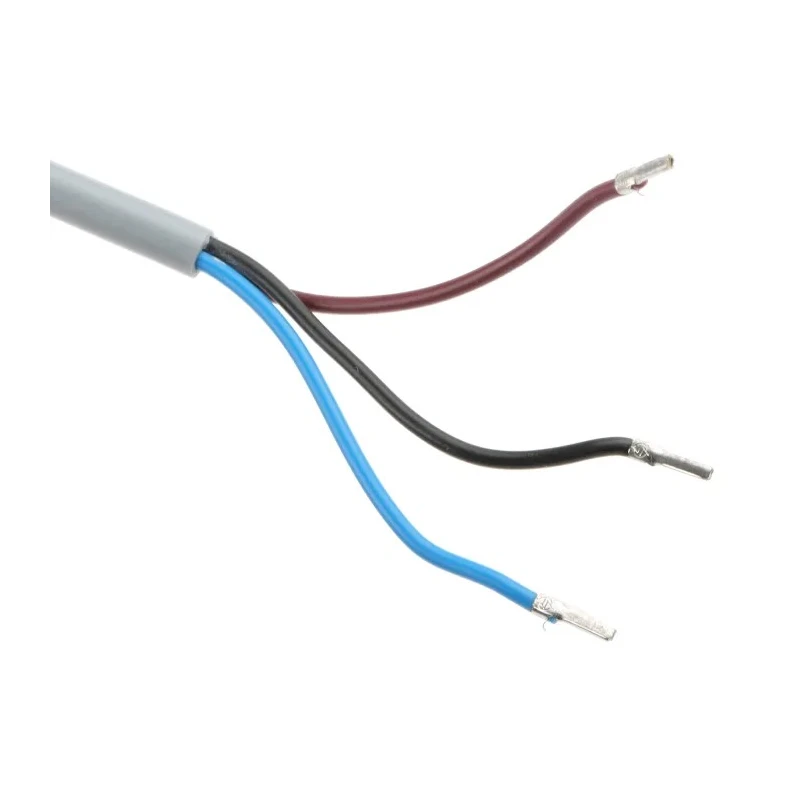

The pre-cabled terminal with 2m PVC cable enables straightforward installation and wiring. Compliant with DNV GL classification rules, it is certified for marine applications, providing reliability in shipboard industrial systems.
This sensor is widely used in industrial automation, robotics, manufacturing, material handling, and process control environments thanks to its precise detection capability and rugged design.
Equipped with shielded design for flush mounting applications. Durable brass construction with white bronze coating. IP68 rated for dust and water protection. Operates at 10 to 36V DC supply voltage. Pre-wired with 2m PVC cable for easy connection.
Short circuit and reverse polarity protection included. Compliance with marine classification standards (DNV GL). Made in Singapore with stringent quality control. Explore more Pepperl + Fuchs sensors and automation components in the EnvMart industrial catalog for enhanced control and measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this model is 100 mm, making it suitable for precise object sensing in various applications.
This sensor operates reliably within a temperature range of -40°C to 85°C, allowing it to function in diverse industrial environments.
It features a PNP output type, which is compatible with standard control systems in industrial automation.
The maximum switching frequency is 1.1 kHz, ensuring swift and accurate switching performance for industrial applications.
The sensor has an IP68 rating, providing protection against dust and water ingress, making it suitable for harsh environments.
It features a brass housing with a white bronze coating, offering durability and corrosion resistance.
This model is designed for flush mounting, utilizing a shielded threaded barrel body style with an M30 thread size.
The sensor has a length of 50 mm and a width of 30 mm, with a depth of 30 mm, allowing for compact installation.
It includes a pre-cabled terminal type with a 2m PVC cable for easy installation and wiring.
It complies with DNV GL classification rules, making it suitable for marine applications and shipboard use.
The maximum operating voltage is 36V DC, ensuring compatibility with various control systems.
This model is widely used in industrial automation, robotics, manufacturing, material handling, and process control environments due to its precise detection capability.
