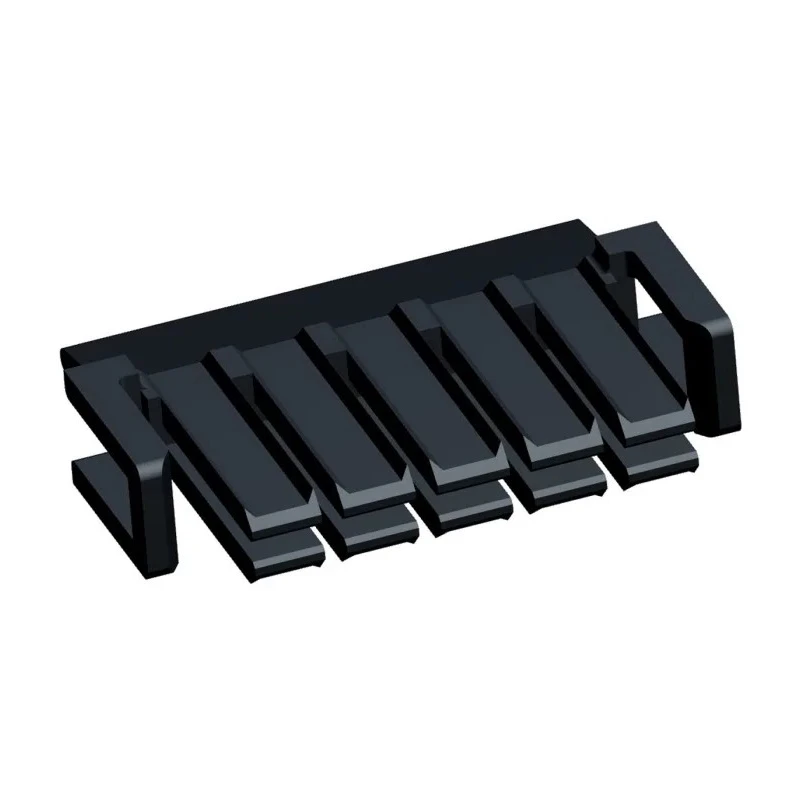

TE Connectivity Economy Power 2.5 Series Female Terminal Position Assurance Connector, 4.5A, 26 AWG Min Crimp 1-1969541-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 4.5A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | Economy Power 2.5 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Economy Power Connector |
| Contact Plating | Tin Plated |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 20AWG |
Key Features
- Designed for use with Economy Power 2.5 series connectors with 2.5mm pitch.
- Supports wire sizes from 26 AWG minimum to 20 AWG maximum for versatile applications.
- Rated for continuous current of 4.5 amperes for reliable power transmission.
- Constructed with tin-plated copper alloy contacts for corrosion resistance.
- Operates reliably within a temperature range of -55°C to 105°C.
- Crimp termination type enables secure wire connection.
- Locking latch provides tactile and audible confirmation of full engagement.
- Suitable for use in high-density PCB and wire-to-board power connector applications.
Product Description
TE Connectivity 1-1969541-0 Economy Power 2.5 Series Female Terminal Position Assurance (TPA) connector is engineered to enhance system reliability by ensuring that contacts are fully inserted and locked within the housing. This Crimp contact accessory is specifically designed for use with TE Connectivity's Economy Power 2.5 interconnection system, featuring a compact 2.5mm pitch suitable for high-density PCB layouts.
The female TPA connector is compatible with wire gauges ranging from 26 AWG minimum to 20 AWG maximum, supporting a continuous current rating of 4.5 amps. Constructed from copper alloy with tin plating, it provides excellent conductivity and corrosion resistance. The crimp termination type ensures robust mechanical and electrical connections.
Operating temperature range extends from -55° Celsius to a maximum of 105° Celsius, making it suitable for diverse industrial and commercial environments. The locking latch on top of the TPA engages securely with the connector housing nubs, preventing contact back-out caused by vibration or mechanical movement. Audible and tactile clicks confirm complete contact engagement, providing confidence during installation and maintenance.
This Terminal Position Assurance component is vital in applications requiring dependable wire-to-board and wire-to-wire connections, commonly found in electronic assemblies, industrial instruments, automation equipment, and power distribution modules. Its design facilitates ease of installation while meeting performance standards expected in demanding electrical and electronic systems.
Designed for use with Economy Power 2.5 series connectors with 2.5mm pitch. Supports wire sizes from 26 AWG minimum to 20 AWG maximum for versatile applications. Rated for continuous current of 4.5 amperes for reliable power transmission.
Constructed with tin-plated copper alloy contacts for corrosion resistance. Operates reliably within a temperature range of -55°C to 105°C. Crimp termination type enables secure wire connection. Locking latch provides tactile and audible confirmation of full engagement.
Suitable for use in high-density PCB and wire-to-board power connector applications. Explore more TE Connectivity products and components for advanced connectivity solutions at EnvMart.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a continuous current of 4.5 amperes, ensuring reliable power transmission.
This connector supports wire sizes ranging from 26 AWG minimum to 20 AWG maximum.
It operates reliably within a temperature range of -55°C to 105°C.
It features a crimp termination type, which enables a secure wire connection.
The contacts are constructed from tin-plated copper alloy, providing corrosion resistance and good conductivity.
Yes, it includes a locking latch that provides tactile and audible confirmation of full engagement, preventing contact back-out.
It is designed for use with the Economy Power 2.5 series connectors, featuring a compact 2.5mm pitch.
The country of origin for this connector is India.
It is suitable for high-density PCB and wire-to-board power connector applications, commonly used in electronic assemblies and industrial instruments.
The locking latch engages securely with the connector housing nubs, providing confidence during installation and maintenance by confirming complete contact engagement.
The dimensions are not specified in the provided data; please refer to the manufacturer's documentation for detailed measurements.
It facilitates dependable wire-to-board and wire-to-wire connections, essential for various electronic and electrical systems.
