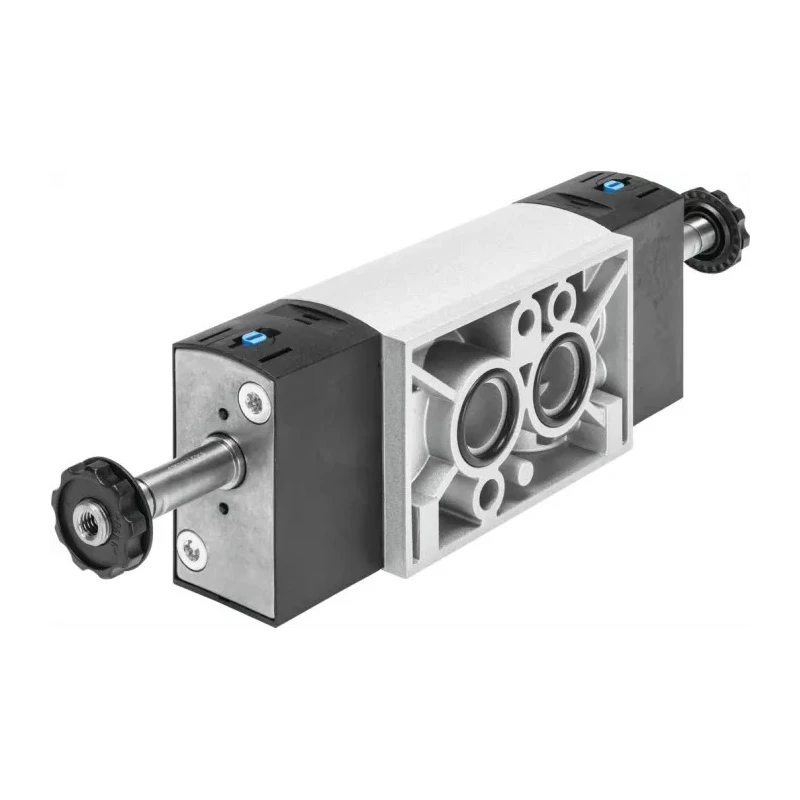

Festo Pneumatic Solenoid Valve Pilot G, VSNC Series, 5/2 Bistable, 10 bar, 1200 L/min, Aluminium Body, VSNC-F-B52-D-G14-F8
Specifications
| Country of Origin | China |
|---|---|
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 49.9mm |
| Length | 162.2mm |
| Model | VSNC-F-B52-D-G14-F8 |
| Width | 32mm |
| Mount Type | Through Hole |
| Series | VSNC |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 60°C |
| Thread Size | 1/4 in |
| Number of Positions | 2 |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -20°C |
| Actuation Type | Pilot |
| Maximum Flow Rate | 1200L/min |
| Standards/Approvals | RoHS, c UL US |
| Connection Thread Standard | G |
| Mount Pattern | NAMUR |
| Minimum Pilot Pressure | 1.5bar |
| Valve Function | 5/2 Bistable |
Key Features
- Pilot-operated solenoid valve for flexible pneumatic control.
- 5-port, 2-position bistable functionality supports double-acting actuators.
- Maximum operating pressure up to 10 bar ensures robust performance.
- High flow rate of 1200 L/min for efficient airflow management.
- Nitrile Rubber (NBR) seals for reliable leak resistance and durability.
- Wrought aluminium alloy body enables lightweight and corrosion resistance.
- Suitable for NAMUR mount configurations for easy installation.
- Operates in harsh environments with -20°C to 60°C temperature range.
Product Description
Festo VSNC-F-B52-D-G14-F8 Pneumatic Solenoid Valve is engineered for high-performance industrial automation systems requiring reliable actuator control. With its pilot-operated design, the valve offers precise and versatile pneumatic switching, making it ideal for use in process automation, manufacturing, and machinery environments where fast, consistent actuation is essential.
Featuring 5/2 bistable valve function, this model supports double-acting actuators for flexible installation and operation. Compatible with G connection thread standards and standard G 1/4" port size, it integrates seamlessly into existing pneumatic circuits. The valve's robust wrought aluminium alloy body provides durability and resistance to corrosion, while the NBR seals enhance leak protection for long-term reliability.
Designed to deliver a maximum flow rate of 1200 L/min and withstand pressures up to 10 bar, the VSNC Series adjusts efficiently to varying system demands. The through-hole mount and NAMUR pattern enable easy and secure installation, facilitating maintenance and system upgrades. With operational temperatures ranging from -20°C to 60°C, the valve can be deployed in diverse industrial environments, including both indoor and outdoor settings.
IP65 protection ensures reliable operation in dusty and wet conditions, while the double solenoid configuration enables conversion between 3/2-way and 5/2-way functionality for versatile application requirements. The ATEX certification supports safe operations in hazardous areas, ensuring compliance with strict industry standards.
Pilot-operated pneumatic control for flexible and accurate actuator switching. 5/2 bistable valve enables operation of double-acting actuators. High maximum pressure and flow rate for demanding applications. NBR seals and aluminium alloy body provide corrosion and leak resistance.
NAMUR mounting and G 1/4" thread for universal compatibility. Wide working temperature range supports varied industrial environments. IP65-rated protection for safety against dust and water ingress. Suitable for use in process automation, manufacturing, and hazardous areas.
This Festo pneumatic solenoid valve finds application in industrial automation for actuator control, process automation environments needing reliable valve actuation, and systems requiring safe operation within hazardous atmospheres. Regular maintenance with proper lubrication and cleanliness is recommended to ensure optimum performance and extended lifespan.
Explore more Pneumatic Solenoid Valves in the Festo VSNC Series and other top industrial automation components in the EnvMart catalogue.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar, making it suitable for demanding applications.
This valve has a maximum flow rate of 1200 L/min, allowing for efficient airflow management in pneumatic systems.
It operates effectively within a temperature range of -20°C to 60°C, suitable for various industrial environments.
The body is made from wrought aluminium alloy, and it features Nitrile Rubber (NBR) seals for leak resistance.
This model utilizes a through-hole mount pattern and is compatible with NAMUR mounting configurations for easy installation.
It features a 5/2 bistable valve function, which supports double-acting actuators for flexible operation.
The dimensions are 162.2 mm in length, 49.9 mm in height, and 32 mm in width.
The minimum pilot pressure required for this valve to operate is 1.5 bar.
This model complies with RoHS and c UL US standards, ensuring it meets industry regulations.
It uses pilot actuation, which allows for flexible and accurate switching of actuators.
It is suitable for applications in industrial automation, process automation, and environments requiring reliable valve actuation.
The valve features a G 1/4" connection thread standard, ensuring compatibility with existing pneumatic circuits.
