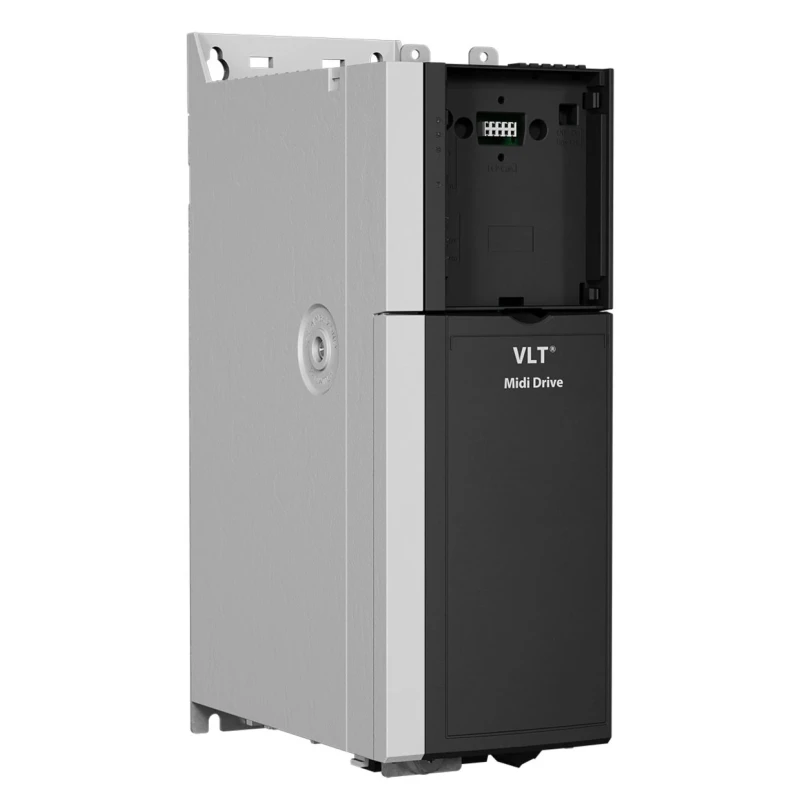

Danfoss Inverter Drive 3 kW, 3 Phase, FC280 Series, 480V, Panel Mount, IP20, Model

Danfoss 134X0701 FC280 Inverter Drive is a high-performance, panel-mounted drive solution engineered for industrial and automation applications requiring precise motor control and energy efficiency. With a rated power of 3 kW and three phase support, this drive is perfectly suited for small-to-medium machinery, pumps, fans, and conveyors operating in manufacturing, HVAC, water treatment and process industries.

The FC280 series delivers enhanced reliability and ease of installation, thanks to its compact design and panel-mount format. It operates within a supply voltage range of 380V to 480V, ensuring compatibility with global industrial standards. The maximum output current of 4.3A permits flexible integration for a wide range of induction motors.

Variable frequency drive operation up to 500Hz allows for smooth speed regulation and accurate torque control, vital for application-specific requirements. Functional safety is built in via dual channel STO (Safe Torque Off), and communication is simplified using selectable fieldbus options, including Profibus, Profinet, Ethernet/IP, CANopen, Modbus RTU and FC Protocol, together with a convenient USB port for direct PC connectivity.

Advanced inverter drive with 3 kW power rating for robust industrial control. Supports three phase operation for compatibility with industrial machinery. Panel mount form factor enables compact and secure integration into control cabinets.

Wide input voltage range from 380V to 480V with maximum output current of 4.3A. Features integrated functional safety with dual channel STO and versatile fieldbus communication options. Offers IP20 protection for standard environments and supports induction motor type.

Delivers up to 500Hz output frequency for variable speed and precision control. Overall compact dimensions: 90mm x 168mm x 272.5mm. Easy PC connection via built-in USB port for setup and configuration. Conforms to CE, UL, TUV, EMC standards for international compliance.

Additional features include integrated PID controller, programmable digital and analogue I/O, pluggable connectors, DC choke, and RFI filter. The system is delivered without a control panel, which is available as an optional accessory with LCD display in two versions for further operational flexibility and user customization.

This drive is suitable for industrial, laboratory, and commercial environments where operational efficiency, fast retrofit or new installations, and sustainable energy use are priorities. Category: Inverter Drives. Browse more Danfoss FC280 products from EnvMart for complete automation solutions.
