RS PRO TT-HVP Series Oscilloscope Probe, Voltage Type, 50 MHz Bandwidth, 39 kV Input, BNC Connector RS-HVP 2739

RS PRO RS-HVP 2739 Oscilloscope Probe is a passive, high voltage probe engineered for industrial and laboratory environments requiring safe and precise measurement of high-voltage signals. This TT-HVP Series probe supports voltages up to 39 kV ac/dc and features a wide 50 MHz bandwidth, making it ideal for oscilloscopes in both digital and analog test setups.

Designed for demanding test and measurement applications, the RS-HVP 2739 probe offers an attenuation ratio of 1000:1, enabling accurate scaling of input signals while maintaining low loading currents. Its BNC connector provides secure connection to oscilloscopes with a standard 1 MΩ input impedance. With a rise time of just 1.6 ns, this probe allows real-time analysis of high-speed transients.

Key technical specifications include high input resistance (900 MΩ), low input capacitance (2.0 pF), maximum loading current of 45 μA, and compliance to IEC61010-031:2015 safety standards. The probe also carries an array of included accessories: earth cable, crocodile clips, calibration tool, HV test tip attachment, hook and flat contact test tips, plus user manual, supporting a full spectrum of measurement scenarios.

The probe’s durable construction in black/grey coloration and 2 m cable length ensures comfortable use and reliable performance. It is certified for indoor use only and rated for humidity up to 85% RH at 35°C. Storage and operation ranges are broad, allowing temperatures from -20°C to 70°C (storage) and -10°C to 55°C (operation).

Probe type: Voltage (passive, high voltage). Bandwidth: DC ∼ 50 MHz. Input resistance: 900 MΩ. Input capacitance: 2.0 pF. Maximum common mode input voltage: 39 kV ac/dc. Connector type: BNC. Division ratio: 1000:1. Rise time: 1.6 ns.

Cable length: 2 m. Attenuation: 0.001 dB.

The RS-HVP 2739 probe can be used in electronics troubleshooting, measurement in embedded and mixed-signal design, automotive diagnostics, educational laboratories, and many other industrial, laboratory, and electronics testing scenarios.

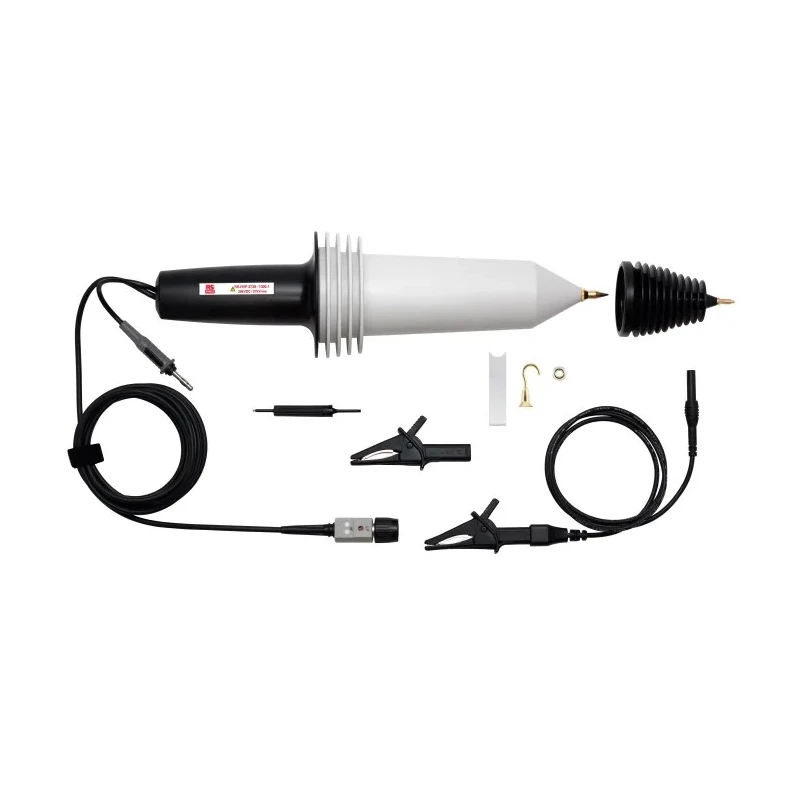

Set contains: RS-HVP 2739 High Voltage Probe, earth cable, crocodile clips, calibration tool, HV test tip attachment, hook test tip, flat contact test tip, and user manual.
