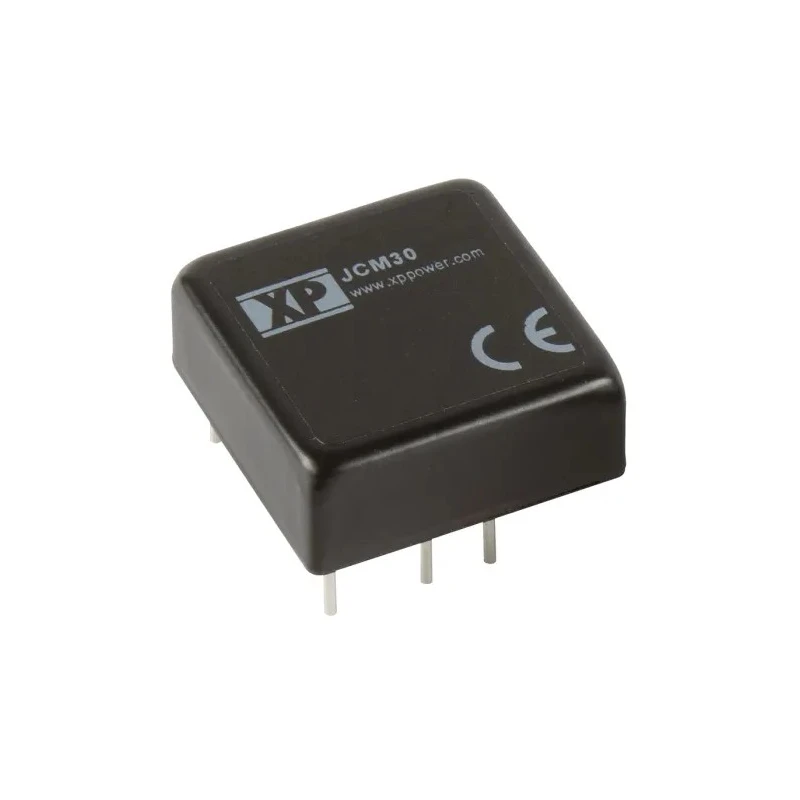

XP Power JCM30 DC/DC Converter, 12V DC, 2.5A, 9 - 18V Input, 30W, Through Hole, Max Temp 100°C
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCM30 DC/DC Converter, 12V dc/ 2 |
| Brand | XP Power |
| Efficiency | 89% |
| Length | 25.4mm |
| Model | JCM30 |
| Depth | 10.4mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JCM30 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 370000h |
| Number of outputs | 1 |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 2.5A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Delivers a regulated 12V DC output at up to 2.5A.
- Supports wide input voltage range from 9V to 18V DC.
- Compact DIP package with through hole mounting for easy integration.
- Maximum output power of 30W offers versatility for various loads.
- High efficiency up to 89% ensures minimal power loss.
- Isolation voltage rated at 1.6kV DC for reliable protection.
- Wide operating temperature range from -40°C to 100°C.
- MTBF rating of 370,000 hours supports long-lasting operation.
Product Description
XP Power JCM3012S12 DC/DC Converter delivers a dependable regulated 12V DC output at up to 2.5A, with maximum output power of 30W and wide input voltage support ranging from 9V to 18V DC. Engineered for optimal performance, it offers high efficiency (89%) and robust isolation with 1.6kV DC between input and output.
Delivers a regulated 12V DC output at up to 2.5A. Supports wide input voltage range from 9V to 18V DC. Compact DIP package with through hole mounting for easy integration. Maximum output power of 30W offers versatility for various loads.
High efficiency up to 89% ensures minimal power loss. Isolation voltage rated at 1.6kV DC for reliable protection. Wide operating temperature range from -40°C to 100°C. MTBF rating of 370,000 hours supports long-lasting operation.
Its 6-pin DIP form factor and through-hole mounting make the JCM3012S12 well-suited for standard PCB assembly in industrial, automation, and instrumentation circuits. The wide temperature range from -40°C to 100°C enables use in demanding environments, including laboratory testing, telecommunication equipment, and advanced power systems.
Engineers and designers benefit from adjustable output voltage (±1%), a 2:1 input ratio, and a single output channel for streamlined integration. Reliability is ensured by an MTBF of 370,000 hours, while the compact size (25.4 mm x 25.4 mm x 10.4 mm) accommodates space-constrained applications.
Applications span industrial electronics, factory automation, telecommunications, instrumentation, process control, and embedded systems requiring stable DC power conversion with high reliability and isolation.
Browse more DC-DC Converters and XP Power products at EnvMart for comprehensive solutions in power supply, industrial, electronics, and automation sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It delivers a regulated output voltage of 12V DC with a maximum output current of 2.5A.
The input voltage range for the JCM30 is from 9V to 18V DC.
The maximum output power is 30W, making it suitable for various loads.
It has an efficiency rating of up to 89%, ensuring minimal power loss during operation.
The isolation voltage is rated at 1.6kV DC, providing reliable protection between input and output.
It has a compact size of 25.4 mm in length, 25.4 mm in width, and 10.4 mm in depth.
The operating temperature range is from -40°C to 100°C, allowing use in demanding environments.
It features a through hole mounting type, suitable for standard PCB assembly.
The mean time between failures (MTBF) rating is 370,000 hours, indicating long-lasting operation.
This model has a single output channel.
It is suitable for applications in industrial electronics, factory automation, telecommunications, and instrumentation requiring stable DC power conversion.
The input ratio for this model is 2:1, allowing for flexible input voltage management.
