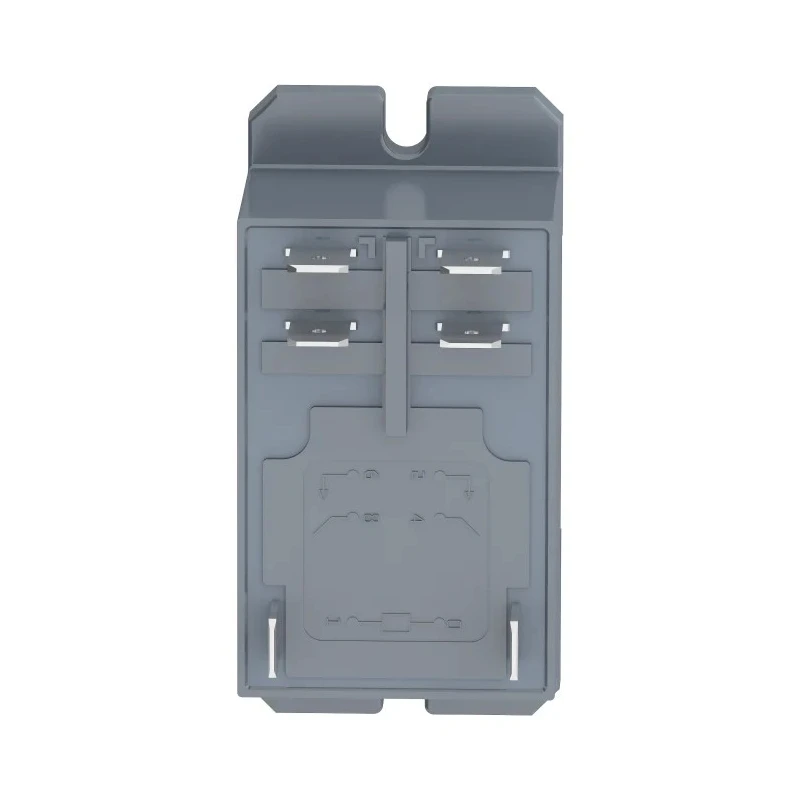

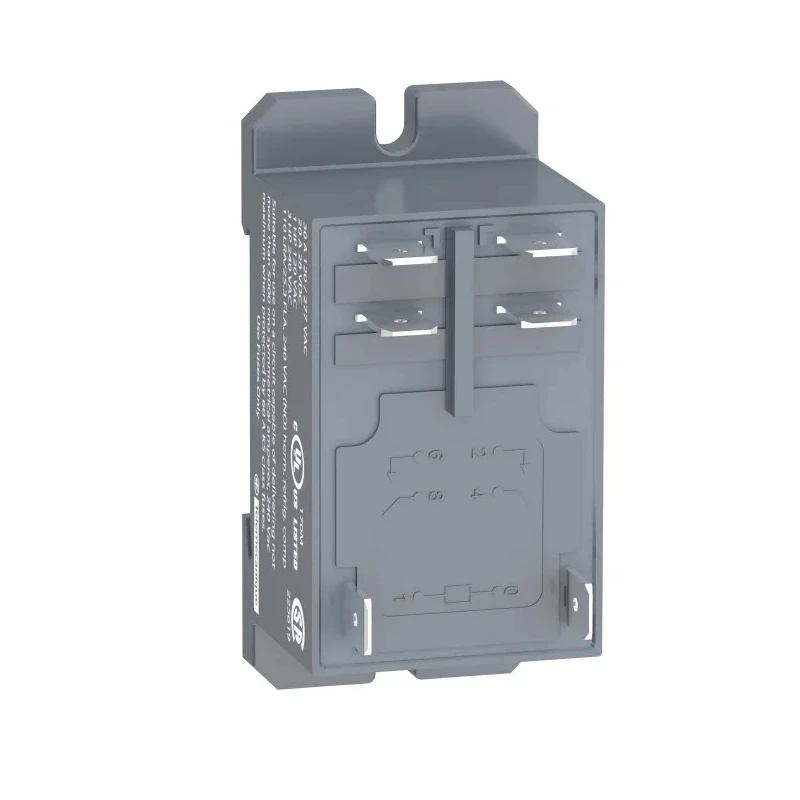

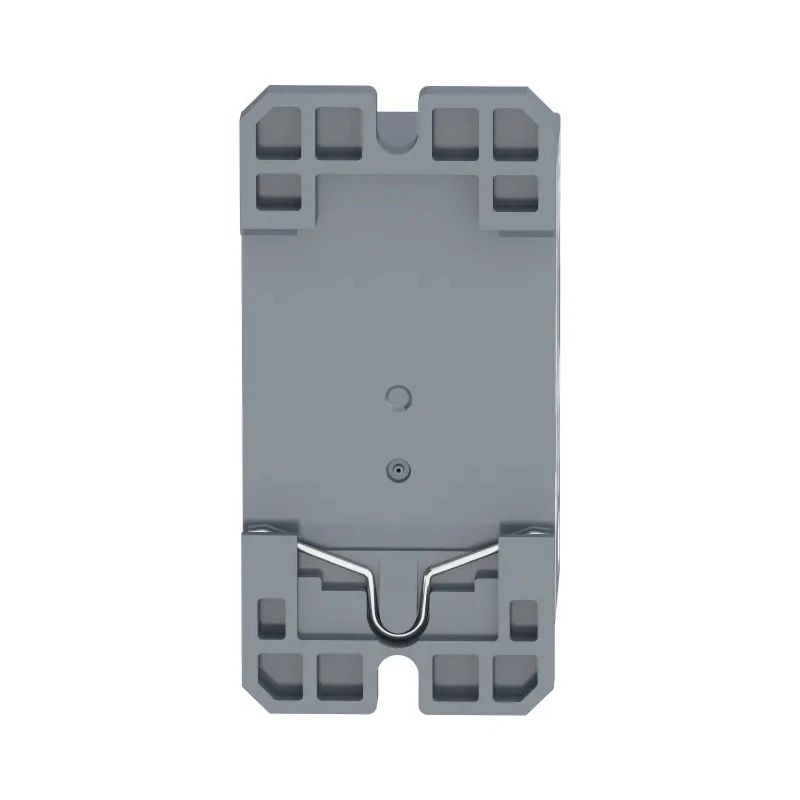

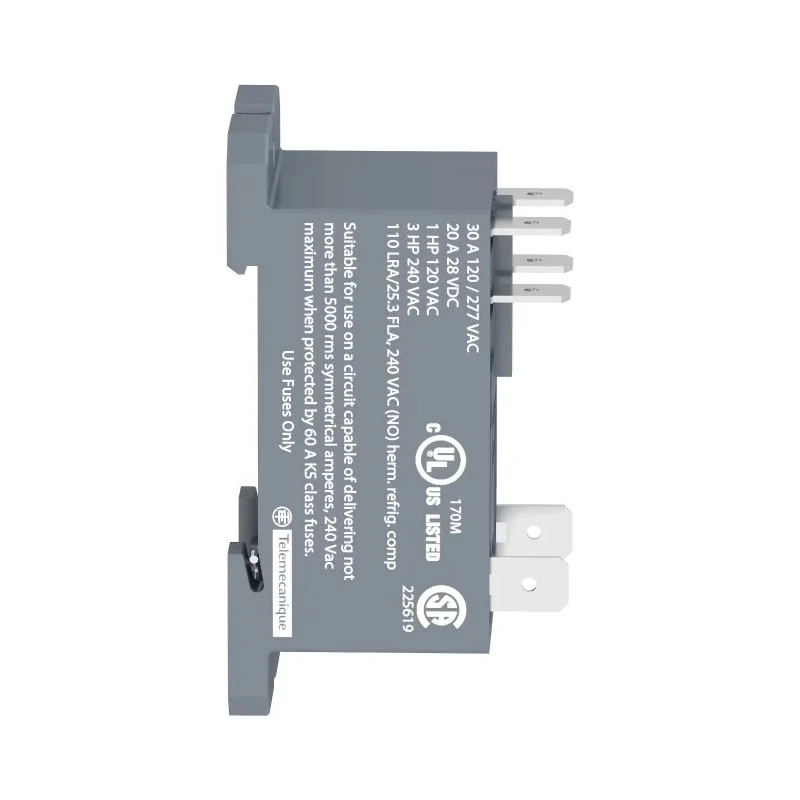

Schneider Electric DIN Rail Power Relay, 253V AC Coil, 30A DPST Plug-In Harmony RP RPF2AP7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 68.5mm |
| Length | 33.7mm |
| Model | RPF2AP7 |
| Width | 39.1mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RP |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 30A |
| Terminal type | Plug-In |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 15.6kΩ |
| Coil Voltage | 253V ac |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
Key Features
- High-performance power relay with DPST contact configuration.
- 253V AC coil voltage for robust control applications.
- Rated for 30A switching current, suitable for heavy loads.
- Plug-in design with Harmony RP series compatibility.
- DIN rail mount for quick and secure installation.
- Wide operating temperature range from -40°C to 55°C.
- Coil resistance of 15.6kΩ ensures stable operation.
- Silver alloy contact material enhances durability and conductivity.
Product Description
Schneider Electric RPF2AP7 is a premium DIN Rail Power Relay designed for industrial automation, control systems, and equipment protection. This relay features a DPST (Double Pole Single Throw) contact configuration, enabling reliable switching of high-current circuits up to 30A. The plug-in Harmony RP series relay offers a robust 253V AC coil voltage, making it ideal for demanding environments and practical for integration with programmable logic controllers (PLC) or hardwired logic systems.
High-performance relay utilizing DPST contacts to manage heavy electrical loads efficiently. 253V AC coil voltage ensures compatibility with standard industrial supply. 30A switching current supports demanding power applications.
Plug-in terminal type allows for rapid installation and easy maintenance. Harmony RP series assures reliability and consistent operation. DIN rail mounting simplifies integration into panels and enclosures. Wide operating temperature range of -40°C to 55°C suits varied environments.
Silver alloy contacts provide extended lifespan and resistance to wear. 250V AC/DC switching voltage offers flexibility for control circuits. Terminals rated for quick-connect and solid fastening, with a locating slot for panel or DIN rail mounting.
This relay is approved to CSA and CE standards, ensuring industrial-grade safety and quality compliance. Typical applications include manufacturing automation, machine protection, HVAC control, and process systems interlocking, making it suitable for construction, industrial, and commercial installations.
Its compact form factor - 33.7mm in length, 39.1mm in width, and 68.5mm in height - minimizes enclosure space requirements, allows for dense panel layouts, and increases system reliability. Designed for environments requiring frequent switching and dependable performance, the Harmony RP series plug-in relays are trusted in laboratories, factories, water treatment, and transportation systems.
Compatible with a variety of quick-connect and panel mounting options, the RPF2AP7 relay offers convenient modular expansion for control cabinets and multi-circuit installations. Browse more industrial relays and automation components from Schneider Electric and related categories on EnvMart for advanced control, modular switching, and panel solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 253V AC, making it suitable for standard industrial supply applications.
This model is rated for a maximum switching current of 30A, allowing it to handle heavy electrical loads efficiently.
The relay features a DPST (Double Pole Single Throw) contact configuration, which enables reliable switching of high-current circuits.
The operating temperature range for this unit is from -40°C to 55°C, making it suitable for varied environmental conditions.
The dimensions of the RPF2AP7 relay are 33.7mm in length, 39.1mm in width, and 68.5mm in height.
This relay uses a DIN rail mounting type, which simplifies installation in control panels and enclosures.
The contacts of this relay are made from silver alloy, which enhances durability and conductivity.
The RPF2AP7 relay is approved to CSA and CE standards, ensuring compliance with industrial-grade safety and quality.
The coil resistance of this power relay is 15.6kΩ, which ensures stable operation during use.
This relay supports a switching voltage of 250V AC and 250V DC, providing flexibility for various control circuits.
This relay is suitable for applications in manufacturing automation, machine protection, HVAC control, and process systems interlocking.
The relay features a plug-in terminal type, allowing for rapid installation and easy maintenance.
