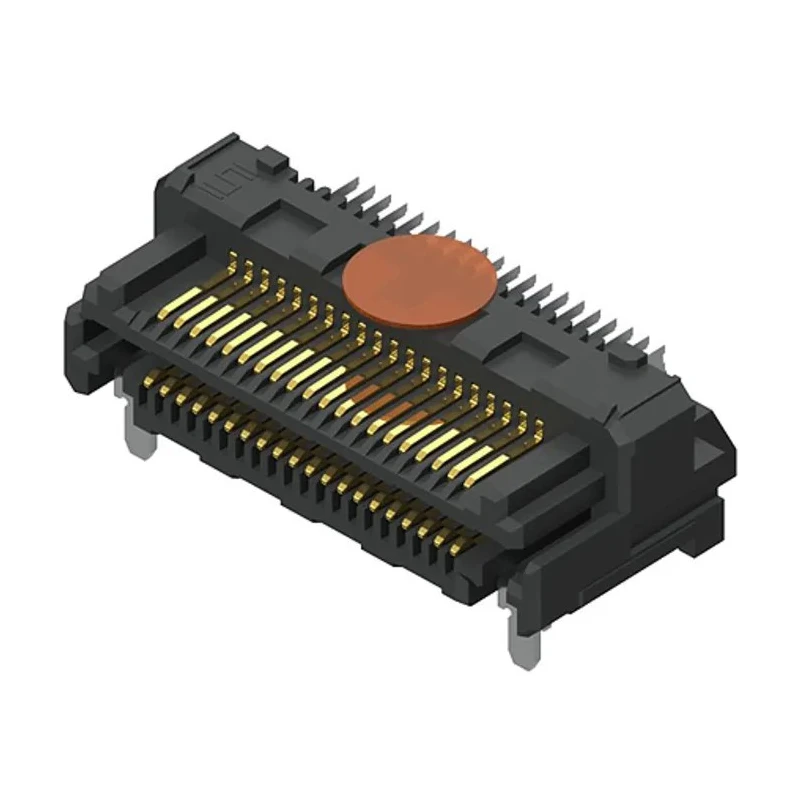

Samtec LSHM Series Right Angle Surface PCB Header, 80 Contacts, 0.5 mm Pitch, 2 Row, Shrouded LSHM-140-01-L-DH-A-N-K-TR

Samtec LSHM-140-01-L-DH-A-N-K-TR Right Angle Surface PCB Header is designed for engineers seeking high-density, reliable board-to-board connections in advanced electronic assemblies.

The shrouded structure and hermaphroditic design reduce inventory costs and simplify mating across parallel, perpendicular, and coplanar systems. Built with a liquid crystal polymer housing and gold-plated contacts, the connector ensures robust durability and high retention, delivering secure connections with an audible click feedback.

Rated for up to 1.9A current and compatible with voltages up to 160/226V AC, the header supports high-speed data transmission up to 19 Gbit/s for horizontal mount configurations. The connector is suitable for solder termination and operates reliably within a temperature range of -55°C to 125°C, making it ideal for demanding industrial, laboratory, and commercial applications.

Key features include high retention razor beam contacts for strong mating/unmating force, flexible stack heights, and compatibility with HLCD high-speed cable assemblies. The surface mount, male contact design fits seamlessly into modern PCB manufacturing processes.

Right angle surface mount header for robust PCB connections. 80 phosphor bronze contacts for high-density layouts. 0.5 mm fine-pitch design optimizes signal integrity. Dual-row, shrouded structure ensures secure mating and reduces inventory complexity.

Hermaphroditic design is compatible with HLCD cable assemblies. Liquid crystal polymer housing with gold-plated contacts for durability. Rated for up to 1.9A current and 160/226V AC voltage. Supports high-speed performance up to 19 Gbit/s in horizontal mount configurations.

Operating temperature range from -55°C to 125°C.

Applications span industrial automation, data acquisition, laboratory instrumentation, telecommunications, and commercial electronics requiring high-density board-to-board connectivity. Discover more PCB Headers and connectors in the Electronics & Electricals category at EnvMart.
