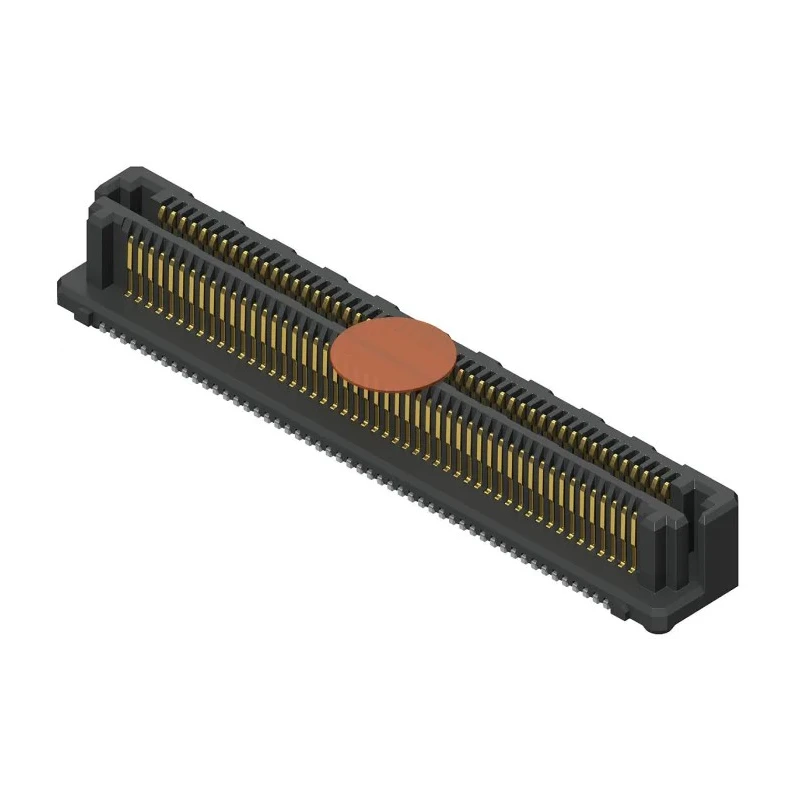

Samtec LSHM Series Straight Surface PCB Header, 40 Contacts, 0.5 mm Pitch, 2 Row, Shrouded LSHM-120-02.5-L-DV-A-N-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec LSHM Series Straight Surface PCB Header, 40 Contacts, 0.5 mm Pitch, 2 Row, Shrouded LSHM-120-02.5-L-DV-A-N-K-TR

Name: Samtec LSHM Series Straight Surface PCB Header, 40 Contacts, 0.5 mm Pitch, 2 Row, Shrouded LSHM-120-02.5-L-DV-A-N-K-TR
Brand: Samtec
SKU: 91555
Price: 5.82 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	160V
Brand	Samtec
Orientation	Straight
Current	2A
Model	LSHM-120-02.5-L-DV-A-N-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	LSHM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Offers a shrouded connector with 2 rows for enhanced durability and alignment.
Rated for high-speed performance up to 23 Gbit/s, suitable for demanding signal integrity requirements.
Features gold-plated phosphor bronze contacts for excellent conductivity and long-term reliability.
Surface mount type allows easy integration onto PCBs for parallel, perpendicular, or coplanar systems.
Liquid crystal polymer housing delivers robust mechanical properties and stability in wide temperature ranges.
Operates reliably between -55°C to 125°C for diverse industrial environments.
Supports a maximum voltage of 160V and current rating of 2A.
Mates with vertical or horizontal mounting and HLCD series high-speed cable assemblies.

Product Description

Featuring 40 contacts arranged in a compact 2-row format, this component delivers reliable board-to-board connectivity for high-speed electronic applications. With a fine pitch of 0.5 mm, it is ideal for space-constrained designs in modern electronics.

The connector system utilizes shrouded, gold-plated phosphor bronze contacts to ensure optimal electrical performance, supporting signals up to 23 Gbit/s. Its hermaphroditic self-mating design reduces inventory costs and provides audible click feedback on secure connections. Rugged razor beam contacts deliver high retention forces, meeting rigorous mating and unmating requirements.

Offers high-speed, high-density connection with up to 23 Gbit/s signal integrity. Shrouded design ensures alignment, mechanical stability, and enhanced protection for the contacts. Gold-plated contacts maximize conductivity and resistance to corrosion.

Liquid crystal polymer housing for excellent mechanical and thermal performance. Surface mount termination for streamlined PCB assembly and integration. Wide operating temperature range from -55°C to 125°C for versatile industrial usage.

Supports voltages up to 160V and current rating of 2A for standard electronic applications. Mating flexibility enables creation of stack heights from 5 mm to 12 mm and compatibility with HLCD series cable assemblies.

Applications include industrial automation, instrumentation, data communications, medical electronics, and computing systems, where compact, robust, and high-speed board-to-board connections are required. The connector is also suitable for parallel, perpendicular, and coplanar PCB configurations.

Compliance with RoHS standards ensures eco-friendly manufacturing and safety in global markets. Package includes one surface mount PCB header as specified. Explore more PCB Headers and board-to-board connector solutions from Samtec in the Electronics & Electricals category at EnvMart.
