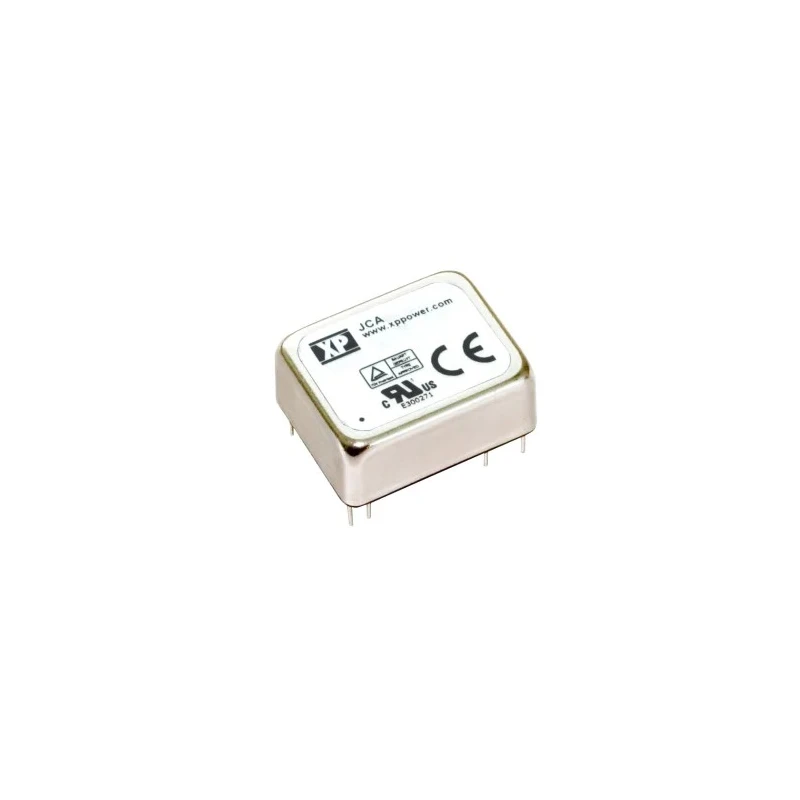

XP Power Dual Output DC/DC Converter 3W, 5V/-5V, 300mA, 9V/4.5V Input, Through Hole, Max 100°C, JCA0305D01
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCA DC/DC Converter, 5V, -5 V/ 300 mA, 9V |
| Brand | XP Power |
| Efficiency | 74% |
| Length | 25.4mm |
| Model | JCA0305D01 |
| Depth | 10mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | JCA |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 9V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 24 |
| Output Voltage 1 | 5, -5V |
| Output Current 1 | 300mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Dual output DC/DC converter providing 5V and -5V at 300mA.
- Supports a 9V DC maximum input and 4.5V minimum input voltage range.
- Through-hole mounting in a DIP package with 24 pins.
- Operating temperature range from -40°C to 100°C.
- High isolation voltage of 1.5kV DC for safety and reliability.
- Compact metal package measuring 25.4mm x 20.3mm x 10mm.
- Efficiency rated at 74% for industrial applications.
- MTBF of 2,000,000 hours ensures long service life.
Product Description
XP Power JCA0305D01 is a high-quality dual output DC/DC converter, offering 5V and -5V outputs at a maximum current of 300mA. Designed for demanding industrial and electronics applications, it ensures reliable voltage conversion and isolation.
This converter supports a wide input voltage range of 4.5V to 9V DC, with an input ratio of 2:1, enabling compatibility with varying supply voltages. It delivers up to 3W output power, housed in a compact metal DIP package for through-hole assembly.
Dual output voltages: 5V and -5V, suited for both positive and negative supply requirements. Maximum output current: 300mA per channel. Wide input voltage: 4.5V - 9V DC, ideal for industrial and embedded designs. Through-hole mounting and 24-pin DIP package simplify integration into PCBs.
Insulation voltage of 1.5kV DC provides robust isolation.
Operating temperature ranges from -40°C up to 100°C, making it suitable for applications in harsh environments or requiring stable supply under thermal stress. A high MTBF of 2,000,000 hours supports critical systems where lifetime is essential.
Efficiency is rated at 74%, optimizing energy consumption and thermal performance. The converter package measures 25.4mm in length, 20.3mm in width, and 10mm in depth, easily fitting within standard PCB layouts.
Typical applications include industrial control panels, instrumentation, signal isolation, measurement systems, and embedded electronics. The device is ideally used in scenarios where dual voltage rails are needed and space constraints demand compact power solutions.
XP Power is renowned for its reliable and innovative power supply components, providing support for design engineers and manufacturers alike. For additional product options or related accessories, visit the DC-DC Converter category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 3W, providing dual outputs of 5V and -5V at a maximum current of 300mA per channel.
This converter supports an input voltage range from 4.5V to 9V DC, making it suitable for various supply voltages.
The efficiency of this DC/DC converter is rated at 74%, optimizing energy consumption for industrial applications.
The dimensions of this unit are 25.4mm in length, 20.3mm in width, and 10mm in depth, allowing it to fit within standard PCB layouts.
It features a high isolation voltage of 1.5kV DC, ensuring safety and reliability in operation.
The operating temperature range for this converter is from -40°C to 100°C, making it suitable for harsh environments.
This model has two outputs, providing both 5V and -5V for versatile applications.
The mean time between failures (MTBF) for this unit is 2,000,000 hours, supporting critical systems where lifetime is essential.
It uses through-hole mounting in a DIP package with 24 pins, simplifying integration into PCBs.
Typical applications include industrial control panels, instrumentation, signal isolation, measurement systems, and embedded electronics.
The input ratio for this converter is 2:1, allowing compatibility with varying supply voltages.
This model comes in a compact metal DIP package, designed for efficient thermal performance and space-saving installation.
