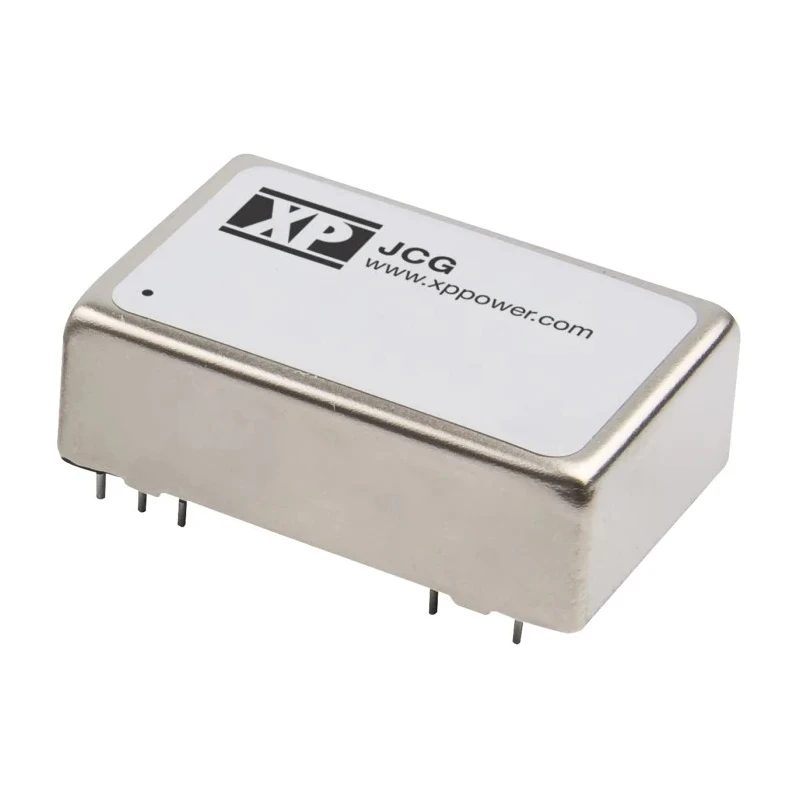

XP Power JCG1212S05 DC/DC Converter 5V DC 2.4A, 18V DC Input, 9V Input, 12W, Through Hole Mount, 100°C Max, DIP Package
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCG DC/DC Converter, 5V dc/ 2 |
| Brand | XP Power |
| Efficiency | 89% |
| Length | 31.75mm |
| Model | JCG1212S05 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCG |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Maximum Output Power | 12W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Number of Pins | 24 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 2.4A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Designed for efficient DC to DC power conversion with single output.
- Supports 5V DC output at up to 2.4A for demanding supply needs.
- Wide input voltage range from 9V to 18V DC for versatile application compatibility.
- Maximum output power of 12W ensures reliable performance.
- Compact DIP package with through hole mounting for board-level integration.
- Operating temperature range from -40°C to 100°C enhances thermal resilience.
- High isolation voltage of 1.6kV DC for safety in industrial contexts.
- RoHS compliant and reliable for long-term use with MTBF of 1,000,000 hours.
Product Description
XP Power JCG1212S05 is a robust DC/DC converter providing a single 5V DC output with a maximum current of 2.4A. It is engineered for applications requiring efficient and reliable power conversion in demanding environments.
Designed for efficient DC to DC power conversion with single output. Supports 5V DC output at up to 2.4A for demanding supply needs. Wide input voltage range from 9V to 18V DC for versatile application compatibility. Maximum output power of 12W ensures reliable performance.
Compact DIP package with through hole mounting for board-level integration. Operating temperature range from -40°C to 100°C enhances thermal resilience. High isolation voltage of 1.6kV DC for safety in industrial contexts.
RoHS compliant and reliable for long-term use with MTBF of 1,000,000 hours.
The converter features high efficiency at 89%, supporting industrial, laboratory, and commercial installations where consistent voltage regulation is critical. Its compact DIP package and through hole mounting make it suitable for PCB-based designs, while the wide operating temperature range ensures performance under varying conditions.
XP Power JCG series converters also deliver robust safety, offering 1.6kV DC isolation and RoHS compliance. This makes the JCG1212S05 ideal for applications in automation, control systems, telecommunications, and instrumentation. The converter can be relied upon for long-term operation, highlighted by its impressive MTBF of 1,000,000 hours.
Industrial deployments such as electrical equipment, process control, and laboratory systems benefit from the device's compact size, high reliability, and support for board-level integration. Its adaptable input voltage range and consistent 5V output simplify circuit design and power management.
Explore more DC-DC Converters and XP Power products on the EnvMart platform for additional solutions in power conversion and regulation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 12W.
It supports a wide input voltage range from 9V to 18V DC.
This unit provides a 5V DC output with a maximum current capacity of 2.4A.
The efficiency rating of the JCG1212S05 is 89%.
The dimensions of this model are 31.75mm in length, 20.32mm in width, and 10.16mm in depth.
It operates within a temperature range of -40°C to 100°C.
This converter features a through hole mounting type.
It has a high isolation voltage of 1.6kV DC.
This model has a single output.
The country of origin for this product is Taiwan.
It is RoHS compliant, ensuring it meets environmental standards.
The MTBF for the JCG1212S05 is 1,000,000 hours.
