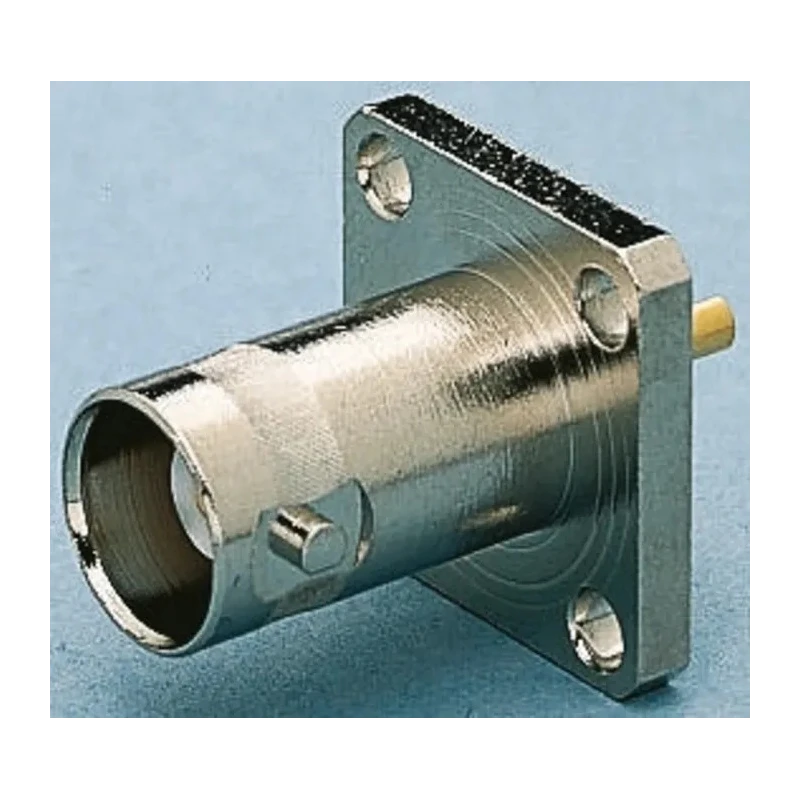

Telegartner BNC Series Coaxial Connector Flange Female, 75 Ω, Straight Solder, Nickel, Gold Plating J01003A1228
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01003A1228 |
| Mount Type | Flange |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Robust BNC connector designed for high-frequency applications up to 4 GHz.
- Precision engineering with 75 Ω impedance and straight body style for reliable signal integrity.
- Features gold-plated beryllium copper contact and nickel-plated body for excellent conductivity and corrosion resistance.
- Female connector with flange mount design and bulkhead support for secure panel installation.
- Suitable for video, data, and signal transmission in broadcast, RF, and test equipment environments.
- Operating temperature range from -65°C to 165°C enables use in demanding industrial and laboratory settings.
- IP54 rated between mated plug and jack for protection against limited dust and water ingress.
- Utilizes solder termination for stable, vibration-resistant connections.
Product Description
The Telegartner J01003A1228 is a BNC Series Coaxial Connector featuring a flange mount, female gender, 75 Ω impedance, and straight body orientation. Engineered for reliable high-frequency signal performance, this connector supports applications up to 4 GHz and is ideal for professional setups in broadcasting, measurement, and data communications.
Built with a robust nickel-plated body and gold-plated beryllium copper contact, this BNC connector delivers excellent conductivity, durability, and long-term corrosion resistance. Its precise flange mounting and bulkhead design ensure a secure panel installation, while the straight orientation facilitates straightforward routing in equipment racks and enclosures.
Solder termination provides a vibration-resistant and secure connection, making the connector suitable for mission-critical deployments in industrial, laboratory, and commercial applications. The IP54 rating between mated plug and jack ensures moderate protection against dust and moisture, further extending its usability in challenging environments.
The wide operating temperature range of -65°C to 165°C allows this connector to operate reliably under extreme ambient conditions. It is suitable for use in RF test equipment, instrumentation, video processing, data communications, and signal transmission requirements that demand consistent impedance matching and minimum signal loss.
Impedance rated at 75 Ω for precise transmission of signals with minimal reflection. Nickel-plated body and gold-plated contact ensure exceptional electrical performance and durability. Flange type panel mount with bulkhead support for easy installation and mechanical stability.
PTFE insulator and bayonet coupling mechanism make for secure, reliable engagement and disengagement. Ideal for RF, laboratory, test & measurement, broadcasting, and commercial electronic applications. Meets industry standards for BNC connectors and designed for normal polarity with standard size.
Set up your measurement, transmission, or RF system with confidence by choosing the Telegartner J01003A1228 BNC Flange Coaxial Connector for dependable signal performance. Explore more Telegartner and Coaxial Connector products in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this connector is 4 GHz, making it suitable for high-frequency applications.
This model has an impedance rating of 75 Ω, which is ideal for precise signal transmission with minimal reflection.
It utilizes solder termination, providing stable and vibration-resistant connections for reliable performance.
The contact is made from beryllium copper alloy and features gold plating, ensuring excellent conductivity and corrosion resistance.
The operating temperature range for this connector is from -65°C to 165°C, allowing it to function in extreme conditions.
The connector features a flange mount design with bulkhead support, ensuring secure installation on panels.
The body of this connector is nickel-plated, which enhances its durability and corrosion resistance.
This model is a female connector, suitable for various applications requiring a BNC connection.
It is suitable for video, data, and signal transmission in broadcast, RF, and test equipment environments.
This connector has a straight orientation, facilitating straightforward routing in equipment racks and enclosures.
The connector has an IP54 rating between mated plug and jack, providing protection against limited dust and water ingress.
This connector is manufactured in Germany, ensuring adherence to high-quality standards.
