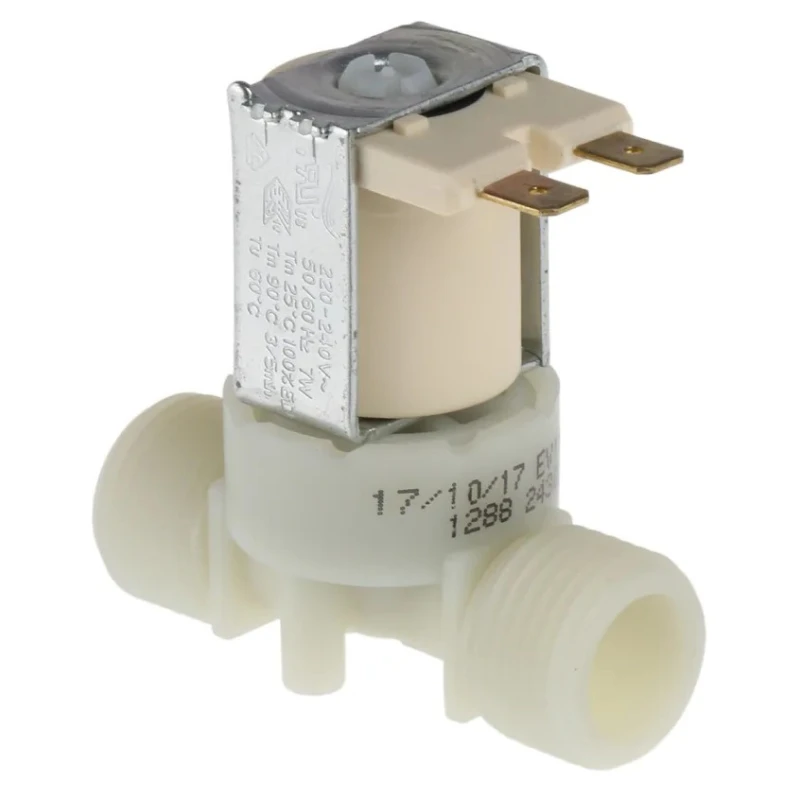

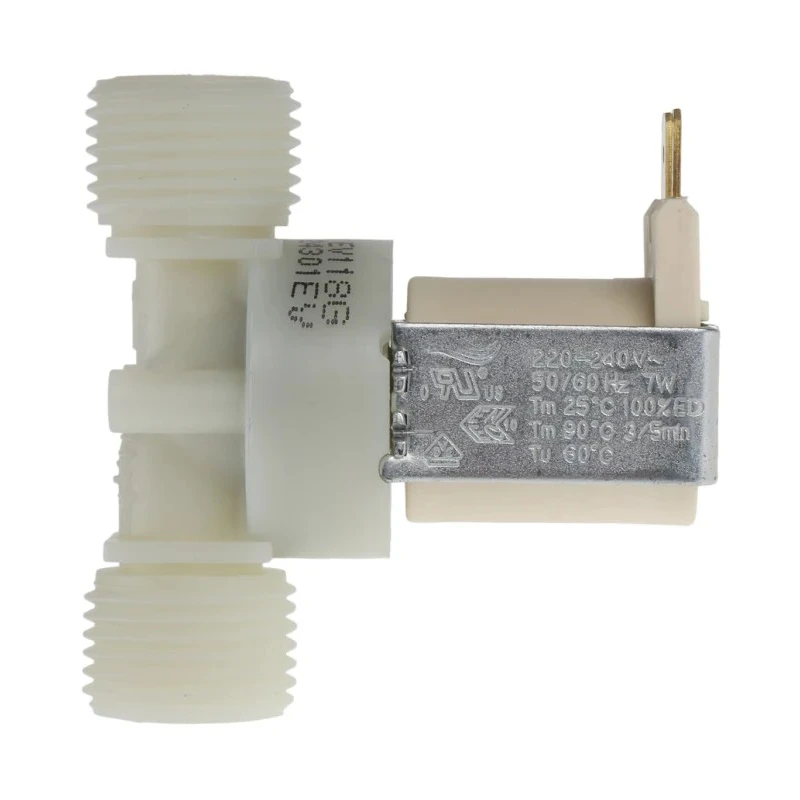

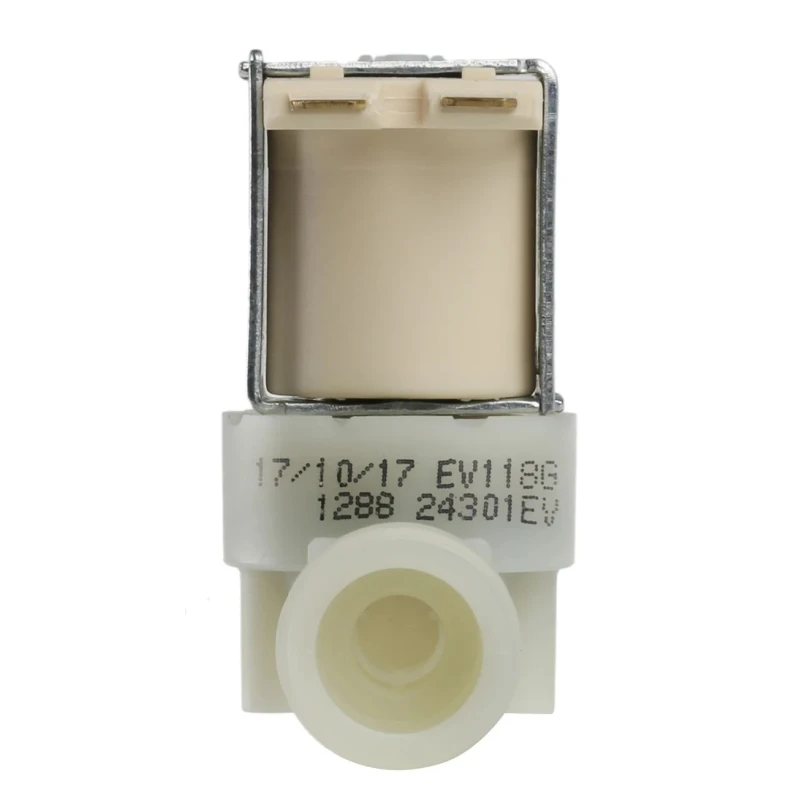

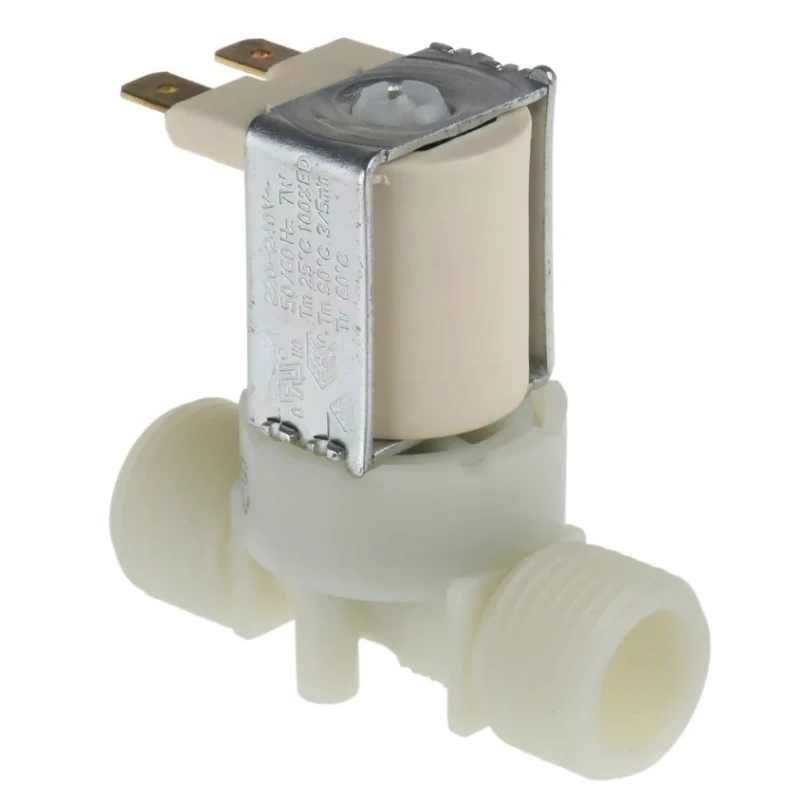

RS PRO Solenoid Valve 2 Port NC Nylon Body 31.8mm Orifice Diameter 10 bar Max Pressure 240V AC 4W Power 72004

RS PRO 72004 Solenoid Valve is a high-quality, industrial-grade 2 Port Normally Closed solenoid valve with a sturdy nylon body and 31.8mm orifice diameter, designed to handle water at maximum operating pressures of up to 10 bar. It operates at 240V AC with a power consumption of 4 Watts, making it suitable for a wide range of fluid control applications.

This valve is continuously rated for fluid temperatures below 25°C, ambient temperatures below 60°C, and flow rates above 5 L/min. For fluid temperatures up to 90°C, it requires a duty cycle of 40%. It features spade coil terminals sized 1/4 inch for secure electrical connections. The maximum opening and closing times are 3 and 5 minutes respectively, ensuring reliable operation.

The valve’s compact and robust nylon body construction offers resistance to corrosion and mechanical wear, making it an ideal choice for water pressure control ranging from 0.2 bar to 10 bar. It is engineered for industrial, laboratory, HVAC, refrigeration, and commercial water handling systems, including hand washers and automatic tap systems.

The solenoid coil is wound to allow voltage to pass bi-directionally, and the valve operation is clearly indicated by schematic diagrams typical for 2/2-way valves, where the coil's energized state controls the valve opening, and a spring mechanism returns it to the normally closed position when de-energized.

This valve does not carry specific hazardous area certifications and conforms to basic industry standards. It is suitable for most gas and fluid handling applications where precise flow control is required without specialized approvals.

Constructed with nylon body material for durability and corrosion resistance. Features a 31.8mm orifice diameter allowing efficient fluid flow. Designed for water applications with a maximum operating pressure of 10 bar.

Operates continuously under specified temperature and flow rate conditions. Power consumption is a low 4 Watts for energy efficiency. Spade coil terminals measuring 1/4 inch for reliable electrical connections. Maximum opening time is 3 minutes and maximum closing time is 5 minutes.

Suitable for hand washers, refrigeration equipment, and automatic tap systems. Compact design suitable for various gas and fluid handling applications. Valve is energized to switch from normally closed position ensuring controlled fluid flow.

This Solenoid Valve is a reliable component for fluid power and plumbing installations in industrial, commercial, and HVAC systems, enabling precise control over liquid flow and pressure. EnvMart offers comprehensive listings of high-quality valves like the RS PRO 72004 for professional use.
